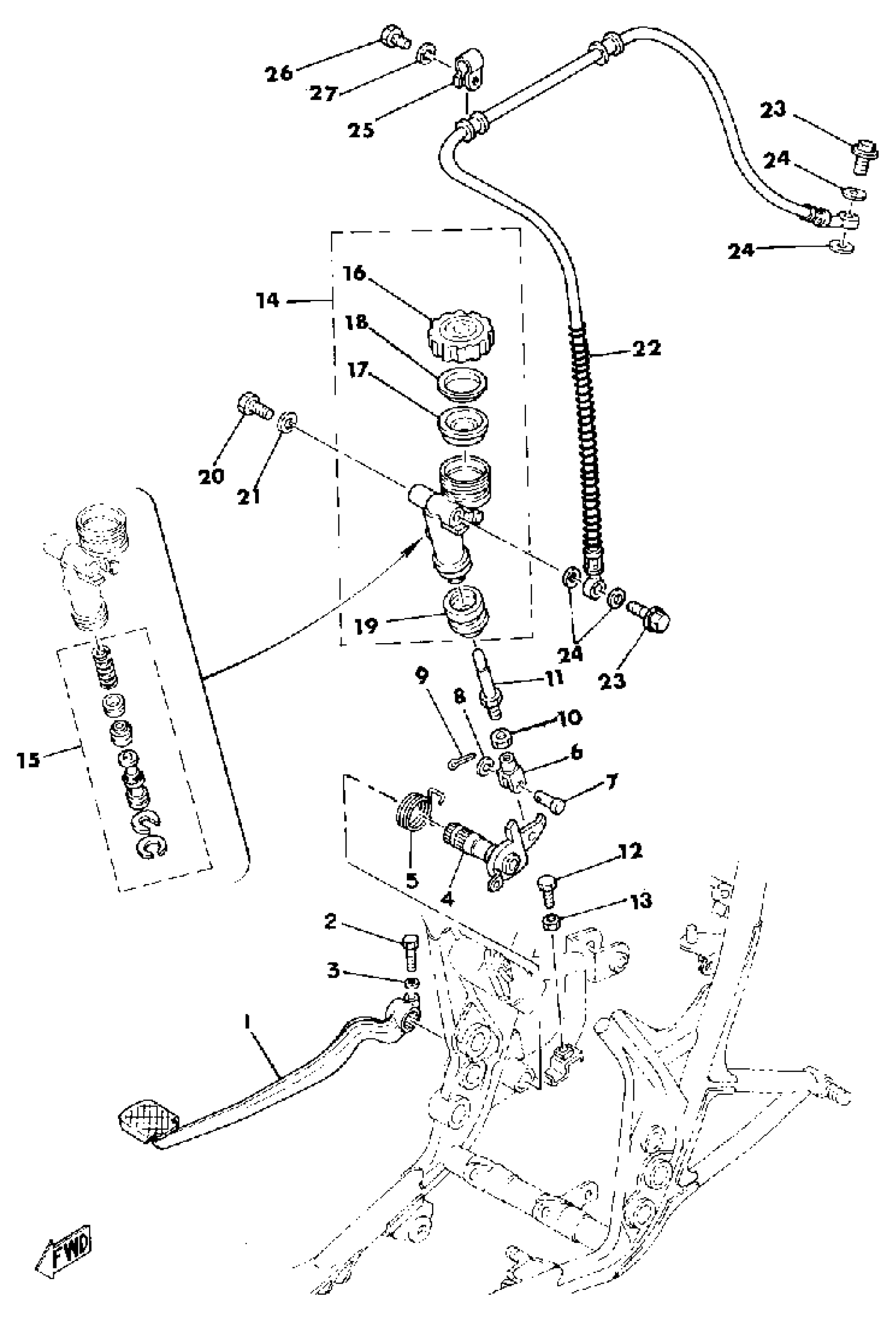

Yamaha SR500E (SR500E) 1978 BRAKE PEDAL - REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

3HT-27211-00-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

(2J2-27212-02-00)

Unavailable

5

SPRING, TORSION

90508-40364-00

Unavailable

6

JOINT

47X-27222-00-00

Unavailable

7

PIN W/HOLE 307181180000

90240-08013-00

$8.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

PIN, COTTER

91490-16020-00

Unavailable

10

. NUT

95380-08700-00

Unavailable

11

ROD, BRAKE

1J7-27231-00-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

NUT(650)

95380-06700-00

$8.49

14

MSTR CYLINDER ASSEMBLY

(2J2-25850-50-00)

Unavailable

15

. CYLINDER KIT, MASTER

1U4-W0042-50-00

Unavailable

16

CAP, RESERVOIR

(2J2-25852-50-00)

Unavailable

17

DIAPHRAGM RESERVOR

(2J2-25854-50-00)

Unavailable

18

BUSHING, DIAPHRAGM

2J2-25855-50-00

Unavailable

19

. BOOT, MASTER CYLINDER

1J3-25862-50-00

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

HOSE, BRAKE

2J2-25874-00-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable

25

CLAMP 1

90461-08031-00

Unavailable

26

BOLT (661)

97013-06012-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable
