SHROUD

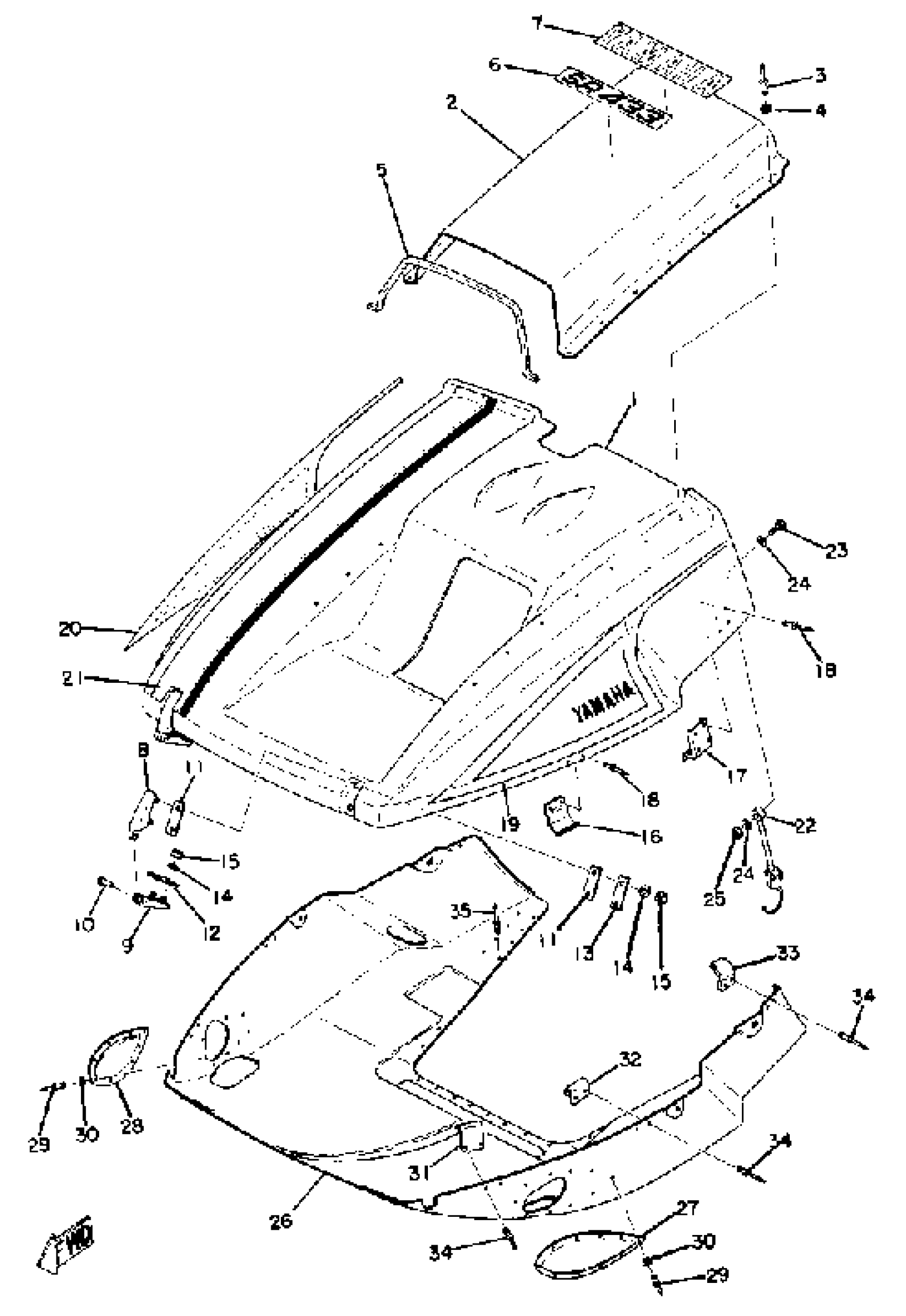

Yamaha SR433C 1973 SHROUD Diagram
#
1
SHROUD
(857-77111-00-00)
Unavailable
2
LOUVER 1
(857-77131-00-00)
Unavailable
3
RIVET, BLIND (8K1)
90267-40076-00
$8.49
4
WASHER
90201-04015-00
Unavailable
5
TRIM 3
(856-77167-00-00)
Unavailable
6
EMBLEM 3
857-77143-00-00
Unavailable
7
EMBLEM 2
856-77142-00-00
Unavailable
8
HINGE 1
(856-77145-00-00)
Unavailable
9
HINGE 3
856-77147-00-00
Unavailable
10
PIN
90243-05003-00
Unavailable
11
DAMPER 1
(856-77198-00-00)
Unavailable
12
DAMPER 2
(856-77199-00-00)
Unavailable
13
PLATE, BACK UP 1
(856-77153-00-00)
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT, NYLON
95707-06300-00
$3.50
16
STAY 3
(856-77127-00-00)
Unavailable
17
EMBLEM 2
856-77142-00-00
Unavailable
18
RIVET, BLIND (8K1)
90267-40076-00
$8.49
19
ORNAMENT 1
856-77163-00-00
Unavailable
20
ORNAMENT 2
856-77164-00-00
Unavailable
21
ORNAMENT 3
856-77169-00-00
Unavailable
22
LATCH ASSEMBLY
856-77170-00-00
Unavailable
23
BOLT(JF7)
97080-06030-00
Unavailable
24
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
25
NUT, NYLON
95707-06300-00
$3.50
26
HOOD 1
(856-77121-00-00)
Unavailable
27
LOUVER 3
(856-77133-00-00)
Unavailable
28
LOUVER 4
(856-77134-00-00)
Unavailable
29
RIVET, BLIND (J10)
90267-40077-00
Unavailable
30
WASHER
90201-04015-00
Unavailable
31
GUIDE 2
(856-77124-00-00)
Unavailable
32
STAY 1
(856-77125-00-00)
Unavailable
33
GUIDE 1
(856-77123-00-00)
Unavailable
34
RIVET, BLIND (8K1)
90267-40076-00
$8.49
35
RIVET, BLIND
90267-489UJ-00
Unavailable
