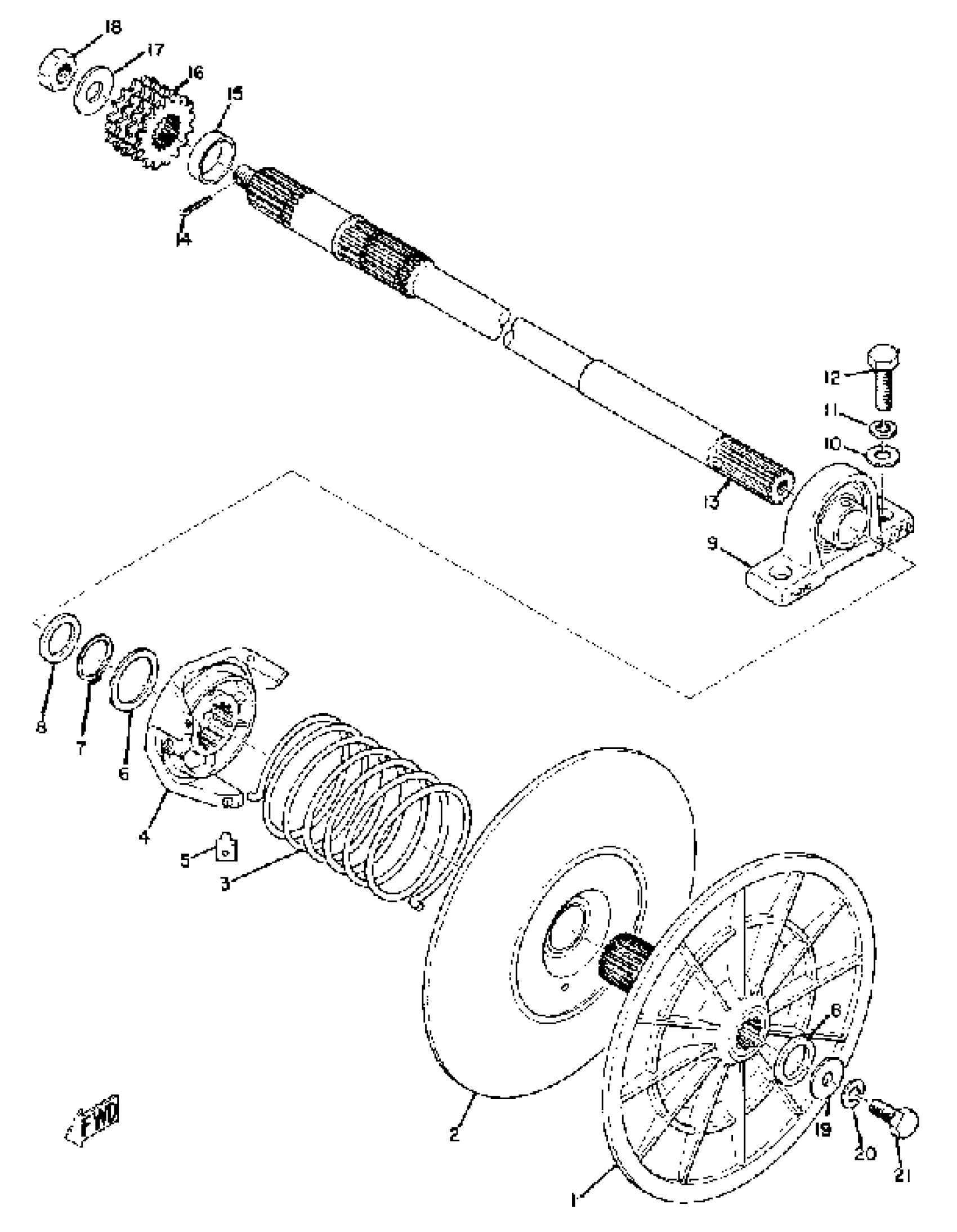

Yamaha SR433C 1973 SECONDARY SHEAVE Diagram

#

Description
Price

1

SEC FXD SHV

(856-17660-00-00)

Unavailable

2

SPRING, COMPRESSION

(90501-50169-00)

Unavailable

3

SPRING, TORSION

(90508-50082-00)

Unavailable

3

SPRING, TORSION (856-17683-00)

90508-50210-00

Unavailable

4

SEAT, SEC SPRING

(856-17684-00-00)

Unavailable

5

SHOE, RAMP

801-17688-10-00

Unavailable

6

SHIM (856-17687-00)

90564-34003-00

Unavailable

8

COLLAR, DISTANCE 1

(856-17685-00-10)

Unavailable

8

COLLAR, DISTANCE 1

856-17685-00-20

Unavailable

8

COLLAR, DISTANCE 1

(856-17685-00-50)

Unavailable

9

BEARING HSNG ASSEMBLY

(856-47630-00-00)

Unavailable

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

BOLT(N02)

97070-10035-00

$14.99

13

SHAFT, SECONDARY

(856-17681-01-00)

Unavailable

14

PIN, COTTER

91490-30030-00

Unavailable

15

COLLAR

(90387-30002-00)

Unavailable

16

SPRKT, CHAIN DR 15T

(856-17682-50-00)

Unavailable

16

SPRKT, CHAIN DR 16T

(856-17682-60-00)

Unavailable

16

SPRKT, CHAIN DR 17T

(856-17682-70-00)

Unavailable

16

SPRKT, CHAIN DR 18T

(856-17682-80-00)

Unavailable

16

SPRKT, CHAIN DR 19T

(856-17682-90-00)

Unavailable

16

SPROCKET, CHAIN DR

(856-17693-00-00)

Unavailable

16

SPRING, COMPRESSION

(90501-50169-00)

Unavailable

17

WASHER, PLATE

90201-14319-00

Unavailable

18

NUT(6TC)

95337-14600-00

Unavailable

19

WASHER, PLATE (856)

90201-10321-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

21

BOLT(6TD)

97017-10025-00

Unavailable
