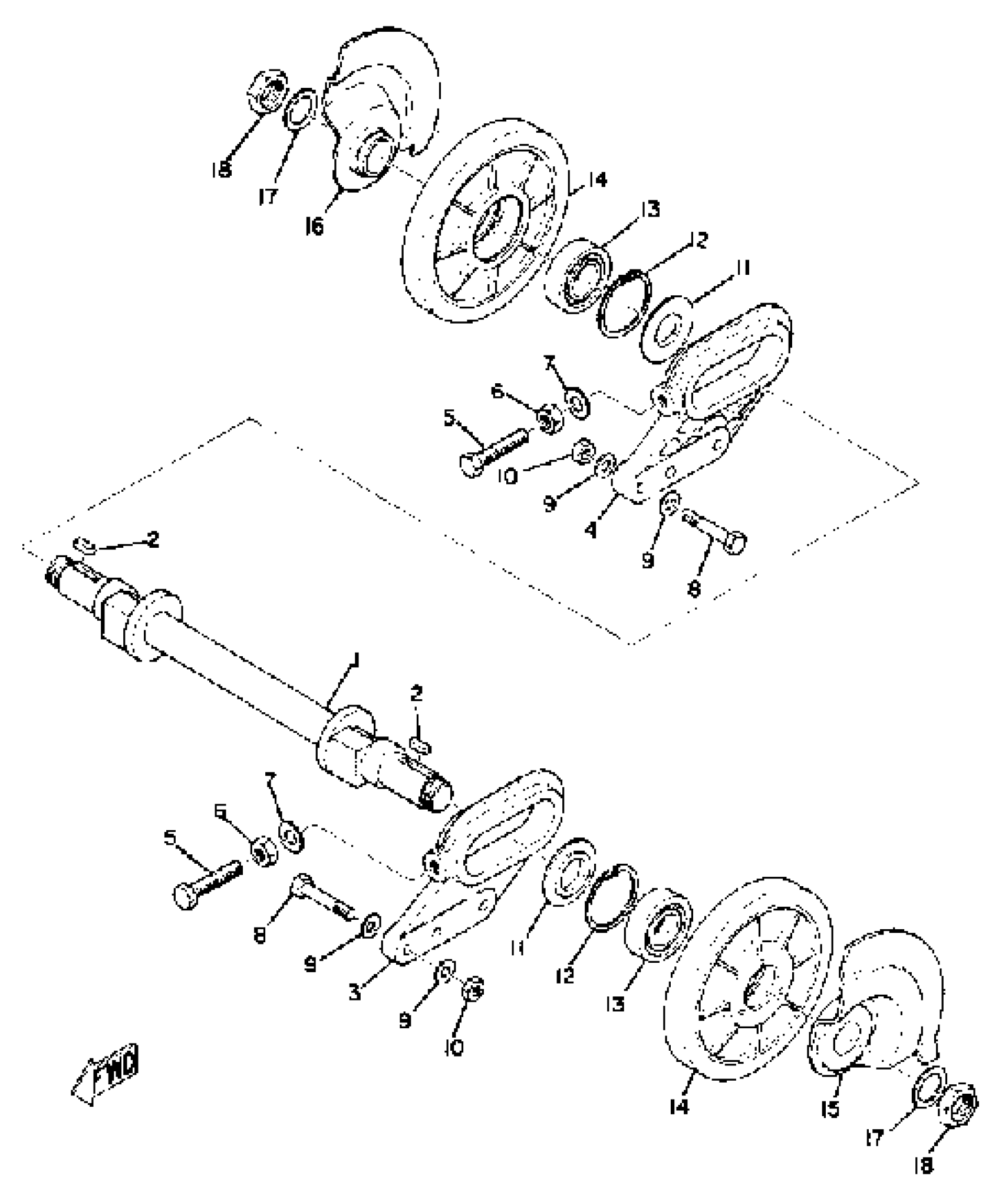

Yamaha SR433C 1973 REAR AXLE Diagram

#

Description
Price

1

REAR AXLE

(856-47520-00-00)

Unavailable

2

KEY, STRAIGHT

90282-05001-00

$9.49

3

SLIDER 1

(856-47441-00-00)

Unavailable

4

SLIDER 2

(856-47442-00-00)

Unavailable

5

BOLT

(90101-10124-00)

Unavailable

6

NUT(3BM)

95314-10600-00

$2.39

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

8

BOLT, HEXAGON

97013-08050-00

Unavailable

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

11

PLATE

(856-47519-00-00)

Unavailable

12

CIRCLIP(26H)

99009-52500-00

$12.49

13

BEARING

93306-20509-00

Unavailable

14

WHEEL, GUIDE 2

(856-47535-00-00)

Unavailable

15

ARM, REAR PIVOT 1

(856-47361-00-00)

Unavailable

16

ARM, REAR PIVOT 2

(856-47362-00-00)

Unavailable

17

WASHER 810475810000

90208-22001-00

Unavailable

18

NUT (821-47579-00)

90170-22094-00

Unavailable
