1973 Yamaha SR433C Engine Bracket Diagram

← All diagrams

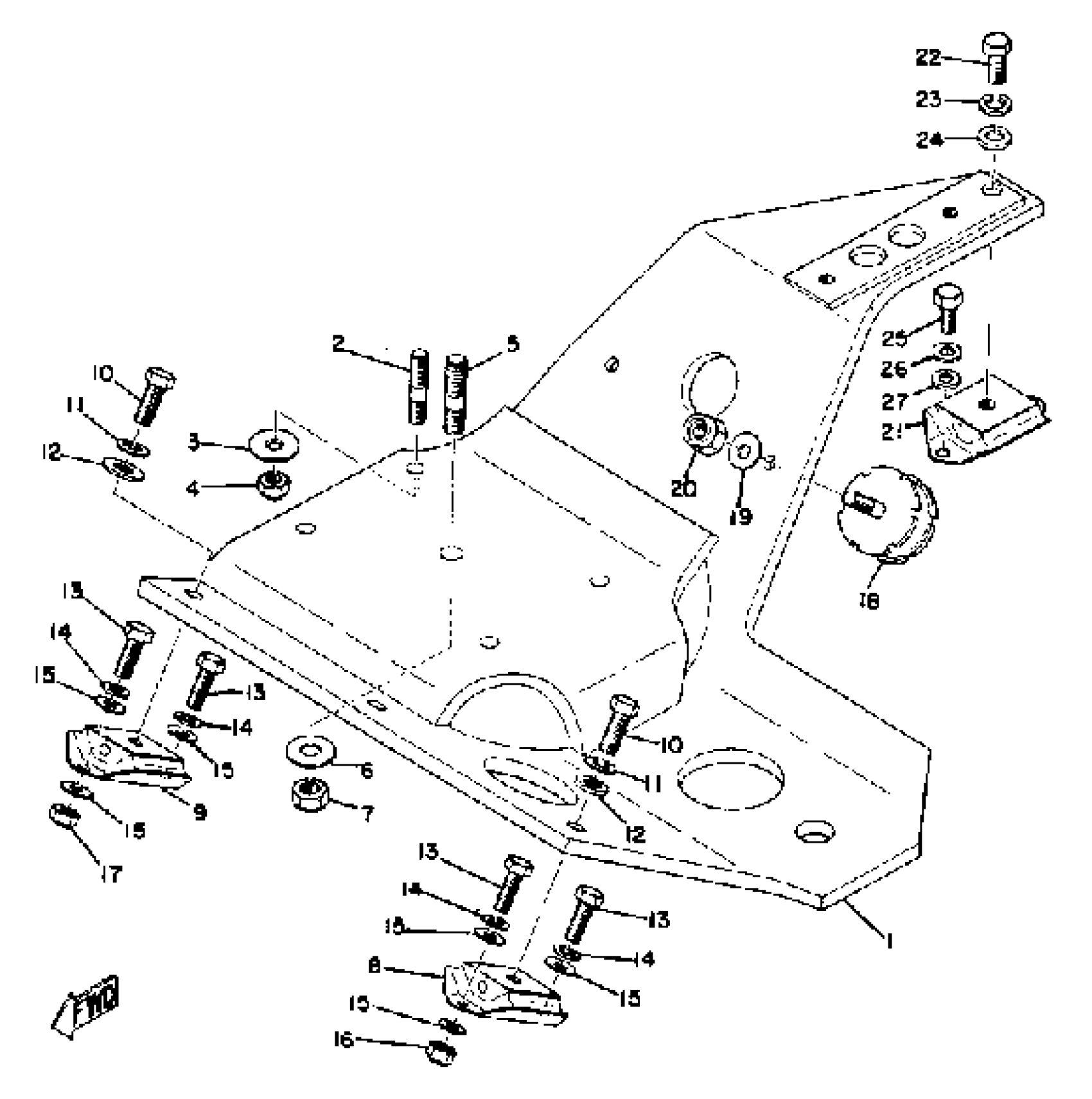

Find the part on the Engine Bracket diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(857-21411-00-00)

1
Out of stock

2

BOLT, STUD

90116-10132-00

1
Out of stock

3

WASHER, PLATE

90201-10144-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

5

BOLT, STUD

(90116-12133-00)

1
Out of stock

6

WASHER (856)

90201-12317-00

—

$4.15

In stock

7

NUT, SPEC''L SHAPE

90179-12002-00

1
Out of stock

8

DAMPER, RUBBER 1

(856-21485-00-00)

1
Out of stock

9

DAMPER, RUBBER 1

(857-21485-00-00)

1
Out of stock

10

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock

13

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

NUT(6L2)

95333-08600-00

—

$3.20

In stock

17

NUT, U

95617-08100-00

—

$6.78

In stock

18

DAMPER 2

857-21486-00-00

1
Out of stock

19

—

$3.00

In stock

20

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

21

DAMPER, RUBBER 1

(856-21485-00-00)

1
Out of stock

22

BOLT

(90101-10057-00)

1
Out of stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

24

—

$3.00

In stock

25

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
