1973 Yamaha SR433C Crankcase - Cylinder Diagram

← All diagrams

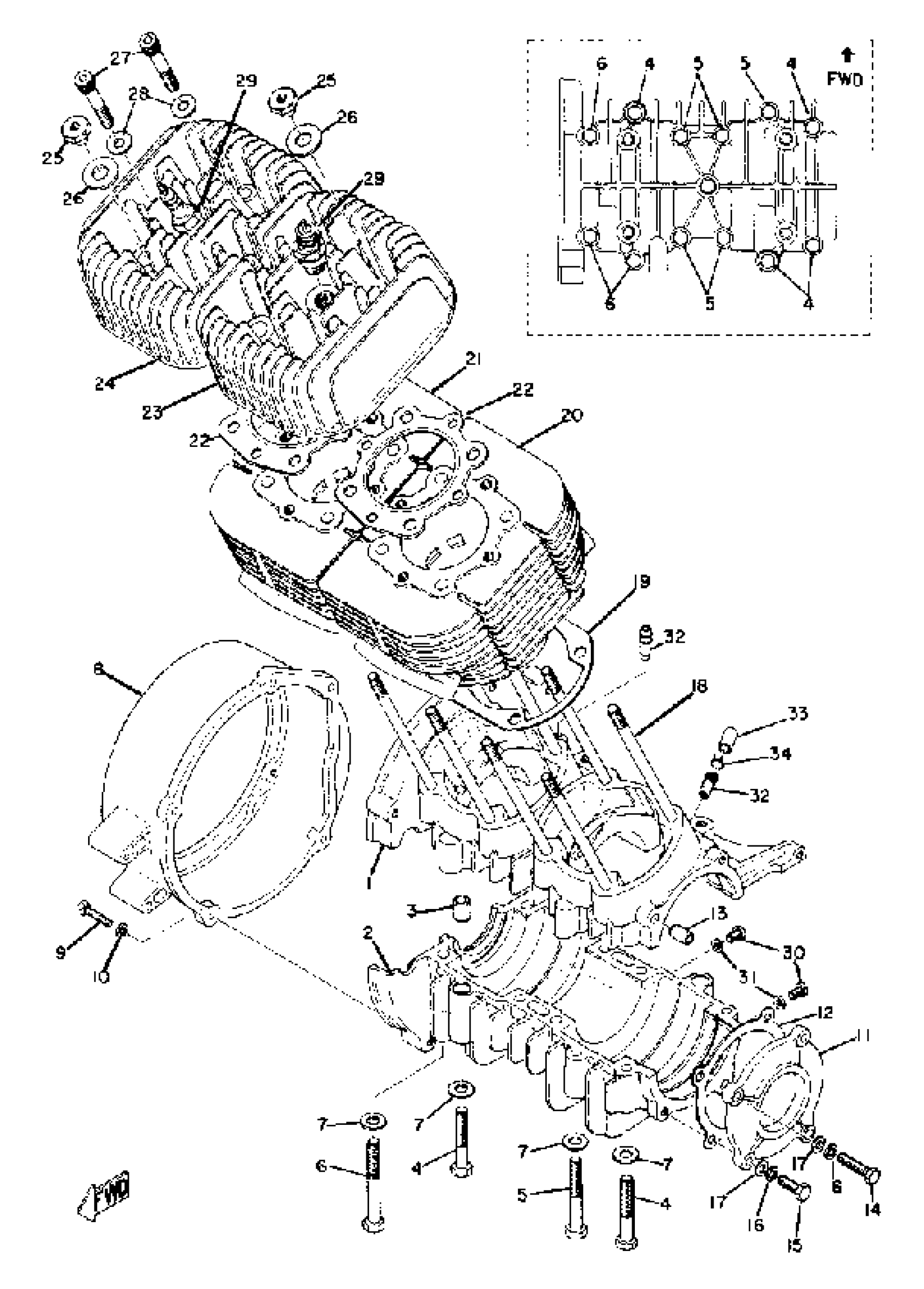

Find the part on the Crankcase - Cylinder diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(857-15100-00-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

5

BOLT (663)

97013-08060-00

1

$3.25

In stock

6

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

NO LONGER AVAILABLE

829-15421-00-00

1
Out of stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

HOUSING, OIL SEAL

(857-15396-00-00)

1
Out of stock

12

GASKET, O/PMP CVR 1

821-15456-00-00

1
Out of stock

13

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

14

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

15

BOLT(7U8)

97080-06020-00

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

BOLT, STUD

(90116-08077-00)

1
Out of stock

19

GASKET, CYLINDER

857-11351-09-00

—

$3.62

In stock

20

CYLINDER 1

(857-11311-00-00)

1
Out of stock

21

CYLINDER 2

(857-11321-00-00)

1
Out of stock

22

GASKET, CYL HEAD 1

828-11181-09-00

1
Out of stock

23

HEAD, CYLINDER 1

(857-11111-00-00)

1
Out of stock

24

NO LONGER AVAILABLE

857-11121-00-00

1
Out of stock

25

NUT, SPEC''L SHAPE

(90179-08092-00)

1
Out of stock

26

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

27

BOLT, SOCKET

91317-08050-00

—

$6.17

In stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

1
Out of stock

29

CHAMPION N3G 10PK

(CMP-N3G00-00-00)

1
Out of stock

29

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

1
Out of stock

30

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

31

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

32

JOINT, BREATHER

J38-11116-00-00

—

$2.77

In stock

33

CAP, BLIND

807-24462-09-00

1
Out of stock

34

CLIP

90467-090A2-00

—

$2.51

In stock
