CARBURETOR

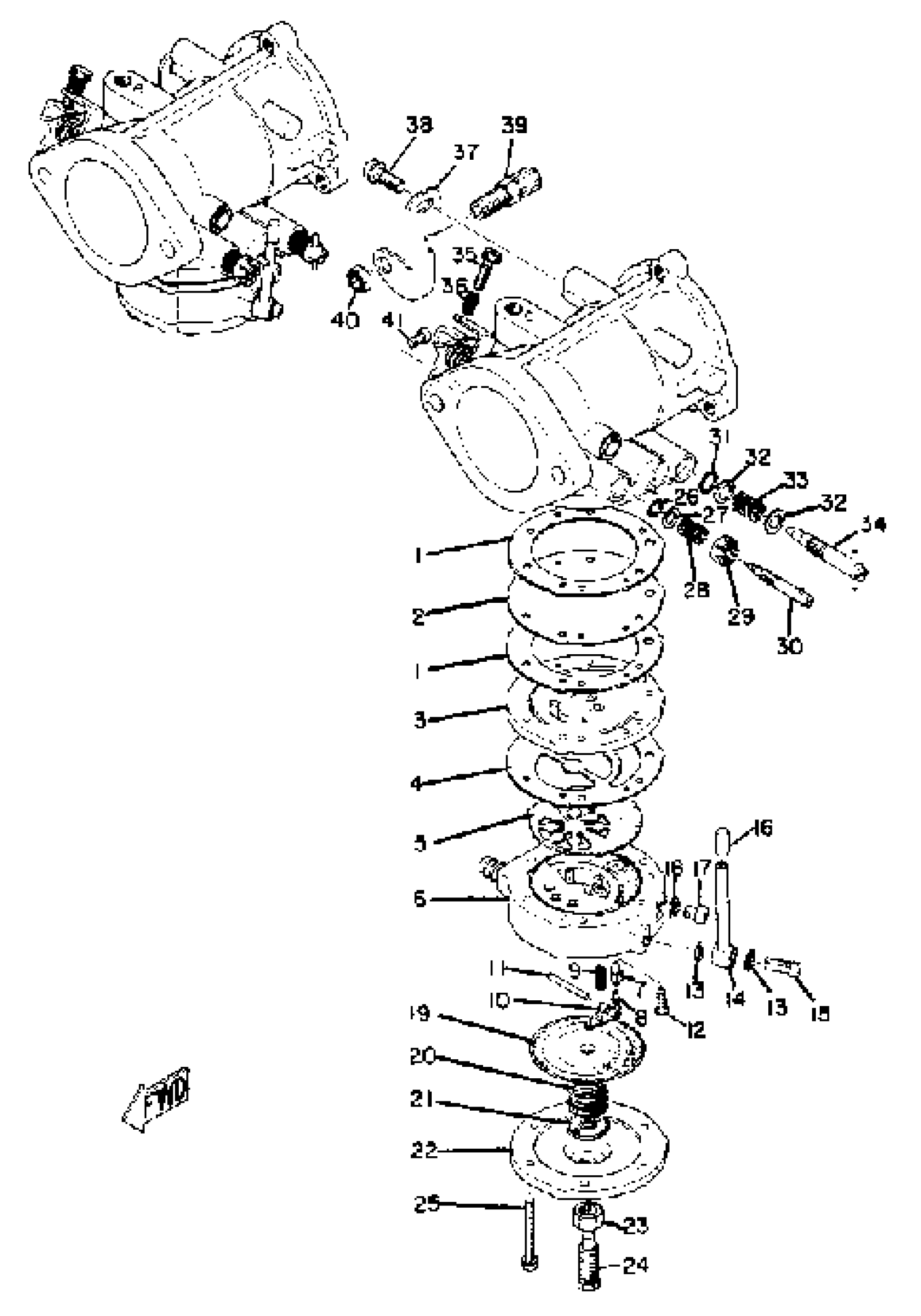

Yamaha SR433C 1973 CARBURETOR Diagram
#
1
GASKET
838-14536-09-00
Unavailable
1
CARBURETOR ASSEMBLY 1
(857-14501-00-00)
Unavailable
2
. DIAPHRAGM, PUMP
834-14541-00-00
Unavailable
2
CARBURETOR ASSEMBLY 2
(857-14502-00-00)
Unavailable
3
BODY, PUMP 1
(838-14542-00-00)
Unavailable
4
GASKET
834-14553-09-00
Unavailable
5
VALVE,CHECK
806-14552-01-00
$56.99
6
BODY, PUMP 2
(852-14543-00-00)
Unavailable
7
VALVE
838-14546-00-00
$43.99
8
. PIN, FLOAT
676-14186-00-00
Unavailable
9
. SPRING
810-14556-00-00
Unavailable
10
ARM, FLOAT
(810-14547-00-00)
Unavailable
11
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
12
SCREW, FLAT
98707-03008-00
$7.49
13
. WASHER
806-14559-00-00
Unavailable
14
. PIPE, AIRVENT
810-14197-02-00
Unavailable
15
. SCREW
8A1-14592-00-00
Unavailable
16
. CAP, BLIND
810-24462-01-00
Unavailable
17
SCREW
(806-14567-01-00)
Unavailable
18
. WASHER
810-14597-00-00
Unavailable
19
DIAPHRAGM
810-14545-00-00
Unavailable
20
SPRING
(810-14555-00-00)
Unavailable
21
. PIN, FLOAT
676-14186-00-00
Unavailable
22
BODY, PUMP 3
(813-14544-00-00)
Unavailable
23
. NUT
95380-08700-00
Unavailable
24
GASKET, EXHAUST PIPE
89A-14613-00-00
Unavailable
25
SCREW
(824-14567-00-00)
Unavailable
26
. O-RING
824-14563-00-00
Unavailable
27
. WASHER
838-14596-00-00
Unavailable
28
SPRING, AJST SCREW
(824-14531-00-00)
Unavailable
29
COLLAR
(847-14534-00-00)
Unavailable
30
SCREW, ADJUST
(857-14522-00-00)
Unavailable
31
. O-RING
824-14564-00-00
Unavailable
32
. WASHER
838-14597-00-00
Unavailable
33
GASKET, EXHAUST PIPE
89A-14613-00-00
Unavailable
34
SCREW, ADJUST
(834-14521-00-00)
Unavailable
35
SCREW, STOP
(806-14523-00-00)
Unavailable
36
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
37
BRACKET, THROTTLE
(857-14571-00-00)
Unavailable
38
SCREW
(844-14567-00-00)
Unavailable
39
. ADJUSTER, CABLE
857-14576-00-00
Unavailable
40
NUT
(857-14594-00-00)
Unavailable
41
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
