1972 Yamaha SR433B (SR433B) Speedometer Gear Unit Diagram

← All diagrams

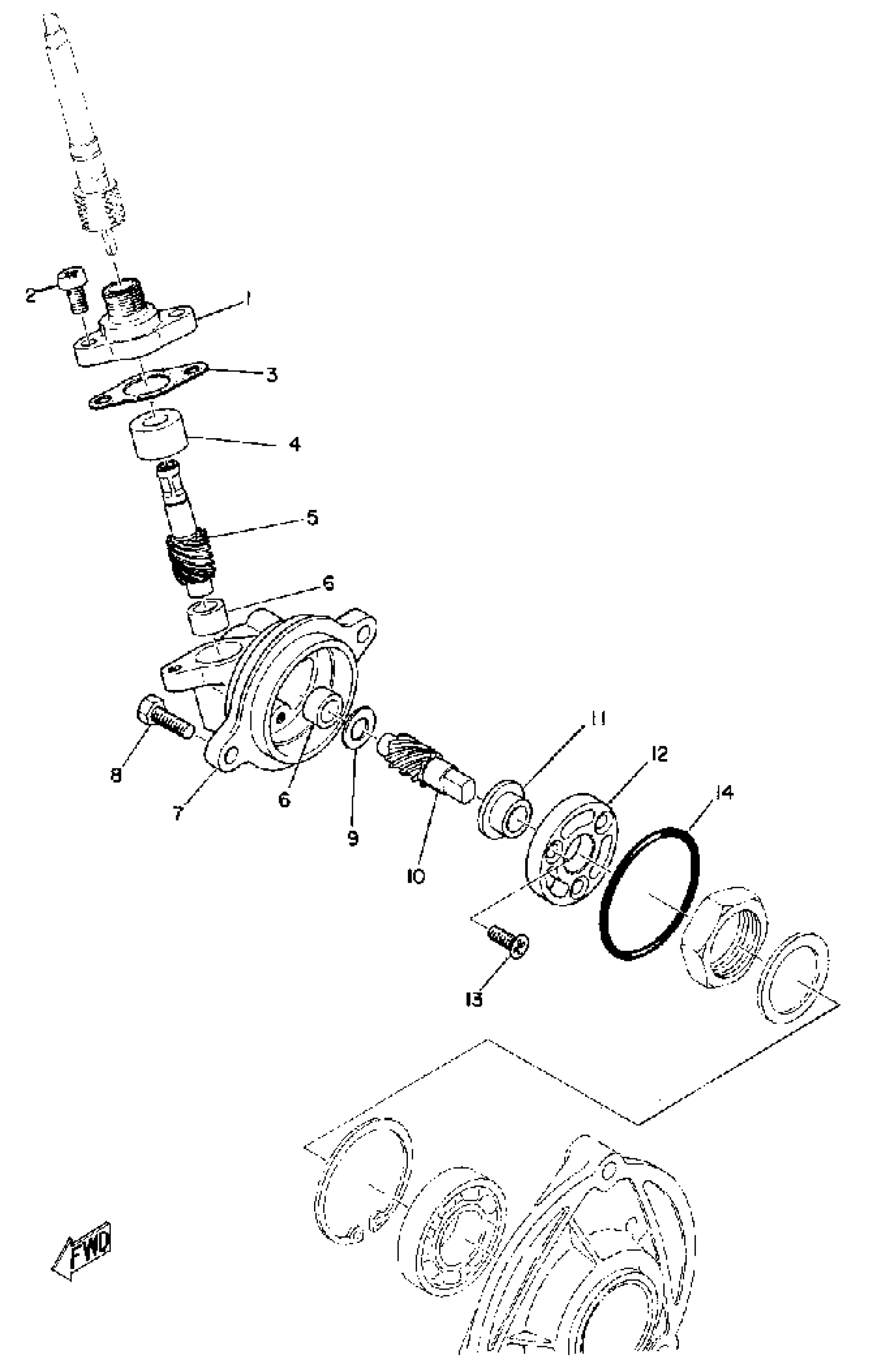

Find the part on the Speedometer Gear Unit diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Speedometer Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HOUSING

(810-47721-10-00)

1
Out of stock

2

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

3

GASKET

810-47727-11-00

1
Out of stock

4

BUSH, SOLID

90380-08005-00

1
Out of stock

5

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

6

BUSH, SOLID

(90380-08002-00)

1
Out of stock

7

HOUSING

8E6-47711-10-00

1
Out of stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

SHIM

810-47717-10-00

1
Out of stock

10

GEAR, DRIVE

810-47731-11-00

1
Out of stock

11

BUSH, SOLID

90381-10003-00

1
Out of stock

12

JOURNAL

853-47712-10-00

1
Out of stock

13

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

14

O-RING

93210-43141-00

1
Out of stock
