1972 Yamaha SR433B (SR433B) Flywheel Magneto Diagram

← All diagrams

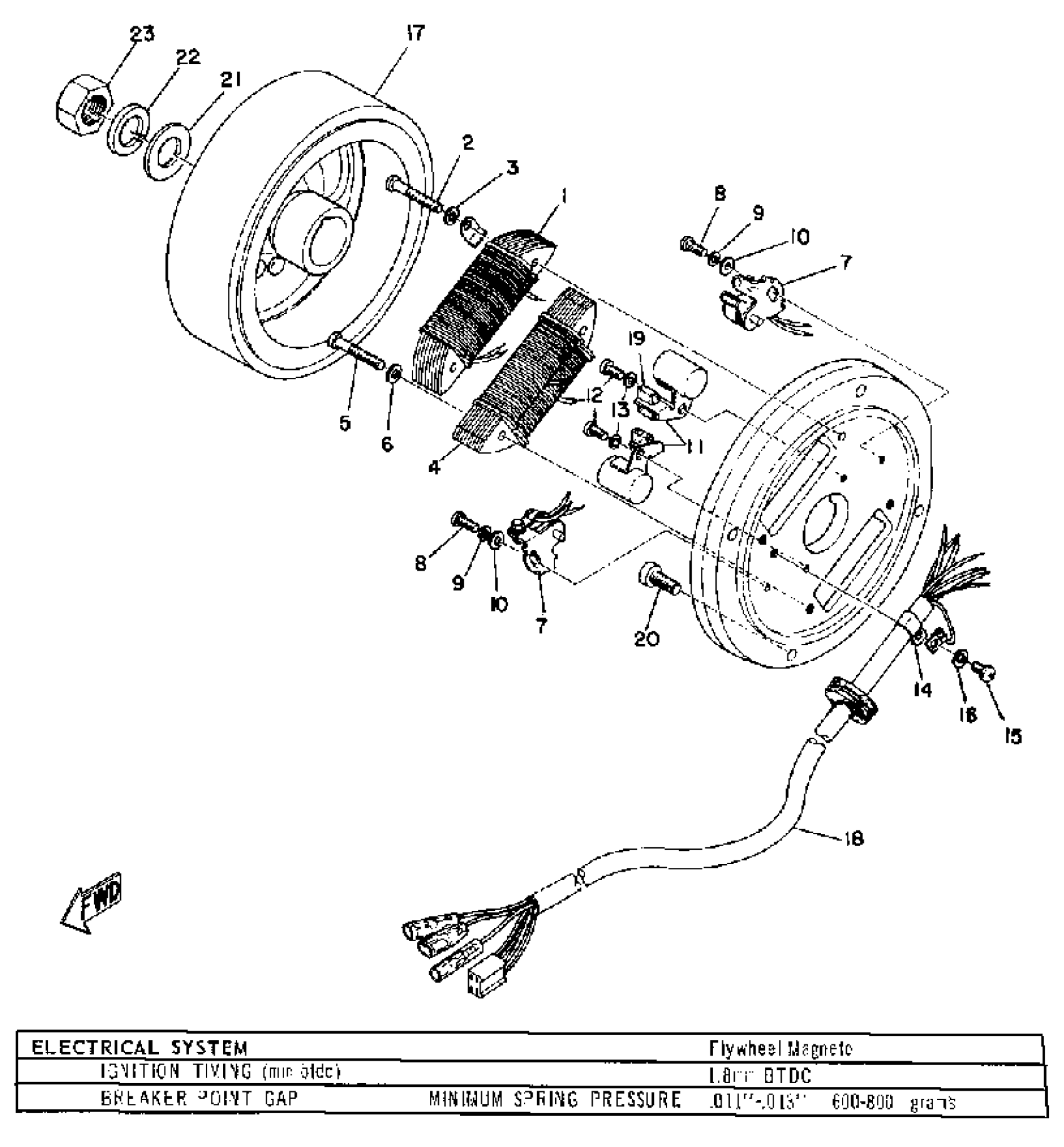

Find the part on the Flywheel Magneto diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL, SOURCE

(820-81312-50-00)

1
Out of stock

1

FLYWHL MAGNETO ASSEMBLY

(829-81300-50-00)

1
Out of stock

2

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

COIL, LIGHTING 1

(820-81313-50-00)

1
Out of stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

CONTACT BRKR ASSEMBLY

(820-81321-50-00)

1
Out of stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

. CONDENSER 1

820-81325-50-00

1
Out of stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

CLAMP

(820-81328-50-00)

1
Out of stock

15

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

ROTOR ASSEMBLY

(820-81350-50-00)

1
Out of stock

18

LEAD WIRE ASSEMBLY

(829-81315-50-00)

1
Out of stock

19

LUBRICATOR

(820-81331-50-00)

1
Out of stock

20

SCREW, PAN

98507-06014-00

—

$6.18

In stock

21

WASHER

(92901-16247-00)

1
Out of stock

22

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

23

NUT

90170-16425-00

—
Out of stock
