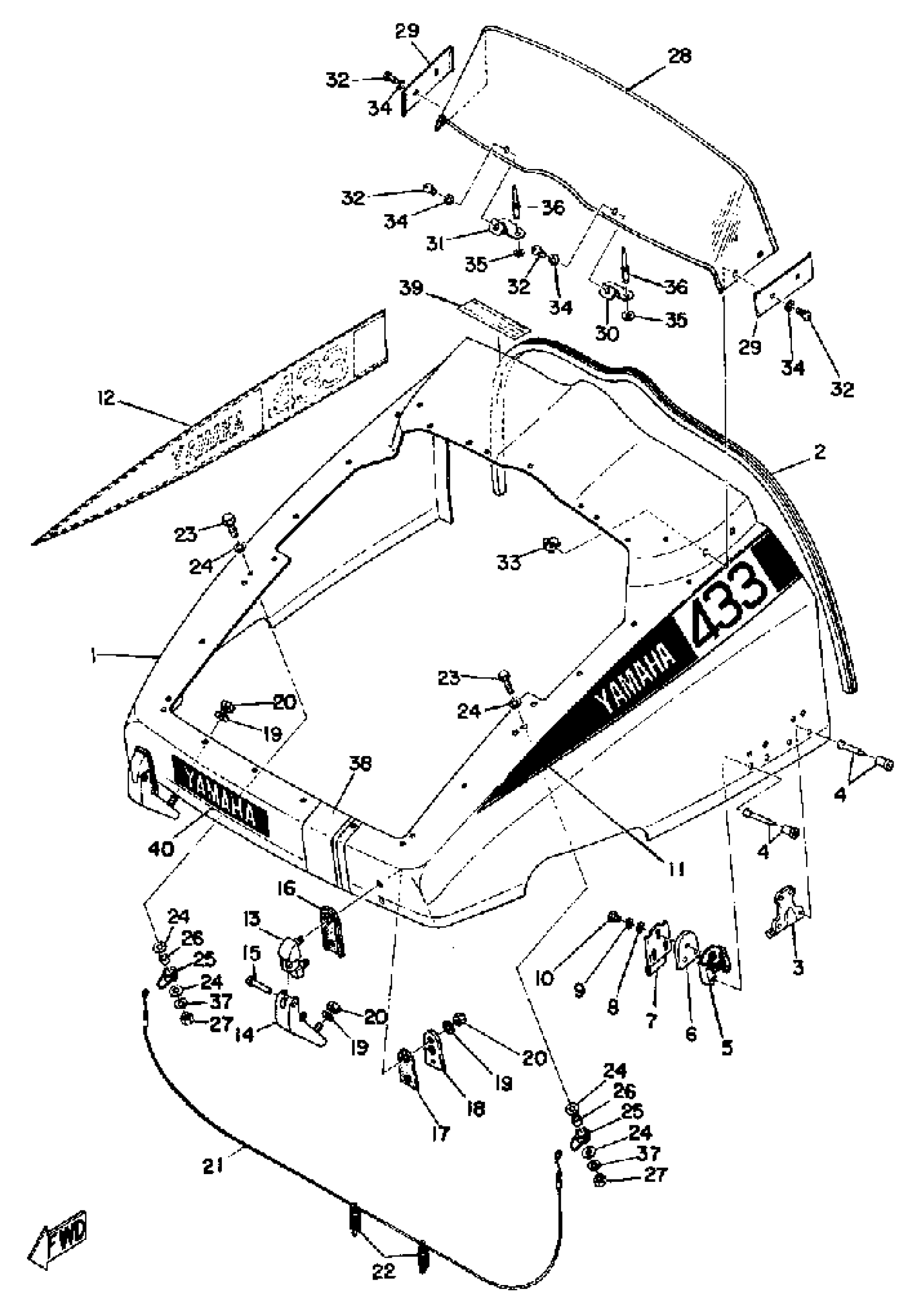

Yamaha SR433B (SR433B) 1972 SHROUD Diagram
#
1
SHROUD
(829-77111-00-00)
Unavailable
2
TRIM 2
(806-77166-00-00)
Unavailable
3
. BODY, LATCH 1
806-77171-00-00
Unavailable
4
RIVET 1
(820-77155-00-00)
Unavailable
5
CLAMP 4
810-77138-00-00
Unavailable
6
WASHER 2
810-77179-00-00
Unavailable
7
CLAMP 2
810-77136-00-00
Unavailable
8
WASHER, PLATE 8067717800
90201-05029-00
$8.49
9
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
10
BOLT, HEXAGON
97013-05010-00
$0.59
11
ORNAMENT 1
(829-77163-00-00)
Unavailable
12
ORNAMENT 2
(829-77164-00-00)
Unavailable
13
HINGE 1
(806-77145-00-00)
Unavailable
14
HINGE 3
806-77147-00-00
Unavailable
15
PIN (806-77157-00)
90243-05002-00
Unavailable
16
DAMPER 1
(806-77198-00-00)
Unavailable
17
DAMPER 2
810-77199-00-00
Unavailable
18
PLATE, BACK UP 1
810-77153-00-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
NUT, HEXAGON
95380-06600-00
Unavailable
21
STOPPER, SHROUD
(820-77118-00-00)
Unavailable
22
CLAMP, ROD
(807-77159-00-00)
Unavailable
23
BOLT, HEXAGON (97201-05025)
97301-05025-00
Unavailable
24
WASHER, PLATE 8067717800
90201-05029-00
$8.49
25
HOLDER, ROD 1
(820-77139-00-00)
Unavailable
26
HOLDER, ROD 2
(820-77149-00-00)
Unavailable
27
NUT, HEXAGON
95317-05600-00
Unavailable
28
WINDSHIELD
(829-77210-00-00)
Unavailable
29
TRIM, LOWER
(829-77214-00-00)
Unavailable
30
BRACKET, WNDSHLD L
(829-77221-00-00)
Unavailable
31
BRACKET, WNDSHLD R
(829-77222-00-00)
Unavailable
32
SCREW, BINDING
98907-05016-00
Unavailable
33
NUT, T (802-77217-00)
90180-05004-00
Unavailable
34
WASHER PLATE 829771780000
90201-05033-00
Unavailable
35
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
36
RIVET, BLIND
90267-40029-00
Unavailable
37
WASHER(3SX)
92907-05100-00
Unavailable
38
ORNAMENT 3
(829-77169-00-00)
Unavailable
39
EMBLEM 1
(820-77141-00-00)
Unavailable
40
EMBLEM 7
(829-77357-00-00)
Unavailable
