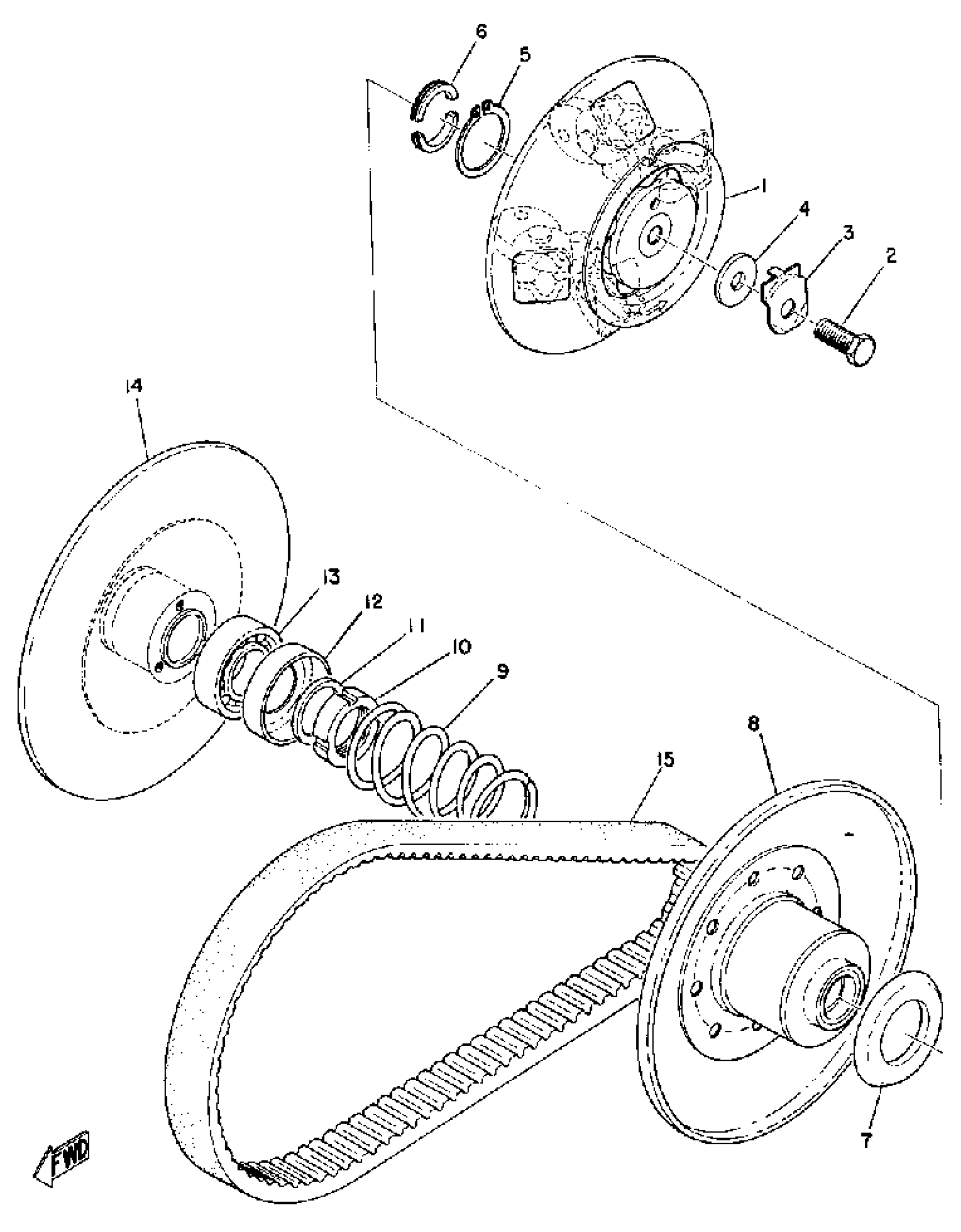

Yamaha SR433B (SR433B) 1972 PRIMARY SHEAVE Diagram

#

Description

Price

1

PRI SHV CAP

829-17630-00-00

Unavailable

2

BOLT

(90109-10079-00)

Unavailable

3

WASHER, LOCK (810-17646-00)

90215-11080-00

Unavailable

4

WASHER, PLATE

90201-10144-00

Unavailable

5

CIRCLIP(4A6)

99009-30400-00

$8.49

6

COLLAR

806-17645-00-00

Unavailable

7

CAM

(809-17623-00-00)

Unavailable

8

PRI SLIDG SHEAVE

(810-17620-01-00)

Unavailable

9

SPRING, COMPRESSION (829-17643-70)

90501-50168-00

Unavailable

10

NUT, BEARING

(810-17642-00-00)

Unavailable

11

WASHER, CONICAL SPR

90208-28003-00

Unavailable

12

SEAT, SPRING

(829-17644-00-00)

Unavailable

13

BEARING

93306-07806-00

$63.99

14

PRI. FIXED SHEAVE

(821-W1761-00-00)

Unavailable

15

V-BELT

820-17641-01-00

Unavailable
