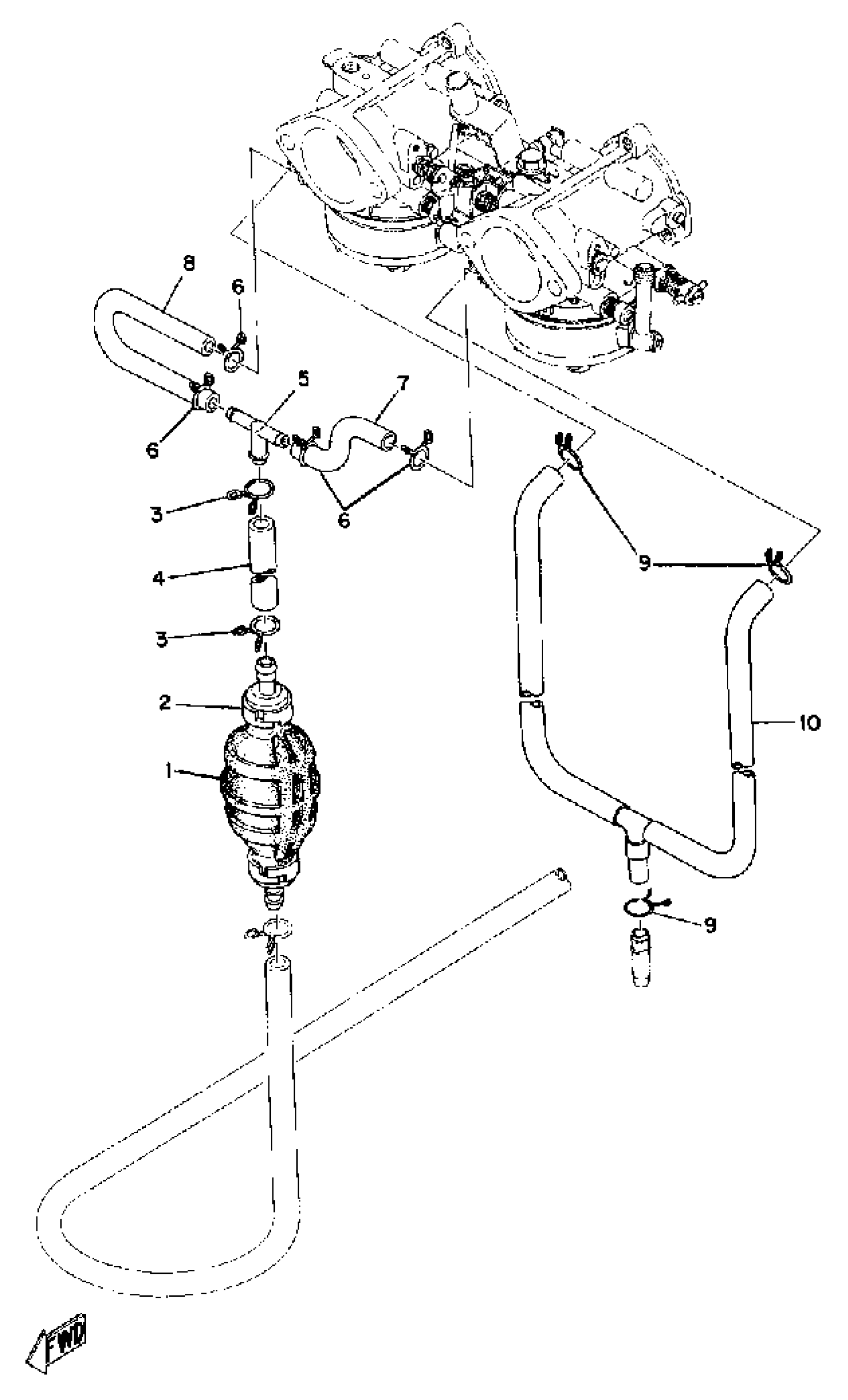

Yamaha SR433B (SR433B) 1972 PIPING Diagram

#

Description

Price

1

PRIMER PUMP ASSEMBLY

810-24360-00-00

Unavailable

2

BAND

(601-24353-00-00)

Unavailable

3

CLIP (8J7)

90467-11009-00

$10.49

4

PIPE 2

(809-24312-00-00)

Unavailable

5

JOINT, PIPE (1)

807-24376-00-00

$6.99

6

CLIP, PIPE 1

810-24356-00-00

Unavailable

7

PIPE 3

(813-24313-00-00)

Unavailable

8

PIPE 7

807-24317-00-00

Unavailable

9

CLIP

90467-090A2-00

$4.41

10

PIPE 5

(828-24315-00-00)

Unavailable
