1972 Yamaha SR433B (SR433B) Frame Diagram

← All diagrams

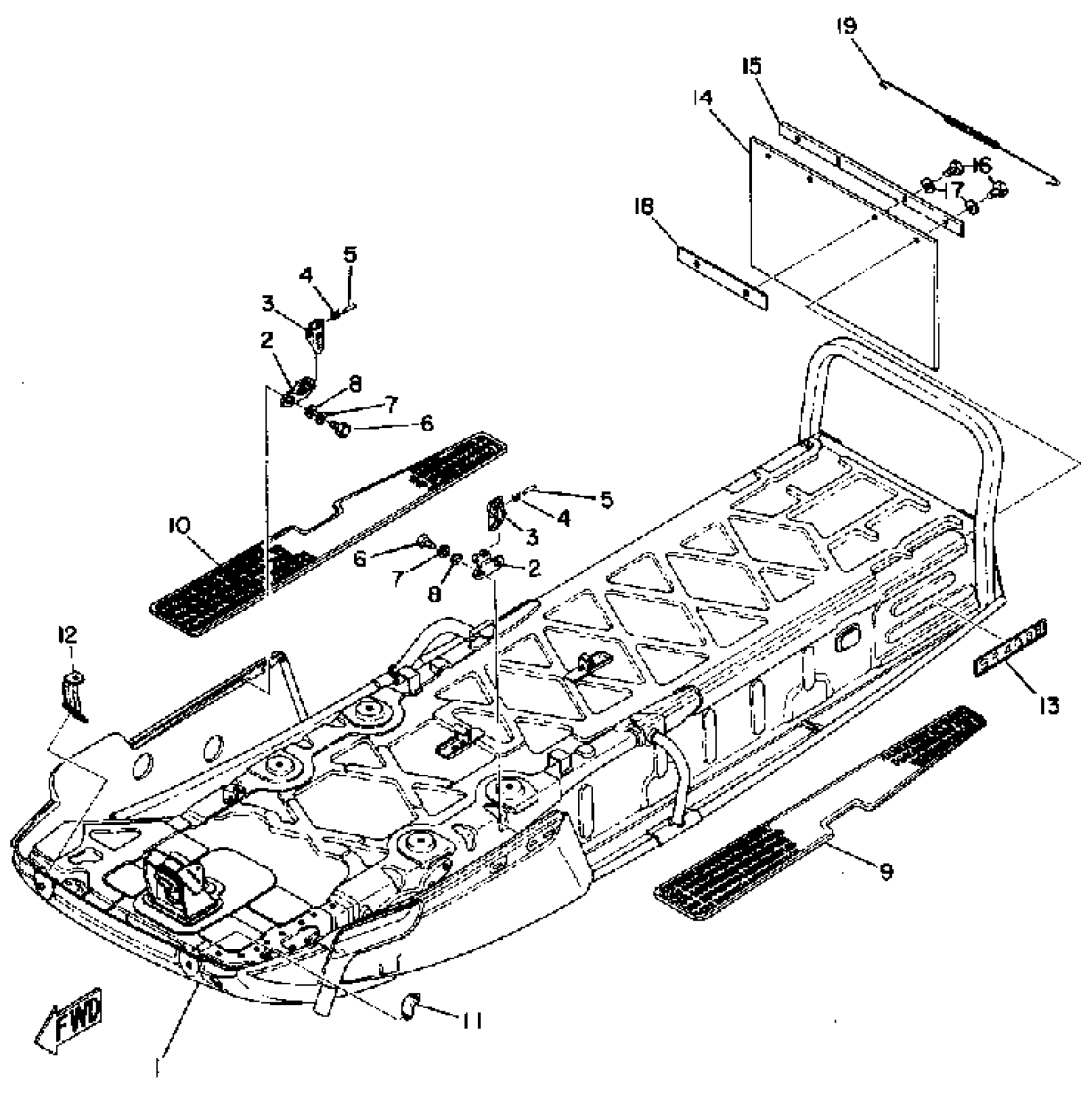

Find the part on the Frame diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

813-77170-00-00

1
Out of stock

1

FRAME

(829-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

LEVER, LATCH 1

(813-77173-00-00)

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

STAY, MUFFLER 1

(820-21445-00-00)

1
Out of stock

12

STAY, MUFFLER 2

(820-21446-00-00)

1
Out of stock

13

EMBLEM 4

(829-77354-00-00)

1
Out of stock

14

FLAP

(829-77595-00-00)

1
Out of stock

15

PLATE, FLAP 1

(829-77593-00-00)

1
Out of stock

16

BOLT, HEXAGON

97013-06018-00

—

$1.54

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

PLATE, FLAP 2

(820-77594-00-00)

1
Out of stock

19

STOPPER, FLAP

(829-77596-00-00)

1
Out of stock
