Description

Price

1

EXHAUST PIPE ASSEMBLY L

(829-14610-00-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(829-14620-00-00)

Unavailable

3

NUT, RING

(828-14612-70-00)

Unavailable

4

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

5

BOLT (682)

97013-08025-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

SPRING, TENSION

(90506-12027-00)

Unavailable

8

BOLT (663)

97013-08060-00

$4.41

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

11

SPRING, COMPRESSION (802-14773-00)

90501-26149-00

Unavailable

12

COLLAR (802-14638-00)

90387-09071-00

Unavailable

13

SPRING 214-14683-01

90506-12029-00

Unavailable

14

PIPE, MUFFLER TAIL

(818-14746-00-00)

Unavailable

15

PROTECTER, MUFF 2

(818-14728-00-00)

Unavailable

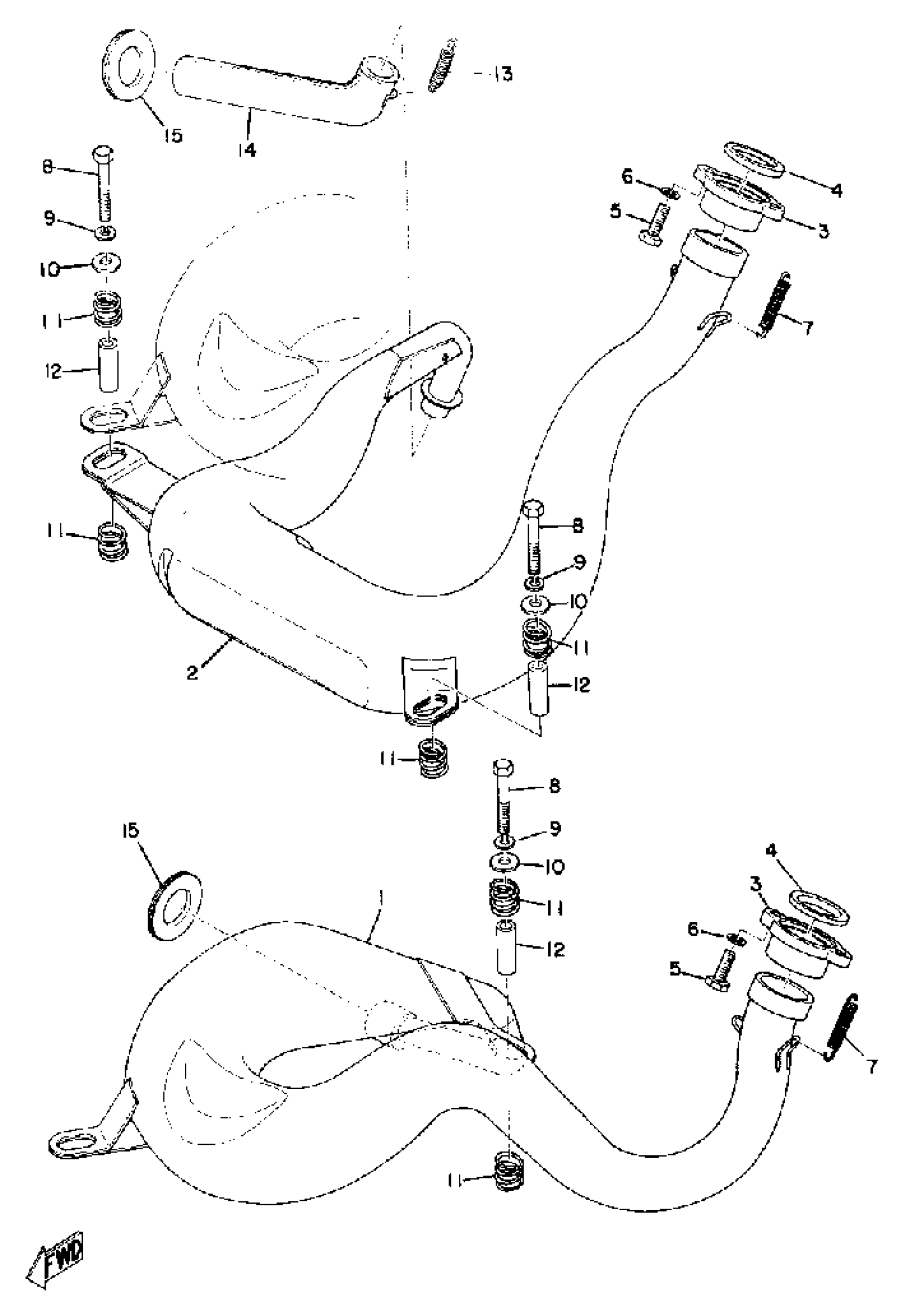

Yamaha SR433B (SR433B) 1972 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

EXHAUST PIPE ASSEMBLY R

NUT, RING

GASKET, EXHAUST PIPE

BOLT (682)

YBS67-8 WASHER, SPRING

SPRING, TENSION

BOLT (663)

YBS67-8 WASHER, SPRING

WASHER, PLATE (5J0)

SPRING, COMPRESSION (802-14773-00)

COLLAR (802-14638-00)

SPRING 214-14683-01

PIPE, MUFFLER TAIL

PROTECTER, MUFF 2
