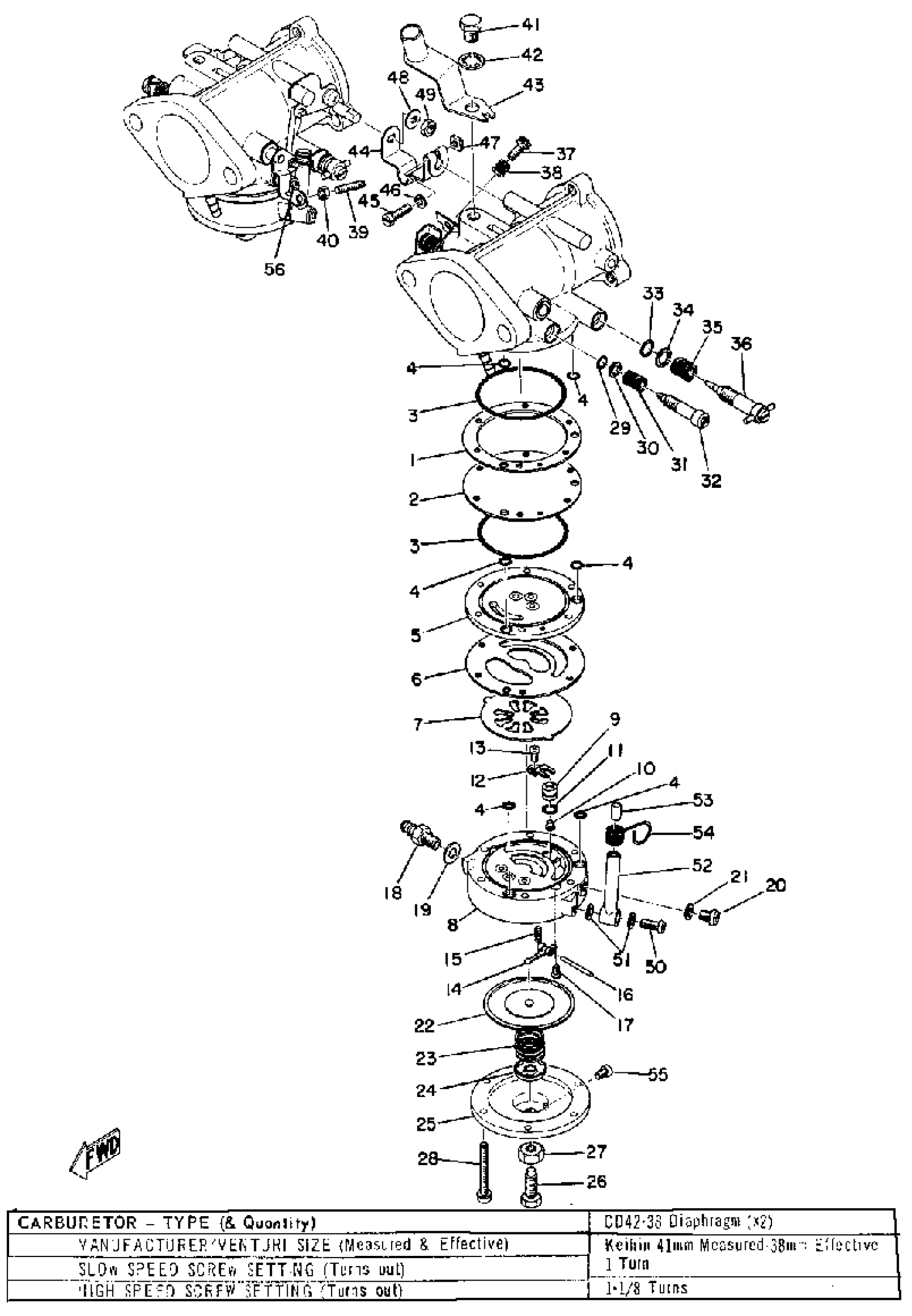

Yamaha SR433B (SR433B) 1972 CARBURETOR Diagram

#

Description

Price

1

. GASKET

806-14536-00-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(828-14501-70-00)

Unavailable

2

. DIAPHRAGM, PUMP

806-14541-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

(828-14502-70-00)

Unavailable

3

. O-RING

806-14562-00-00

Unavailable

4

. O-RING

810-14561-00-00

Unavailable

5

BODY, PUMP 1

(821-14542-00-00)

Unavailable

6

GASKET

(810-14553-00-00)

Unavailable

7

VALVE,CHECK

806-14552-01-00

$56.99

8

BODY, PUMP 2

(810-14543-00-00)

Unavailable

9

VALVE SEAT ASSEMBLY

(824-14590-00-00)

Unavailable

10

. PIN, FLOAT

676-14186-00-00

Unavailable

11

. O-RING

810-24486-00-00

Unavailable

12

PLATE, PIN FITTING

(810-14549-00-00)

Unavailable

13

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

14

ARM, FLOAT

(810-14547-00-00)

Unavailable

15

. SPRING

810-14556-00-00

Unavailable

16

PIN, FLOAT ARM

(806-14548-01-00)

Unavailable

17

SCREW, FLAT

98707-03008-00

Unavailable

18

JOINT

(813-14568-00-00)

Unavailable

19

WASHER

(810-14558-00-00)

Unavailable

20

SCREW

(806-14567-01-00)

Unavailable

21

. WASHER

810-14597-00-00

Unavailable

22

DIAPHRAGM

810-14545-00-00

Unavailable

23

SPRING

(810-14555-00-00)

Unavailable

24

SEAT, SPRING

(810-14136-00-00)

Unavailable

25

BODY, PUMP 3

(813-14544-00-00)

Unavailable

26

. SCREW, STOP

824-14565-00-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

SCREW

(824-14567-00-00)

Unavailable

29

. O-RING

824-14563-00-00

Unavailable

30

. WASHER

806-14596-00-00

Unavailable

31

SPRING, AJST SCREW

(824-14531-00-00)

Unavailable

32

. SCREW, ADJUST

824-14522-00-00

Unavailable

33

. O-RING

824-14564-00-00

Unavailable

34

. WASHER

824-14597-00-00

Unavailable

35

SPRING, AJST SCREW

(824-14533-00-00)

Unavailable

36

SCREW, ADJUST

(824-14521-00-00)

Unavailable

37

SCREW, STOP

(806-14523-00-00)

Unavailable

38

SPRING, AJST SCREW

(806-14533-00-00)

Unavailable

39

SCREW

(813-14591-00-00)

Unavailable

40

NUT

(806-14594-00-00)

Unavailable

41

BOLT(8X2)

90101-08344-00

Unavailable

42

WASHER, IN.TOOTH

(92901-08300-00)

Unavailable

43

BRACKET, THROTTLE

(823-14571-00-00)

Unavailable

44

CONNECTOR

(806-14588-00-00)

Unavailable

45

. UNAVAILABLE IN PRICE BOOK

98303-04015-00

Unavailable

46

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

47

NUT

(806-14595-00-00)

Unavailable

48

WASHER

(806-14598-00-00)

Unavailable

49

NUT, HEXAGON (663)

95380-05600-00

Unavailable

50

. SCREW

8A1-14592-00-00

Unavailable

51

. WASHER

806-14559-00-00

Unavailable

52

. PIPE, AIRVENT

810-14197-02-00

Unavailable

53

. CAP, BLIND

810-24462-01-00

Unavailable

54

CLIP

(824-14159-00-00)

Unavailable

55

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

56

. SCREW, ADJUST

828-14522-00-00

Unavailable
