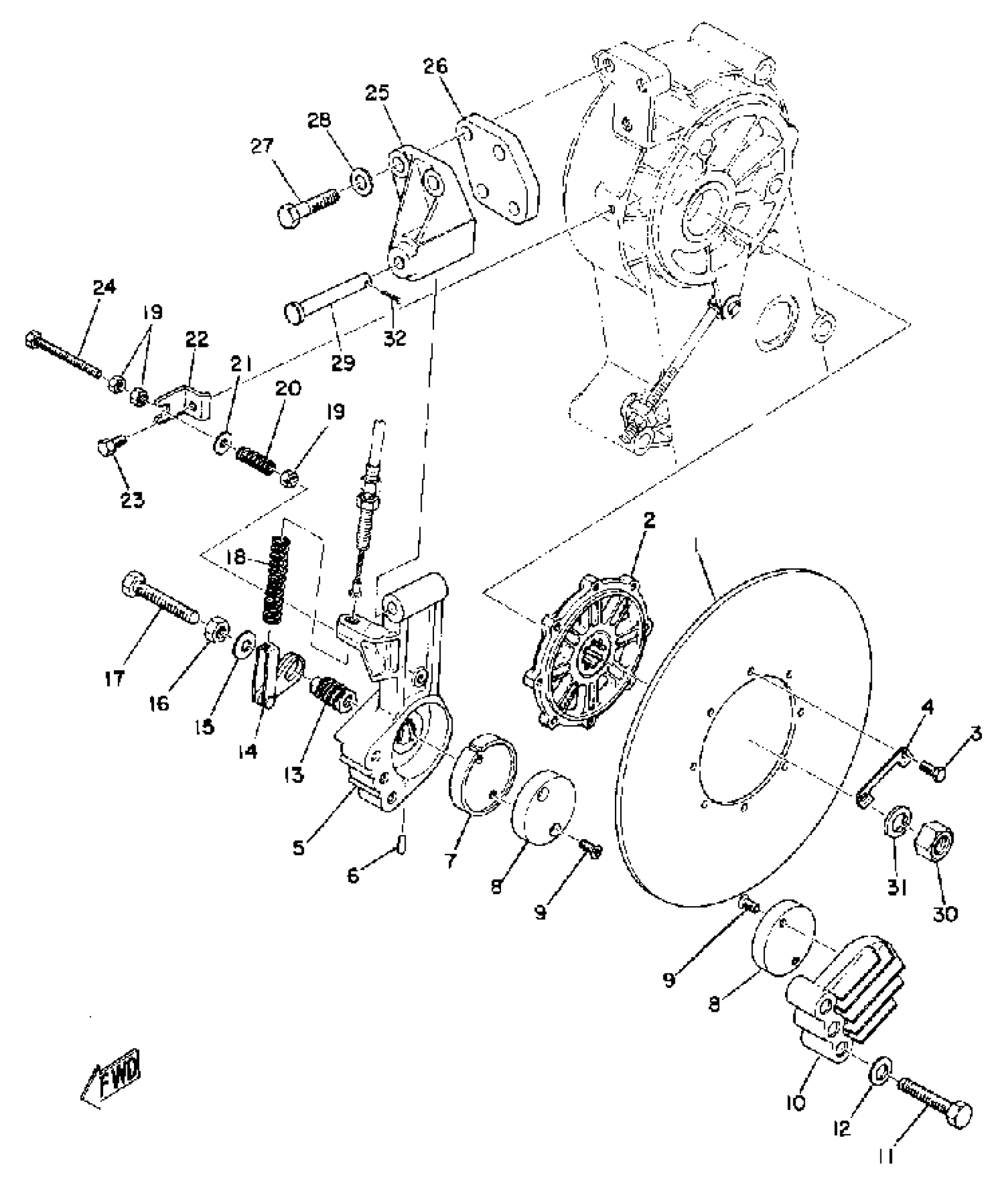

Yamaha SR433B (SR433B) 1972 BRAKE Diagram
#
1
DISC, BRAKE
(835-25711-00-00)
Unavailable
2
BRACKET, DISC
(829-25712-00-00)
Unavailable
3
BOLT, HEXAGON
(97321-05012-00)
Unavailable
4
WASHER, LOCK
(835-25714-00-00)
Unavailable
5
BODY, CALIPER 1
(835-25731-00-00)
Unavailable
6
PIN,DOWEL (137)
93604-14012-00
$1.81
7
PLATE, BACK UP
(835-25733-00-00)
Unavailable
8
PAD, CALIPER
835-25732-00-00
Unavailable
9
SCREW, FLAT
98707-05012-00
$1.71
10
BODY, CALIPER 2
(835-25741-00-00)
Unavailable
11
BOLT
97013-08045-00
Unavailable
12
WASHER, PLAIN
92990-08200-00
Unavailable
13
CAM
(835-25728-00-00)
Unavailable
14
LEVER, BRAKE
(835-25726-00-00)
Unavailable
15
WASHER, PLAIN
92990-08200-00
Unavailable
16
NUT(6L2)
95333-08600-00
Unavailable
17
SCREW, ADJUSTING 2
(835-25748-00-00)
Unavailable
18
SPRING, RETURN 2
(835-25745-00-00)
Unavailable
19
NUT, HEXAGON
95380-06600-00
Unavailable
20
SPRING, COMPRESSION
(90501-20120-00)
Unavailable
21
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
22
HOOK, SPRING
(835-25736-00-00)
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
BOLT
(90101-06118-00)
Unavailable
25
BRACKET, CALIPER
(835-25721-00-00)
Unavailable
26
BRACKET, ADJUSTING
(835-25722-00-00)
Unavailable
27
BOLT
97014-08040-00
Unavailable
28
WASHER, PLAIN
92990-08200-00
Unavailable
29
PIN, CLEVIS
(90240-08020-00)
Unavailable
30
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
31
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
32
PIN, COTTER
91490-30030-00
Unavailable
