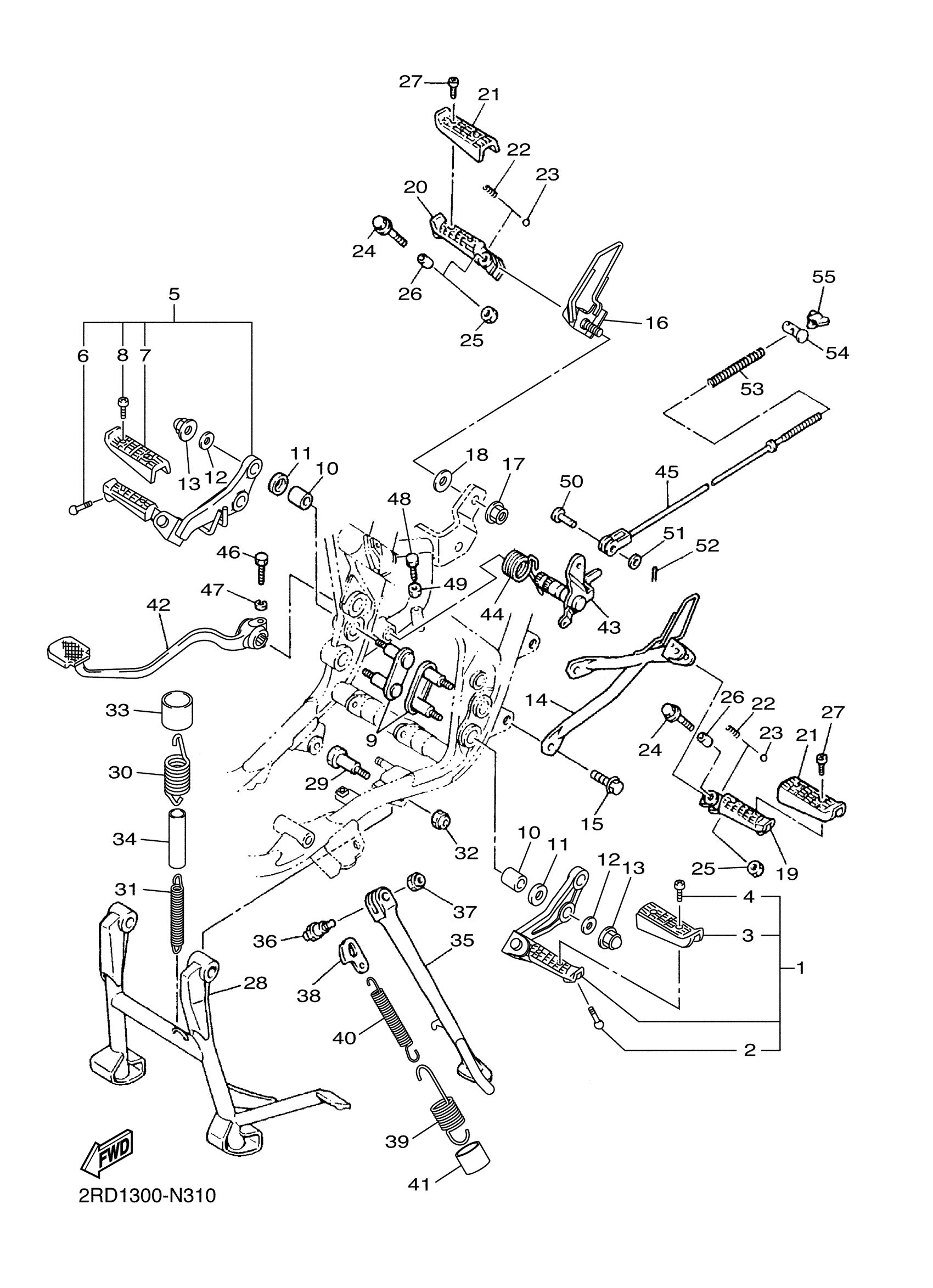

Yamaha SR400JL (SR400) 2RDG 2018 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

3GW-27410-20-00

$146.99

2

BOLT

90109-08177-00

$10.49

3

COVER, FOOTREST

1JK-27413-00-00

$34.99

4

SCREW, PAN HEAD

98507-05014-00

$8.49

5

FRONT FOOTREST ASSY (RIGHT)

3GW-27420-20-00

Unavailable

6

BOLT

90109-08177-00

$10.49

7

COVER, FOOTREST

1JK-27413-00-00

$34.99

8

SCREW, PAN HEAD

98507-05014-00

$8.49

9

BOLT, FOOTREST

2J2-27416-10-00

Unavailable

10

DAMPER, FOOTREST

2J2-27414-01-00

Unavailable

11

WASHER 278234480000

90209-12102-00

$9.49

12

WASHER, PLATE

90201-08043-00

$7.49

13

NUT, CROWN(3AA)

90176-08068-00

$8.49

14

BRACKET 1

3GW-27432-00-33

$135.99

15

BOLT, FLANGE

95817-10020-00

$8.49

16

BRACKET 2

3HT-27442-00-00

Unavailable

17

NUT, U FLANGE

95607-12200-00

Unavailable

18

WASHER, PLATE

90201-12027-00

Unavailable

19

FOOTREST, REAR 1

4BR-27431-01-00

Unavailable

20

FOOTREST, REAR 2

4BR-27441-01-00

Unavailable

21

COVER, FOOTREST

2GH-27413-00-00

Unavailable

22

SPRING, COMPRESSION

90501-15001-00

Unavailable

23

BALL

93501-04011-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

25

NUT, SELF-LOCKING

95617-06100-00

Unavailable

26

COLLAR (24R)

90387-064H8-00

Unavailable

27

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

28

STAND, MAIN

2J2-27111-00-00

Unavailable

29

BOLT(3EB)

90109-102G9-00

Unavailable

30

SPRING, TENSION

90506-45002-00

Unavailable

31

SPRING, TENSION

90506-29007-00

Unavailable

32

NUT, U

90185-10037-00

Unavailable

33

HOSE

90445-42002-00

Unavailable

34

HOSE (L95)

90445-212G3-00

Unavailable

35

STAND, SIDE

2RD-27311-00-00

Unavailable

36

BOLT

90109-10005-00

Unavailable

37

NUT, U

90185-10037-00

Unavailable

38

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

39

SPRING, TENSION (4K0)

90506-26225-00

Unavailable

40

SPRING, TENSION (4K0)

90506-18224-00

Unavailable

41

HOSE (L55)

90445-266H4-00

Unavailable

42

PEDAL, BRAKE

3HT-27211-00-00

Unavailable

43

SHAFT, BRAKE PEDAL

3H0-27212-00-00

Unavailable

44

SPRING, TORSION (2J4)

90508-40381-00

Unavailable

45

ROD, BRAKE

3H0-27231-00-00

Unavailable

46

BOLT (1J7)

90109-06468-00

Unavailable

47

WASHER, SPRING

92907-06100-00

Unavailable

48

BOLT, HEXAGON

97017-06020-00

Unavailable

49

NUT(JN5)

95317-06700-00

Unavailable

50

PIN (3H0)

90240-08067-00

Unavailable

51

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

52

PIN, COTTER (648)

91490-20015-00

Unavailable

53

SPRING, (180-27236-00)

90501-10245-00

Unavailable

54

PIN 1562723700

90249-12008-00

Unavailable

55

NUT, WING (1K5)

90175-06013-00

Unavailable
