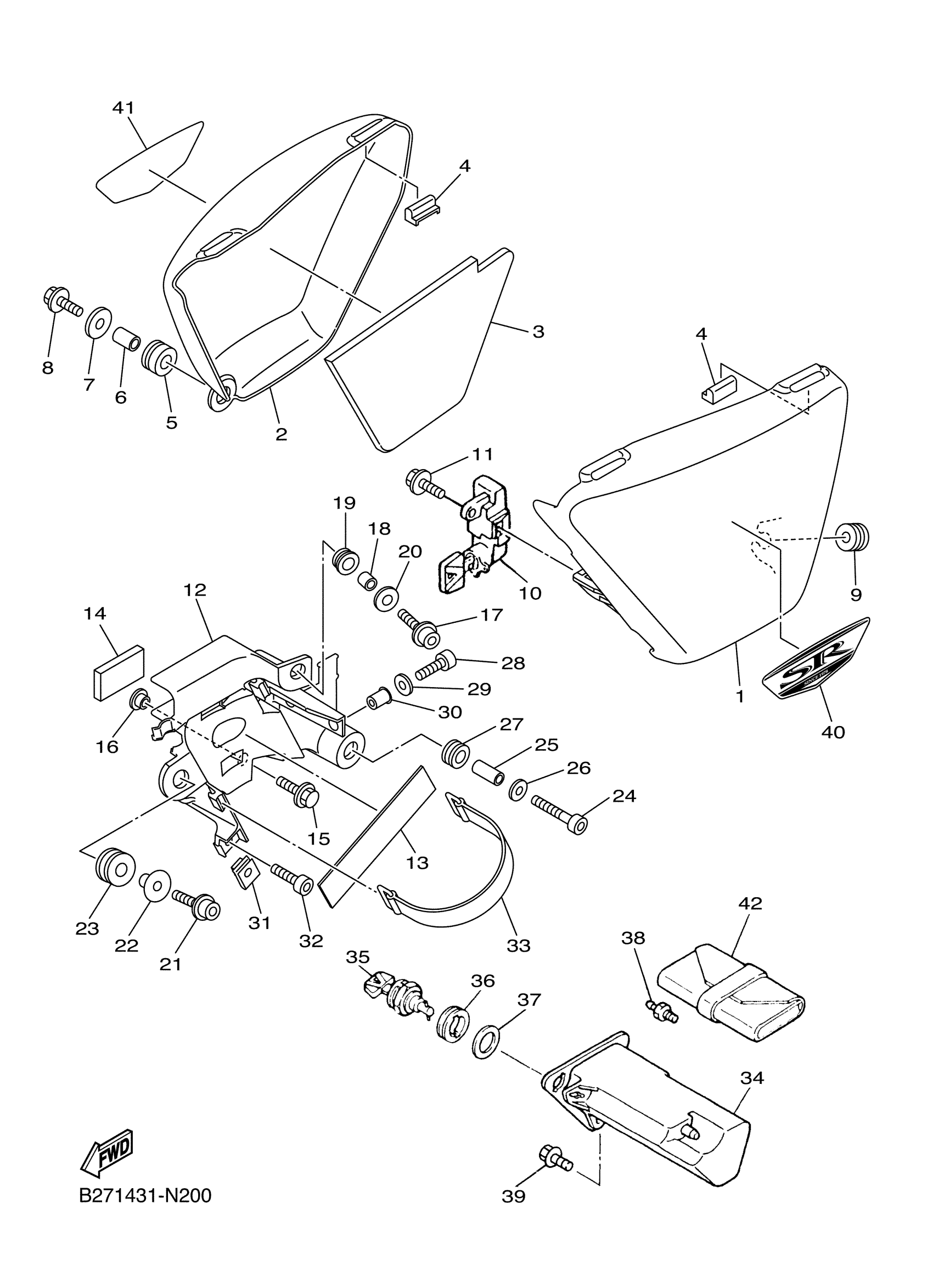

Yamaha SR400JL (SR400) 2RDG 2018 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3HT-21711-02-P5

Unavailable

2

COVER, SIDE 2

3HT-21721-00-P5

Unavailable

3

DAMPER

3HT-2174Y-00-00

Unavailable

4

DAMPER, SIDE COVER

466-21717-00-00

$10.99

5

GROMMET 260845590000

90480-14105-00

$11.49

6

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

7

WASHER, PLATE

90201-06380-00

$0.60

8

BOLT, FLANGE

95817-06030-00

$4.29

9

GROMMET (2J2)

90480-12236-00

$7.49

10

SIDE COVER LOCK ASSY

4R8-21708-01-00

Unavailable

11

BOLT, FLANGE

95817-06014-00

Unavailable

12

BOX

3HT-2177A-00-00

Unavailable

13

DAMPER, LOCATING 1

5PX-21778-00-00

$1.72

14

DAMPER

1TX-28371-00-00

$7.99

15

BOLT, FLANGE

95817-06014-00

Unavailable

16

COLLAR

90387-06184-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

18

COLLAR

90387-06113-00

Unavailable

19

GROMMET

90480-12003-00

Unavailable

20

WASHER, PLATE

90201-06104-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

22

COLLAR (6G1)

90387-06M52-00

Unavailable

23

GROMMET(2AL)

90480-14452-00

Unavailable

24

BOLT(J17)

91312-06035-00

Unavailable

25

COLLAR

90387-06045-00

Unavailable

26

WASHER, PLATE

90201-06104-00

Unavailable

27

GROMMET

90480-14003-00

Unavailable

28

BOLT, SOCKET

91317-05020-00

Unavailable

29

WASHER, PLAIN (646)

92990-05600-00

Unavailable

30

NUT(3YF)

90179-05633-00

Unavailable

31

NUT, SPRING

90183-060A1-00

Unavailable

32

BOLT(3MA)

91312-06016-00

Unavailable

33

BAND, BATTERY

133-82131-00-00

Unavailable

34

BOX

48U-21248-00-00

Unavailable

35

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

36

GROMMET (1E6)

90480-24186-00

Unavailable

37

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

38

NIPPLE, GREASE

93700-06M03-00

Unavailable

39

BOLT, WITH WASHER

90119-06242-00

Unavailable

40

EMBLEM 1

2RD-21781-00-00

Unavailable

41

EMBLEM 1

2RD-21781-00-00

Unavailable

42

TOOL KIT

3GW-28100-02-00

Unavailable
