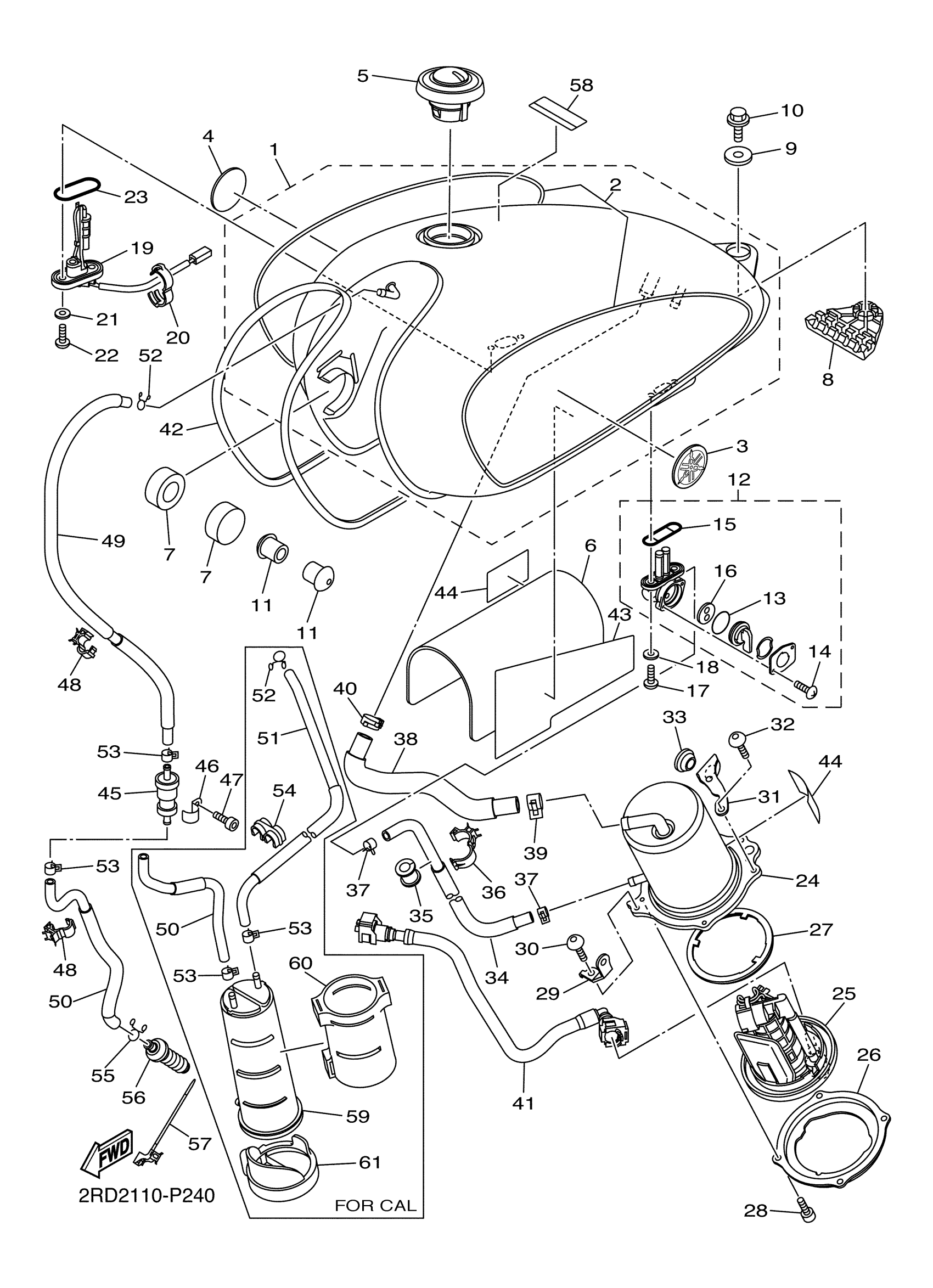

Yamaha SR400JL (SR400) 2RDG 2018 FUEL TANK Diagram
#
1
FUEL TANK COMP.
3HT-Y2410-10-X4
Unavailable
3
EMBLEM 1
1JN-24161-10-00
Unavailable
6
DAMPER, PLATE
90520-03008-00
Unavailable
16
VALVE PACKING
3AC-24523-00-00
Unavailable
17
SCREW
90149-06108-00
Unavailable
18
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
19
SENDER UNIT ASSY, FUEL METER
3HT-85752-02-00
Unavailable
20
CLAMP
90464-16001-00
Unavailable
21
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
22
SCREW
90149-06108-00
Unavailable
23
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
24
PUMP CASE COMP.
3HT-244A0-00-00
Unavailable
25
FUEL PUMP COMP.
3HT-13907-02-00
Unavailable
26
BRACKET, FUEL PUMP
35C-24491-00-00
Unavailable
27
O-RING
1S4-24486-00-00
Unavailable
28
BOLT
91312-05010-00
Unavailable
29
BRACKET, FUEL PUMP 1
3HT-24425-00-00
Unavailable
30
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
31
BRKT., FUEL PUMP 2
3HT-24426-00-00
Unavailable
32
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
33
GROMMET
90480-15004-00
Unavailable
34
PIPE, FUEL 1
2RD-24311-00-00
Unavailable
35
GROMMET(4CG)
90480-20543-00
Unavailable
36
CLAMP(4GY)
90464-20191-00
Unavailable
37
CLIP(3BM)
90467-10135-00
Unavailable
38
PIPE 2
2RD-24312-00-00
Unavailable
39
CLIP
90467-160A2-00
Unavailable
40
CLIP
5PX-2411M-00-00
Unavailable
41
PIPE, FUEL 1
3HT-13971-01-00
Unavailable
42
PLATE, MOLD
3EB-24189-10-00
Unavailable
43
SEAL 2
3HT-21735-00-00
Unavailable
44
SEAL,2
1JK-21735-00-00
Unavailable
45
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
46
CLAMP 2
5PX-24136-00-00
Unavailable
47
BOLT, SOCKET
91317-05010-00
Unavailable
48
CLAMP(4GY)
90464-10190-00
Unavailable
49
PIPE 3
3HT-24313-00-00
Unavailable
50
PIPE 4
2RD-24314-00-00
Unavailable
51
PIPE 5
2RD-24315-00-00
Unavailable
52
CLIP
90467-090A2-00
Unavailable
53
CLIP
90467-090A1-00
Unavailable
54
CLAMP(4PE)
90464-12224-00
Unavailable
58
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
59
CANISTER ASSY
2RC-24170-00-00
Unavailable
60
DAMPER, LOCATING 1
2RD-24181-00-00
Unavailable
61
COVER, CANISTER
2RD-2419E-00-00
Unavailable
