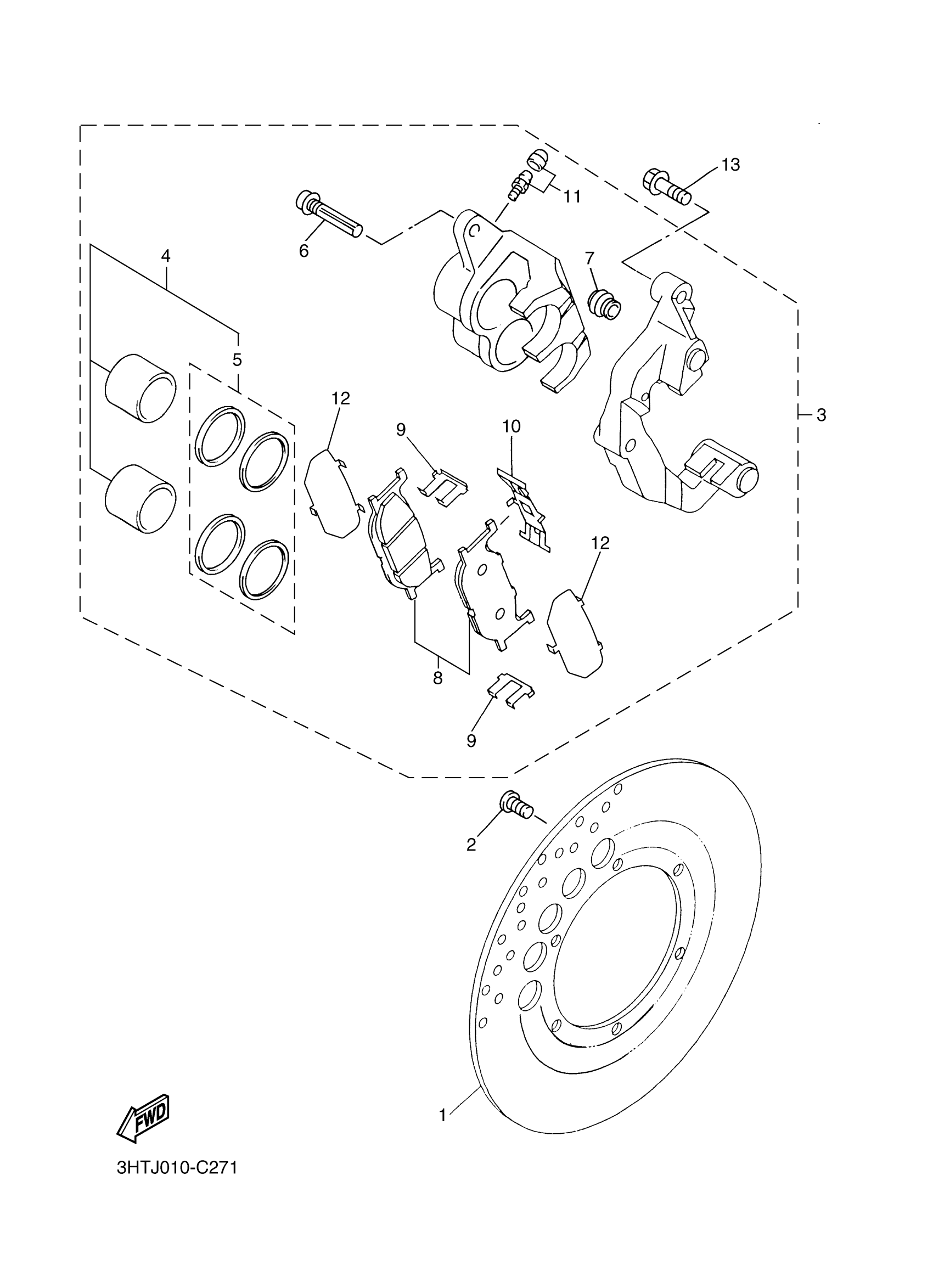

Yamaha SR400JL (SR400) 2RDG 2018 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

3JB-2582U-10-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08080-00

$2.17

CALIPER ASSY (RIGHT)

3HT-2580U-21-00

Unavailable

PISTON ASSY, CALIPER

3YX-W0057-00-00

Unavailable

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

3LP-25805-00-00

$43.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

4DN-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
