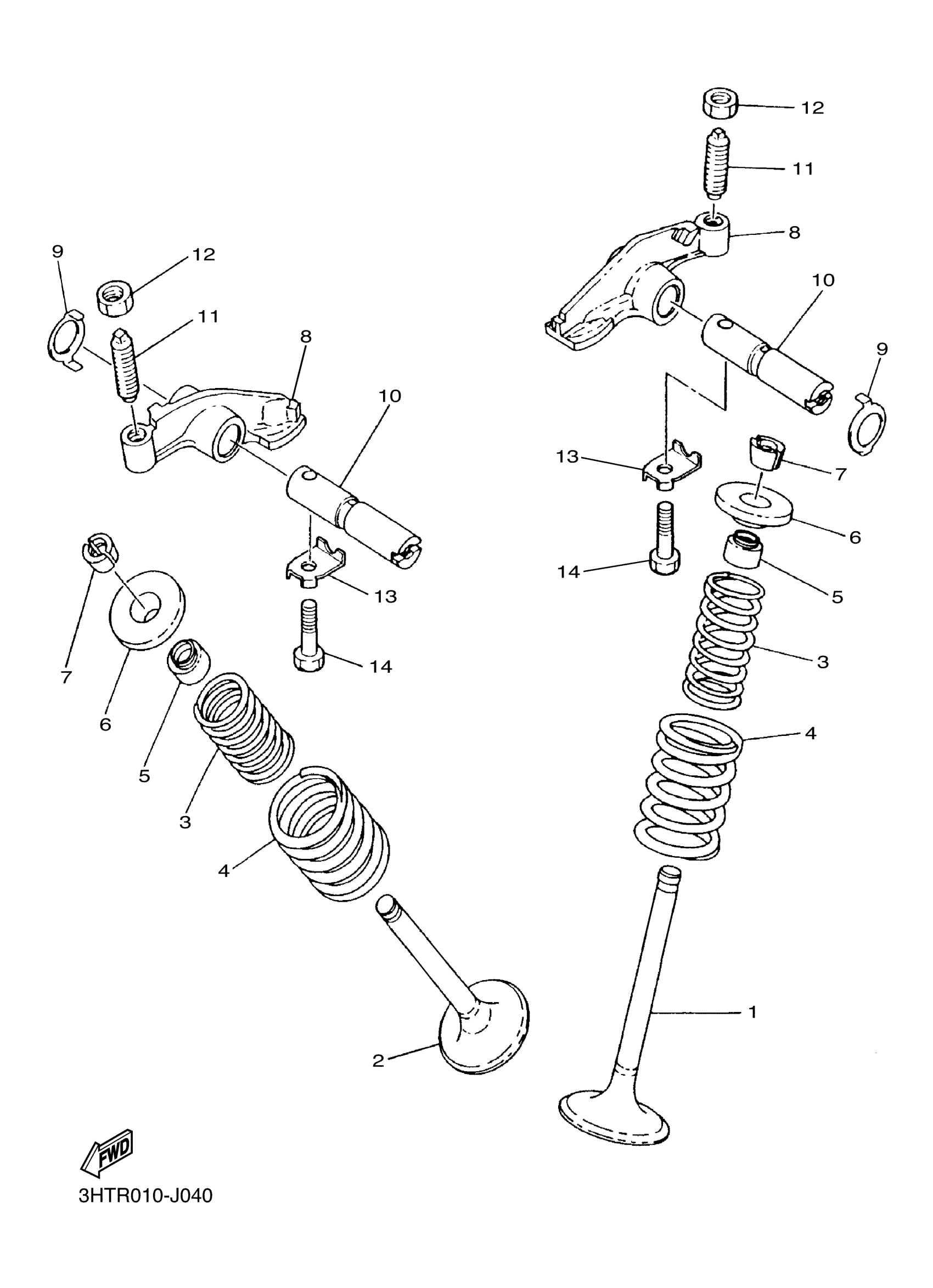

Yamaha SR400HCB (SR400 CA) 2RDE 2017 VALVE Diagram

VALVE, INTAKE

2J2-12111-01-00

$69.99

VALVE, EXHAUST

5A8-12121-00-00

$105.99

SPRING, COMPRESSION (1T1)

90501-31454-00

$14.99

SPRING, COMPRESSION (1T1)

90501-44455-00

$16.99

SEAL, VALVE STEM OIL

341-12119-02-00

$18.49

RETAINER, VALVE SPRING

256-12117-02-00

$15.49

LOCK, VALVE SPRING (447)

341-12118-00-00

$9.99

ARM, VALVE ROCKER

3HT-12151-00-00

$61.99

WASHER, WAVE

90206-12002-00

$3.35

SHAFT, ROCKER 2

583-12156-02-00

$46.99

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$16.49

NUT, HEXAGON

90170-08173-00

$8.49

WASHER, LOCK (3Y3)

90215-06168-00

$3.18

SCREW 341272170000

90153-06008-00

$7.49
