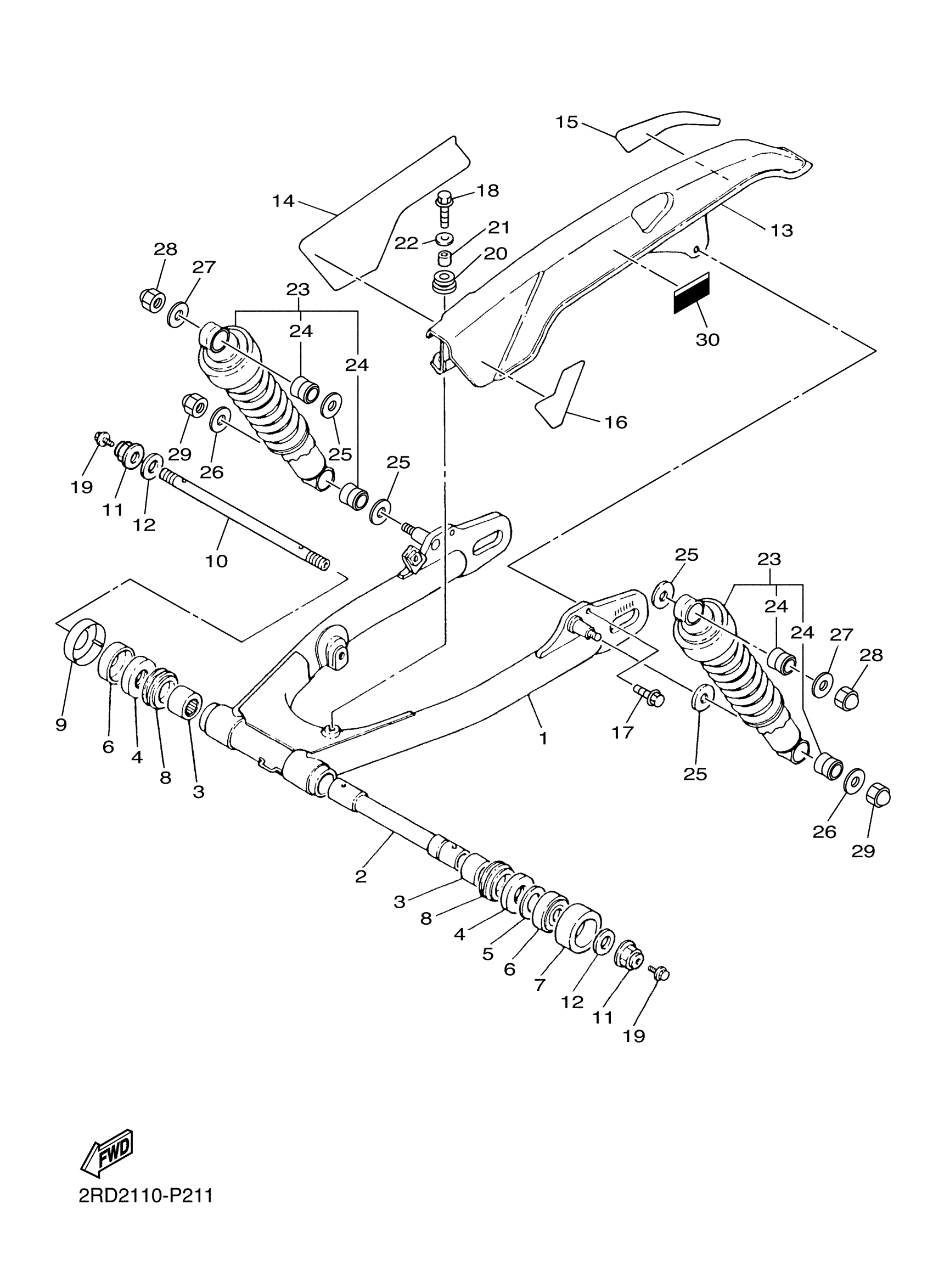

Yamaha SR400HCB (SR400 CA) 2RDE 2017 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
3H0-22110-01-00
Unavailable
2
BUSH 2
33Y-22124-00-00
Unavailable
9
WASHER, PLATE
3HT-22156-10-00
Unavailable
10
SHAFT, PIVOT
33Y-22141-01-00
Unavailable
11
NUT, U
95604-16100-00
Unavailable
13
CHAIN CASE
2J2-22311-01-00
Unavailable
14
DAMPER 1
3HT-2214F-00-00
Unavailable
15
DAMPER 2
3HT-2214G-00-00
Unavailable
16
SEAL 1
3HT-22358-00-00
Unavailable
17
BOLT, FLANGE
95817-06014-00
Unavailable
18
BOLT, FLANGE
95817-06020-00
Unavailable
19
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
20
GROMMET
90480-13014-00
Unavailable
21
COLLAR (3H5)
90387-060A3-00
Unavailable
22
WASHER, PLATE
90201-06M02-00
Unavailable
23
SHOCK ABSORBER ASSY, REAR
1JN-22210-20-00
Unavailable
24
BUSH, REAR SHOCK ABSORBER
447-22216-20-00
Unavailable
25
WASHER PLATE 148272190000
90201-14215-00
Unavailable
26
WASHER, PLATE (2J2)
90201-10696-00
Unavailable
27
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
28
NUT, CAP (371)
90176-10009-00
Unavailable
29
NUT, CROWN(3BM)
90176-10073-00
Unavailable
30
LABEL, TIRE
2RD-21668-00-00
Unavailable
