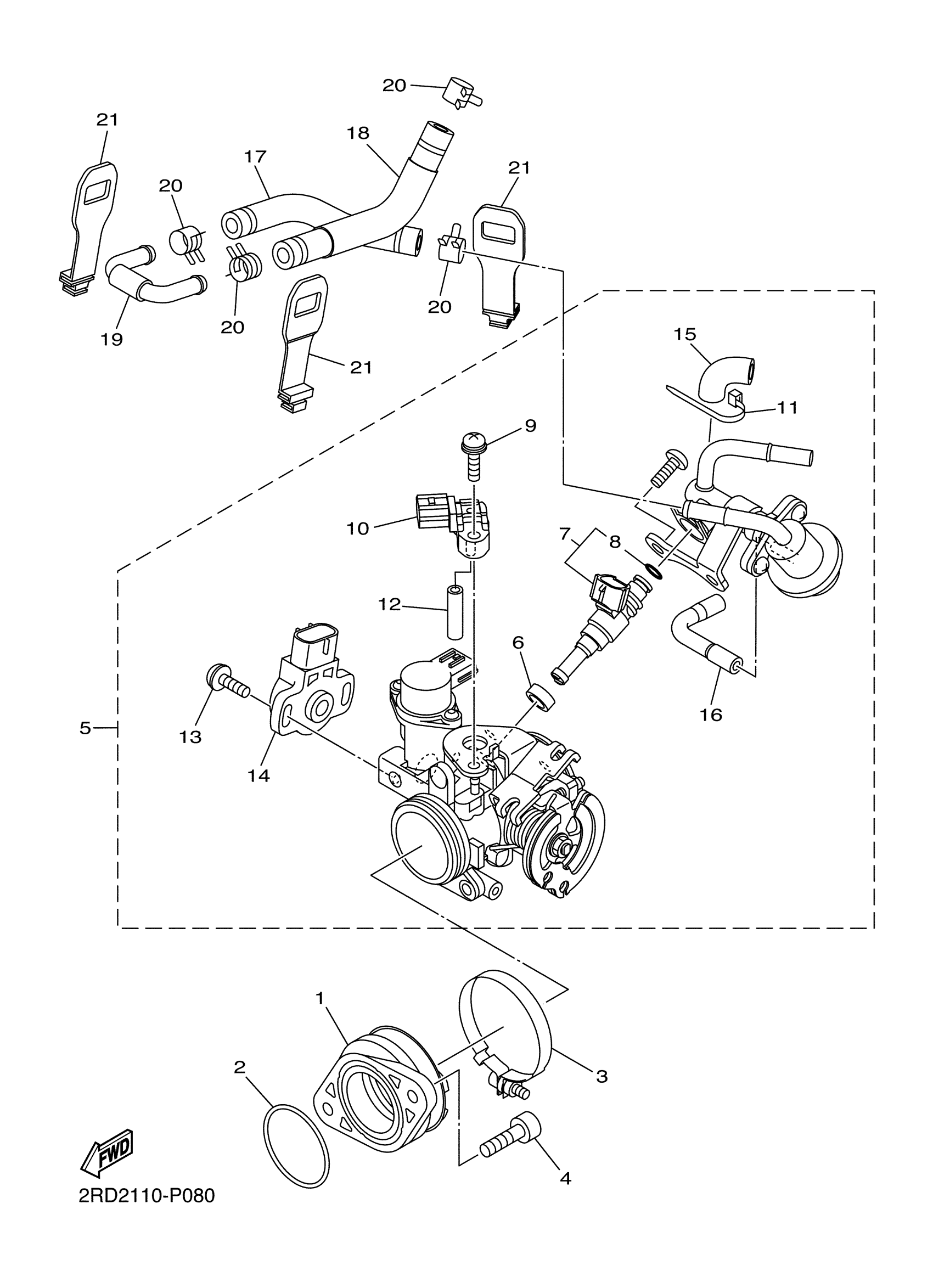

Yamaha SR400HCB (SR400 CA) 2RDE 2017 INTAKE 2 Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

3HT-13586-R0-00

Unavailable

2

O-RING(36Y)

93210-40659-00

Unavailable

3

HOSE CLAMP ASSY

90450-54006-00

$14.99

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

THROTTLE BODY ASSY

3HT-13750-R1-00

Unavailable

6

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

7

INJECTOR ASSY

4C8-13761-00-00

$171.99

8

O-RING

5PS-14147-00-00

$13.49

9

SCREW

2C0-14216-00-00

$3.28

10

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

11

CLIP

4KM-14137-00-00

$5.49

12

PIPE 1

5FL-14348-10-00

$5.49

13

SCREW

8CC-14216-10-00

$7.99

14

THROTTLE SENSOR ASSY

3P6-85885-01-00

Unavailable

15

HOSE

3D7-14987-00-00

Unavailable

16

HOSE, VACUUM SENSING 2

3HT-13544-R0-00

Unavailable

17

PIPE, FUEL 2

2RD-13972-00-00

Unavailable

18

PIPE, FUEL 3

2RD-13973-00-00

Unavailable

19

NIPPLE ASSY

3HT-14389-R0-00

Unavailable

20

CLIP

90467-12003-00

Unavailable

21

COVER 2

5JW-1479J-02-00

Unavailable
