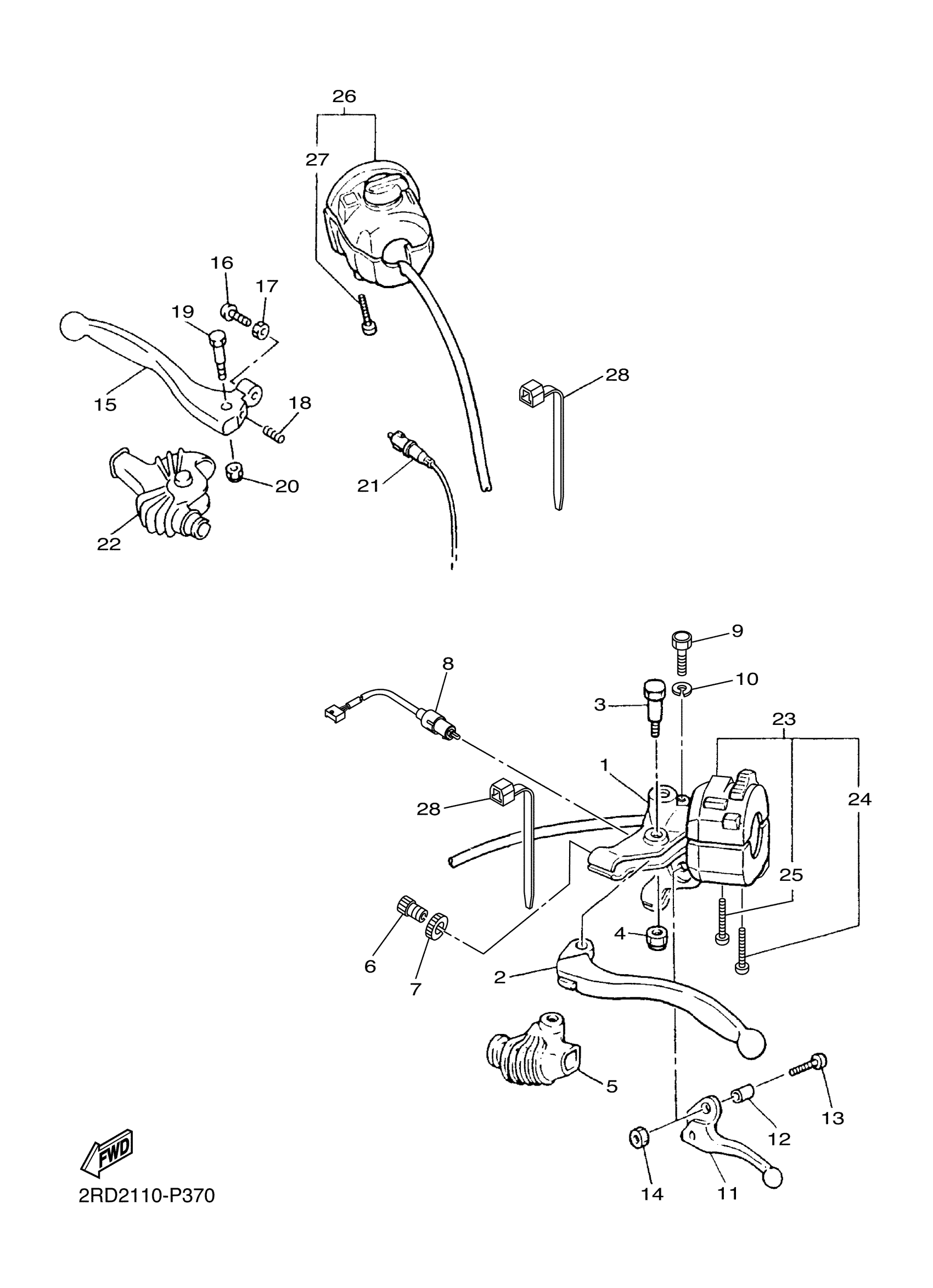

Yamaha SR400HCB (SR400 CA) 2RDE 2017 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

3HT-82911-00-00

$41.99

2

LEVER 1

2HT-83912-01-00

$39.99

3

BOLT, LEVER

3HT-83945-00-00

$5.49

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

COVER, LEVER

1E6-26372-00-00

$23.99

6

BOLT

90123-08002-00

$10.49

7

NUT

90179-08030-00

$5.49

8

SWITCH

3HT-82917-00-00

Unavailable

9

BOLT, HEXAGON

97007-06022-00

Unavailable

10

WASHER, SPRING

92907-06100-00

$4.25

11

LEVER, DECOMPRESSION

583-83981-00-00

$25.99

12

COLLAR, LEVER 1

5BE-83913-00-00

$4.84

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

NUT, U

95617-05100-00

$9.49

15

LEVER 2

38W-83922-01-00

$62.99

16

SCREW (2L0)

90149-06131-00

Unavailable

17

NUT

90170-06021-00

Unavailable

18

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

19

BOLT (4L0)

90109-06577-00

Unavailable

20

NUT, SELF-LOCKING

95617-06100-00

$8.49

21

FRONT STOP SWITCH ASSY

3HT-83980-00-00

Unavailable

22

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

23

SWITCH, HANDLE 4

2RD-83972-00-00

Unavailable

24

SCREW, PAN HEAD

98517-05030-00

Unavailable

25

SCREW, PAN

98507-05035-00

Unavailable

26

SWITCH, HANDLE 1

2RD-83976-00-00

Unavailable

27

SCREW, PAN HEAD

98517-05030-00

Unavailable

28

CLAMP(4FM)

90464-15195-00

Unavailable
