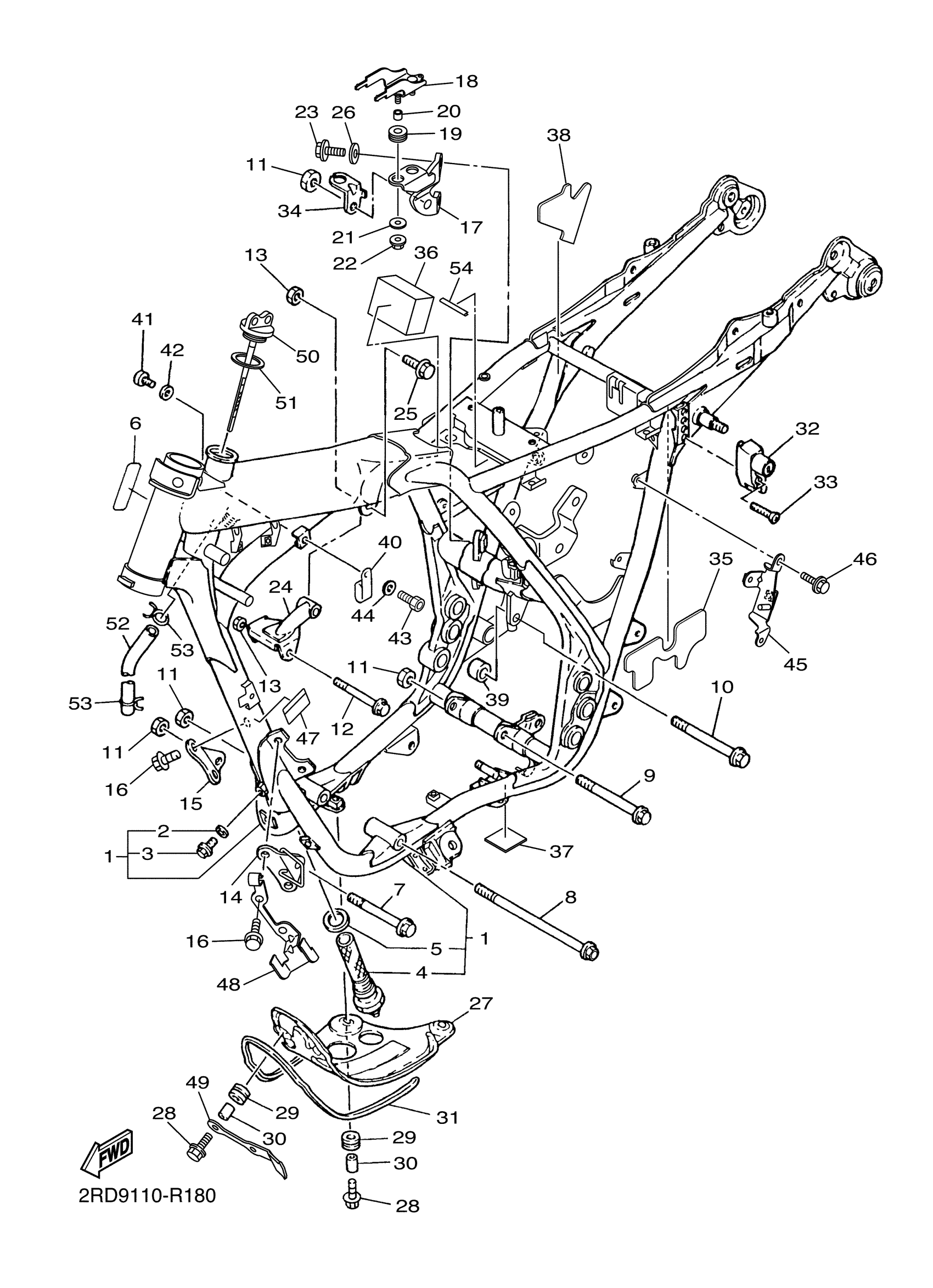

Yamaha SR400HCB (SR400 CA) 2RDE 2017 FRAME Diagram
#
1
FRAME COMP.
2RD-21110-10-00
Unavailable
6
PROTECTOR
3D8-2117G-00-00
Unavailable
8
BOLT, FLANGE
90105-10370-00
Unavailable
10
BOLT(30W)
90109-101A0-00
Unavailable
16
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
17
STAY, ENGINE 3
3HT-21317-00-00
Unavailable
18
BRACKET
3HT-2134V-00-00
Unavailable
19
GROMMET (4N0)
90480-10289-00
Unavailable
20
COLLAR(4DN)
90387-0600V-00
Unavailable
21
WASHER, PLATE
90201-06095-00
Unavailable
22
NUT,SELF-LOCKING
95607-06200-00
Unavailable
23
BOLT, FLANGE
90105-08129-00
Unavailable
24
STAY, ENGINE 5
2J2-21318-10-00
Unavailable
25
BOLT, FLANGE
95817-08035-00
Unavailable
26
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
27
PROTECTOR, ENGINE
3GW-21471-00-33
Unavailable
28
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
29
GROMMET (3X4)
90480-13275-00
Unavailable
30
COLLAR (3H5)
90387-060A3-00
Unavailable
31
TRIM
52E-28376-00-00
Unavailable
32
HELMET HANGER ASSY
4R8-21308-01-00
Unavailable
33
SCREW, COUNTERSUNK
90151-06077-00
Unavailable
34
STAY, STOP SWITCH
2J2-2144G-00-00
Unavailable
35
DAMPER
3HT-2139X-01-00
Unavailable
36
DAMPER
3HT-2113B-00-00
Unavailable
37
DAMPER, SEAT
3KJ-24723-00-00
Unavailable
38
COVER
3HT-2117F-10-00
Unavailable
39
COLLAR, REAR ENGINE STAY
2J2-21459-01-00
Unavailable
40
CLAMP(83R)
90461-08113-00
Unavailable
41
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
42
WASHER(1RW)
92907-05600-00
Unavailable
43
BOLT
97027-05010-00
Unavailable
44
WASHER(1RW)
92907-05600-00
Unavailable
45
STAY 1
3HT-2137F-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
50
BODY, CAP
2J2-21771-10-00
Unavailable
51
GASKET (583 OIL TANK CAP)
90430-27124-00
Unavailable
52
HOSE (L200)
90445-11289-00
Unavailable
53
CLIP
90467-100A1-00
Unavailable
54
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
