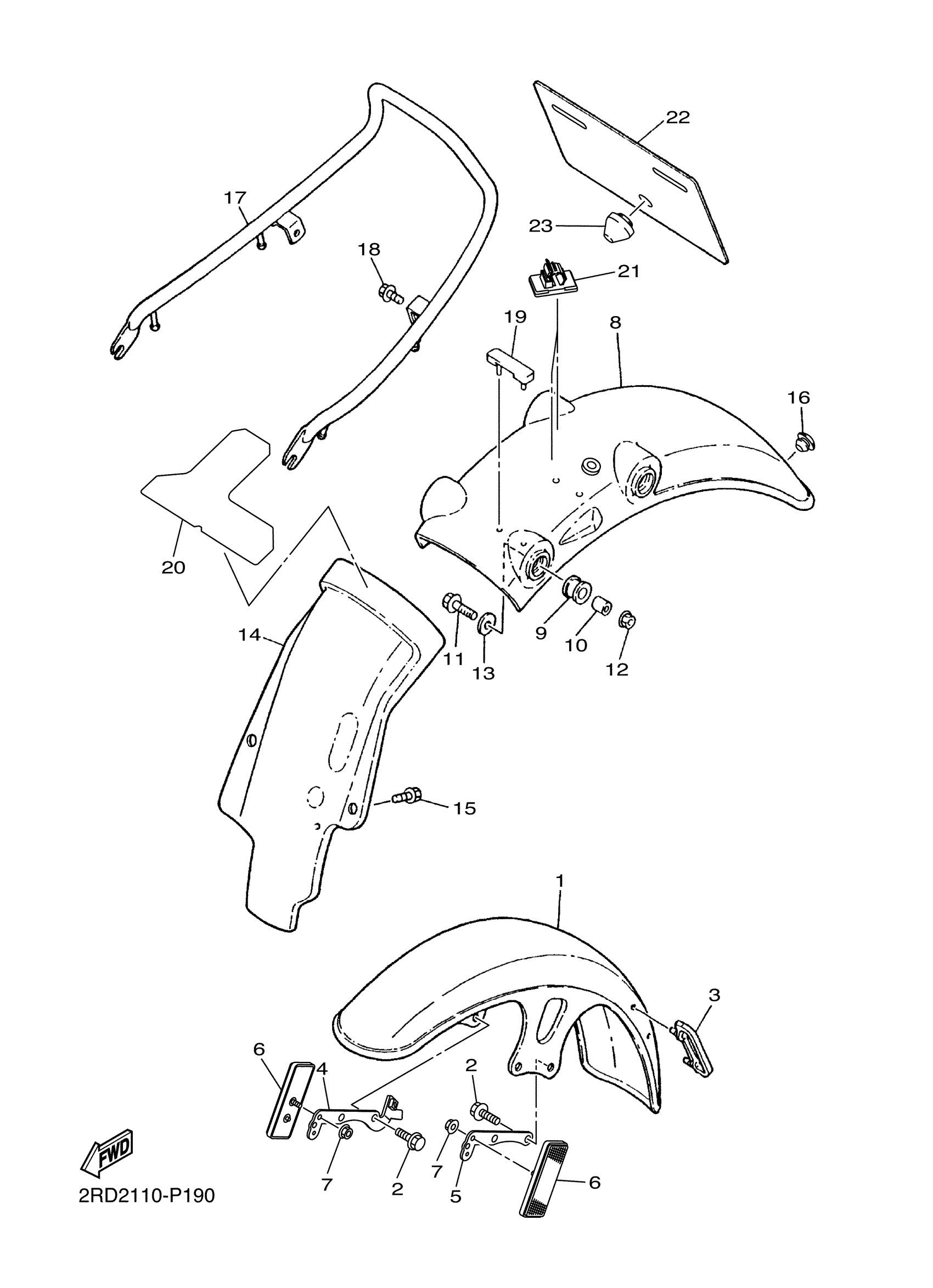

Yamaha SR400HCB (SR400 CA) 2RDE 2017 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1JN-21510-20-93

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

HOLDER, CABLE

3Y6-21518-00-00

Unavailable

4

HOLDER, BRAKE HOSE

2RD-25887-00-00

Unavailable

5

HOLDER, BRAKE HOSE

2RD-2588F-00-00

Unavailable

6

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

7

NUT, FLANGE(3GM)

95707-05500-00

$8.49

8

REAR FENDER COMP.

2J2-21610-11-93

Unavailable

9

DAMPER, REAR

168-21639-00-00

$10.99

10

COLLAR (437)

90387-08258-00

$10.49

11

BOLT, FLANGE

95817-08035-00

$9.49

12

NUT, FLANGE(JN5)

95707-08500-00

$3.13

13

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

14

GUARD, MUD

2J2-21629-01-00

Unavailable

15

BOLT, WITH WASHER

90119-06152-00

$7.49

16

PLUG 288833190000

90338-07043-00

Unavailable

17

STAY, REAR

3GW-21645-01-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

19

CLAMP, WIRE

3HT-21637-00-00

Unavailable

20

SEAL

3HT-21669-00-00

Unavailable

21

CLAMP(1NL)

90464-62085-00

Unavailable

22

PLATE, NUMBER SUPP

2RD-28189-00-00

Unavailable

23

DAMPER

3HT-21649-00-00

Unavailable
