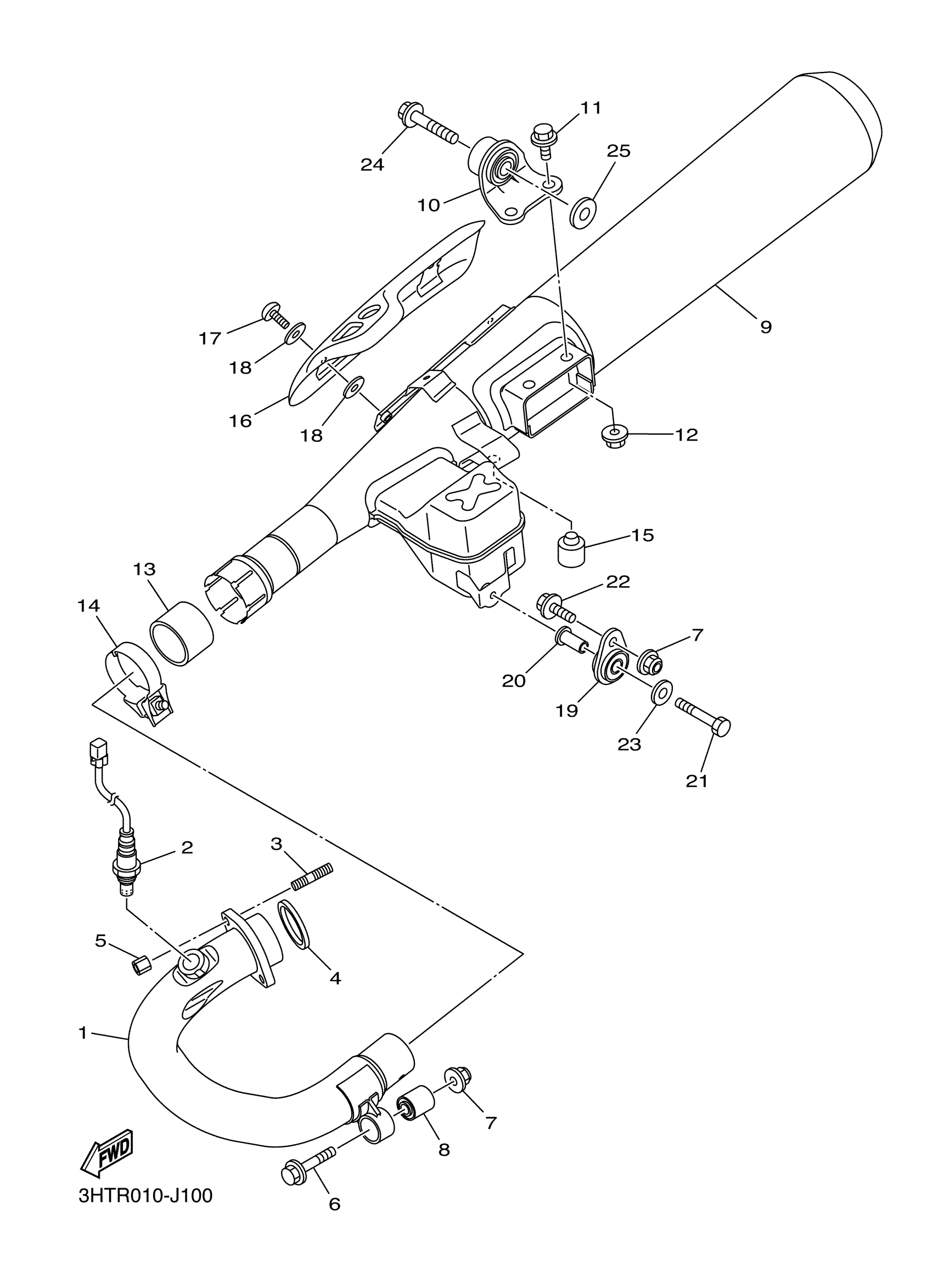

Yamaha SR400HCB (SR400 CA) 2RDE 2017 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

3HT-14611-R0-00

$337.99

2

SENSOR, OXYGEN

3HT-8592A-00-00

Unavailable

3

BOLT, STUD(3EB)

90116-08617-00

$2.17

4

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

5

NUT (371)

90179-08004-00

$9.49

6

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

DAMPER, MUFFLER

3HT-14737-R0-00

Unavailable

9

MUFFLER COMP. 1

3HT-14703-R0-00

Unavailable

10

STAY, MUFFLER 1

3HT-14771-R1-00

Unavailable

11

BOLT, FLANGE

95817-10020-00

$8.49

12

NUT, FLANGE(8AB)

95707-10500-00

$3.18

13

GASKET, MUFFLER

3GW-14714-00-00

$36.99

14

BAND, SILENCER

2J2-14788-01-00

$23.99

15

STOPPER, MAIN STAND

1A0-27114-00-00

$17.49

16

PROTECTOR, MUFFLER 1

3HT-14718-R0-00

Unavailable

17

SCREW, BIND(1JK)

98980-06010-00

Unavailable

18

WASHER, PLATE

90201-05017-00

Unavailable

19

STAY, MUFFLER

3HT-14791-R1-00

Unavailable

20

COLLAR (2J2)

90387-08664-00

Unavailable

21

BOLT

97017-08035-00

Unavailable

22

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

23

WASHER (1T1)

90201-08649-00

Unavailable

24

BOLT, FLANGE(MG5)

95817-12045-00

Unavailable

25

WASHER, PLATE(2JG)

90201-126L0-00

Unavailable
