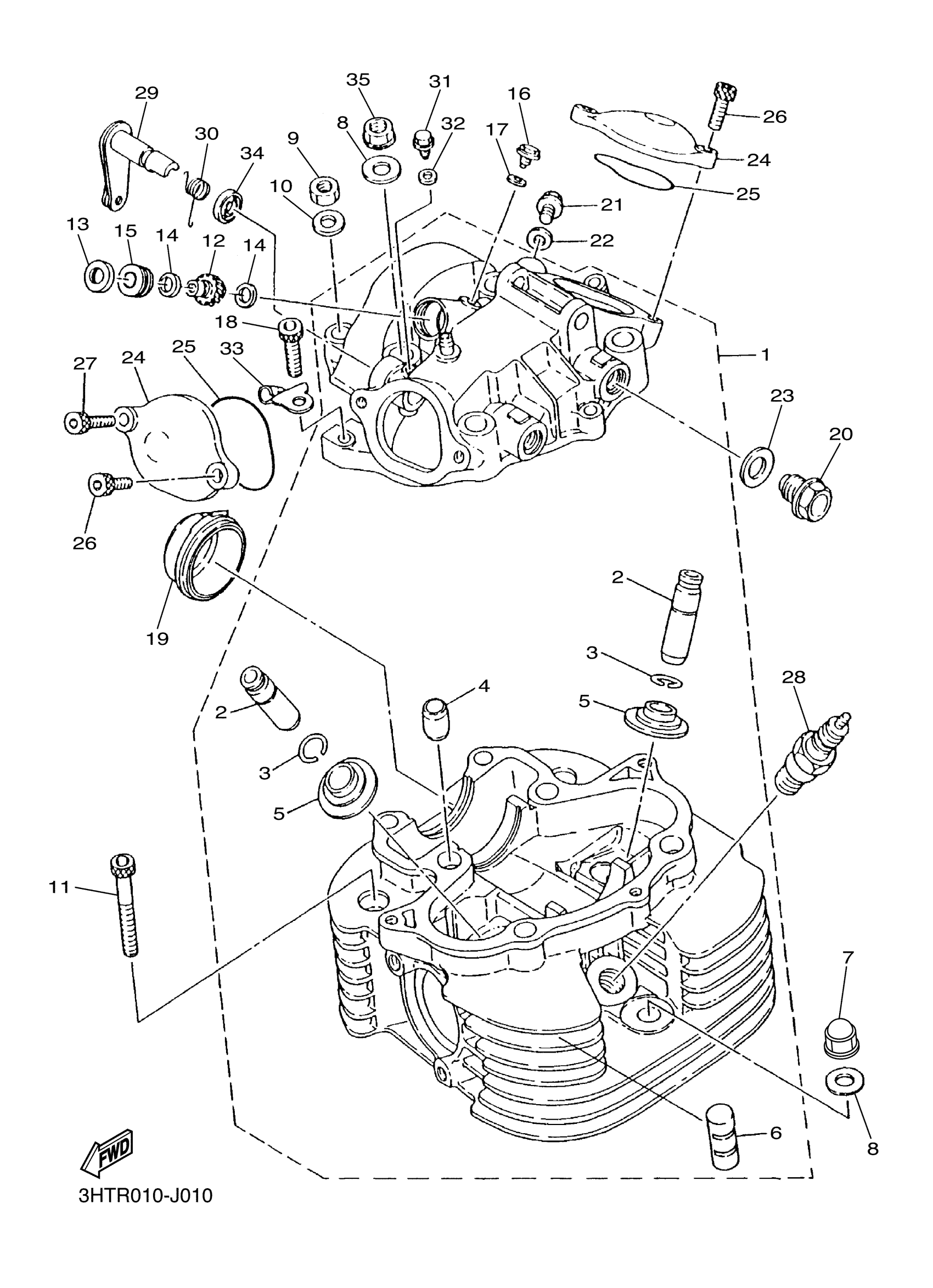

Yamaha SR400HCB (SR400 CA) 2RDE 2017 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3HT-11101-R9-00

Unavailable

2

GUIDE, INTAKE VALVE (1ST O/S)

4X7-11133-10-00

$69.99

3

CIRCLIP (4X7)

93440-14086-00

$9.49

4

PIN, DOWEL

99530-14016-00

$3.80

5

SEAT, VALVE SPRING

4X7-12116-00-00

$14.49

6

ABSORBER

583-11127-00-00

$7.99

7

NUT, CROWN

90176-10005-00

$2.02

8

WASHER, PLATE 3711117500

90201-10124-00

$9.49

9

NUT

95302-08600-00

$9.49

10

WASHER, PLATE

90201-08081-00

Unavailable

11

TORNILLO ALLEN

91312-06055-00

$5.60

12

GEAR, DRIVEN

1E6-17841-00-00

Unavailable

13

OIL SEAL (30X)

93102-08307-00

$7.49

14

WASHER PLATE 141181390000

90201-08085-00

$9.49

15

BUSHING, TACHOMETER GEAR

1E6-17843-00-00

Unavailable

16

BOLT

90109-06276-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

19

PLUG, VIEWER

2J2-11197-00-00

Unavailable

20

PLUG (583 ROCKER SHAFT)

90340-14038-00

Unavailable

21

BOLT, FLANGE

95824-08012-00

Unavailable

22

GASKET

90430-08119-00

Unavailable

23

GASKET 256131670000

90430-14043-00

Unavailable

24

COVER, CYLINDER HEAD SIDE

2J2-11186-00-00

Unavailable

25

O-RING (583 CYL. HEAD SIDE COV

93210-49296-00

Unavailable

26

BOLT, SOCKET

91314-06018-00

Unavailable

27

BOLT, SOCKET

91314-06016-00

Unavailable

28

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

Unavailable

29

CAM, DECOMPRESSION

583-12288-01-00

Unavailable

30

SPRING, TORSION (583)

90508-16303-00

Unavailable

31

BOLT

90109-06276-00

Unavailable

32

GASKET 256113960000

90430-06014-00

Unavailable

33

BRACKET, DECOMPRESSION

583-12283-00-00

Unavailable

34

OIL SEAL (1.2X17X2.5-583)

93104-12054-00

Unavailable

35

NUT (2Y5)

90179-10279-00

Unavailable
