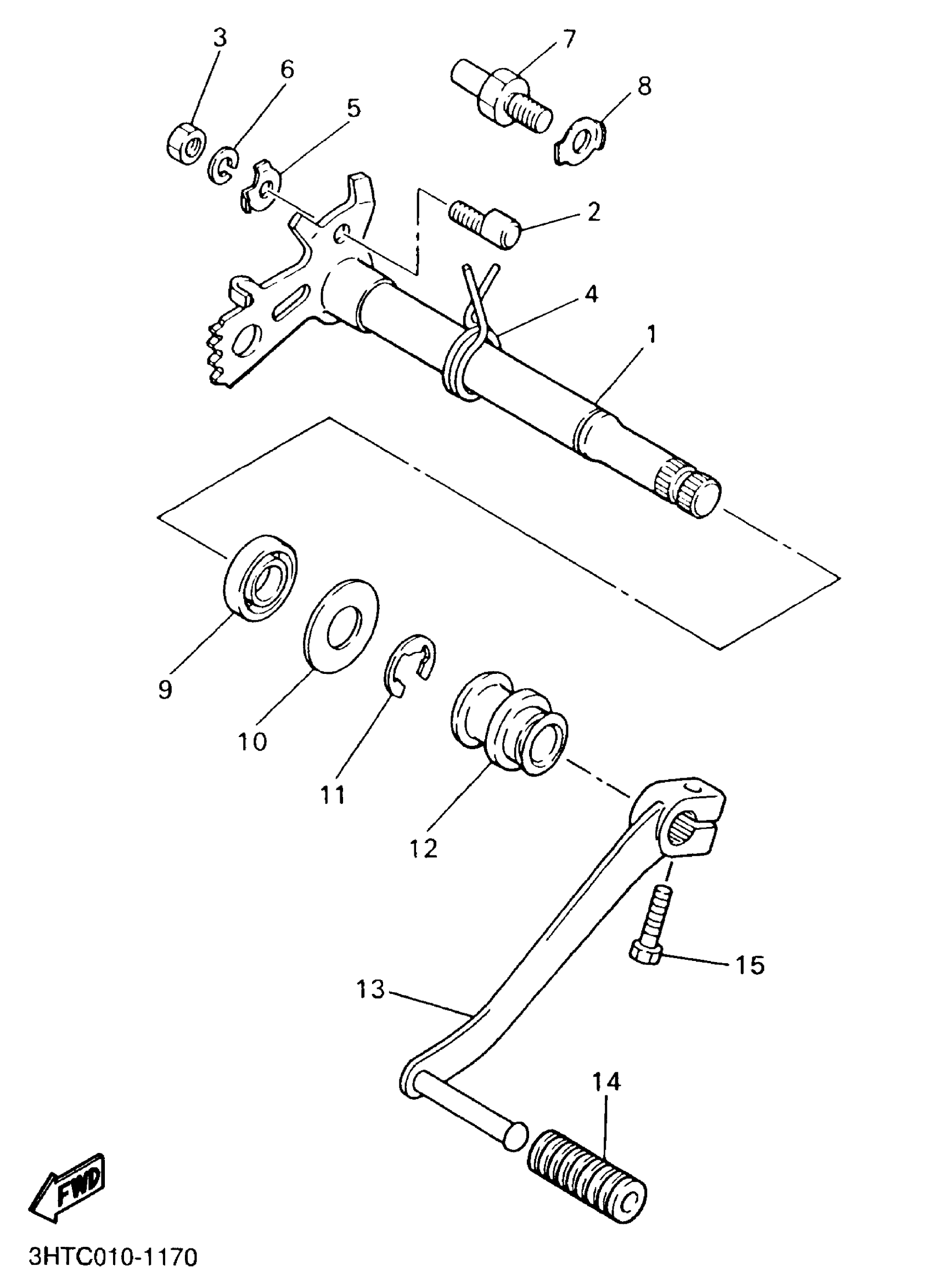

Yamaha SR400GCB (SR400 CA) 2RDA 2016 SHIFT SHAFT Diagram

SHIFT SHAFT COMP.

2J2-18103-00-00

$95.99

SCREW 214181860000

90149-06017-00

$7.49

NUT(6TA)

95317-06600-00

$3.55

SPRING TORSION 214181240000

90508-32052-00

$7.49

WASHER, LOCK

90215-06016-00

$3.50

WASHER, SPRING

92907-06100-00

$4.25

STOPPER, SCREW

3HT-18127-R0-00

Unavailable

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

WASHER PLATE 248181370000

90201-14220-00

$8.49

. CIRCLIP

99001-12600-00

Unavailable

BOOTS, SEALING

583-18131-00-00

$17.49

PEDAL, SHIFT

2J2-18111-01-00

$51.99

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

BOLT,SOCKET HEAD

91314-06020-00

$1.49
