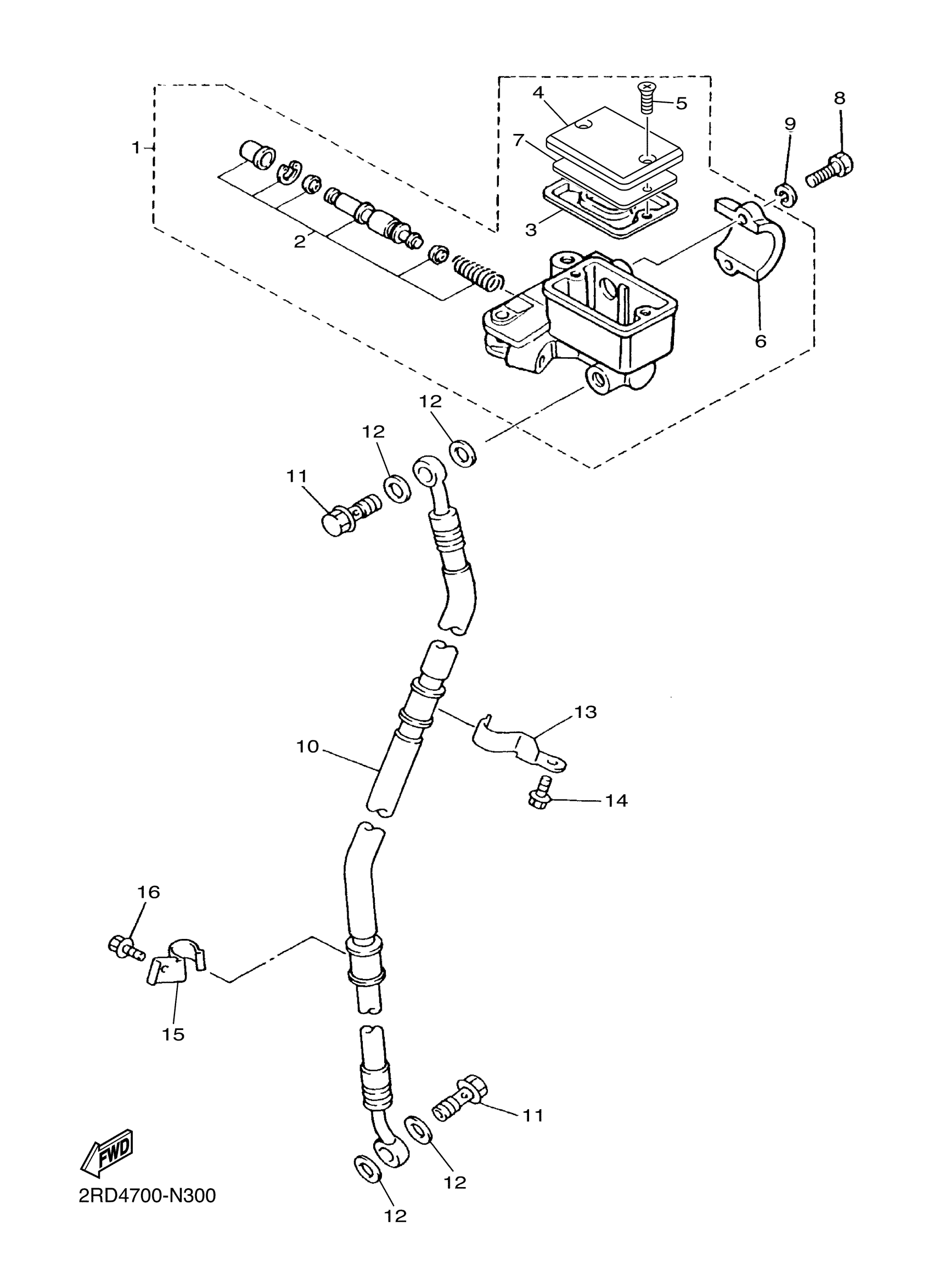

Yamaha SR400GCB (SR400 CA) 2RDA 2016 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HT-2583T-00-00

Unavailable

2

CYLINDER KIT, MASTER

4H7-W0041-00-00

$88.99

3

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

4

CAP, RESERVOIR

4HM-25852-01-00

$29.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

PLATE, DIAPHRAGM

3GM-2585B-10-00

$12.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER(6TA)

92907-06600-00

$2.72

10

HOSE, BRAKE 1

3HT-25872-11-00

Unavailable

11

BOLT, UNION

90401-10020-00

$9.49

12

GASKET

90430-10005-00

$9.49

13

HOLDER, BRAKE HOSE

3HT-25886-00-00

$7.99

14

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

15

HOLDER, WIRE 2

5JX-21598-00-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06010-00

$3.29
