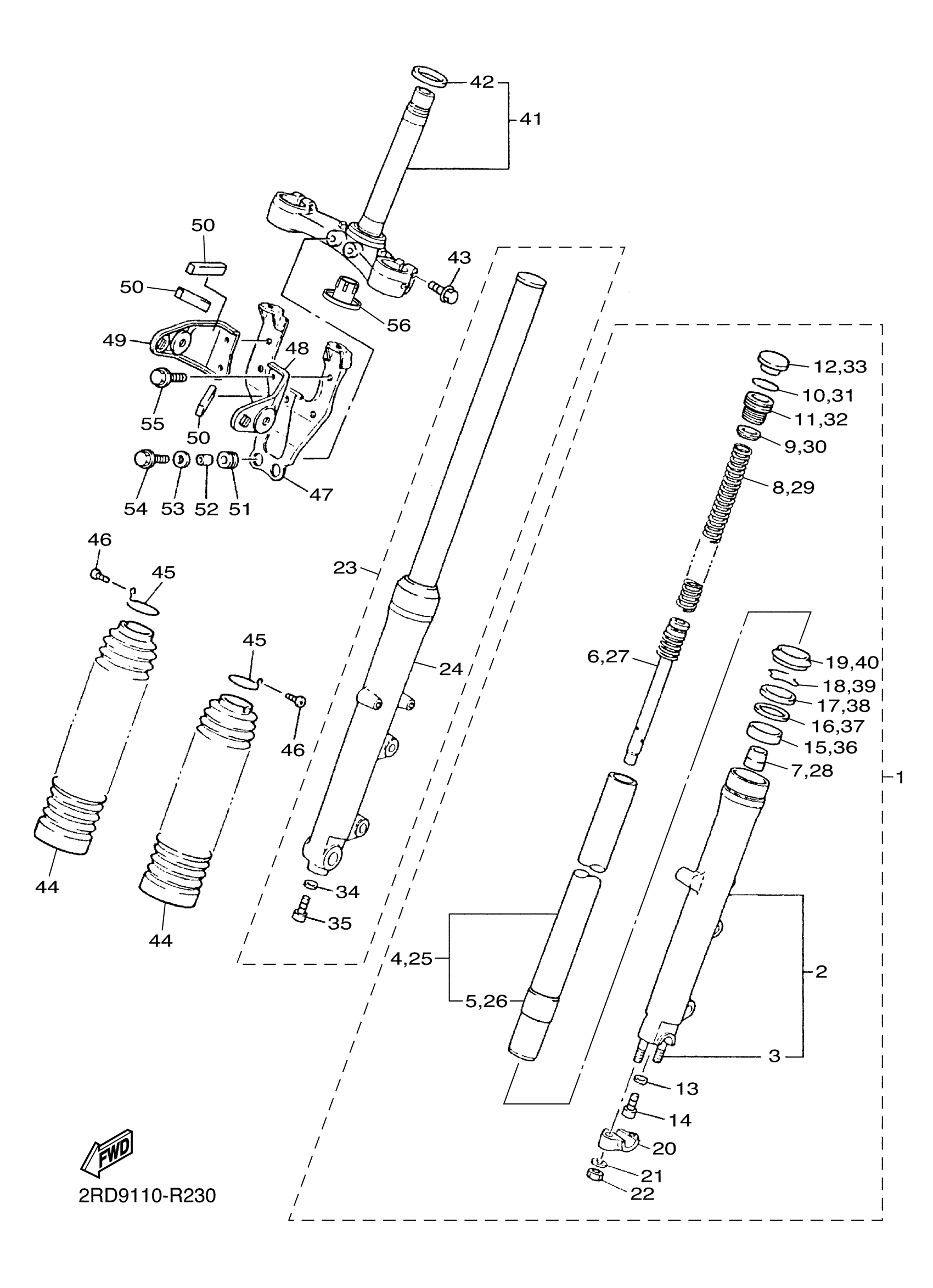

Yamaha SR400GCB (SR400 CA) 2RDA 2016 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
3HT-23102-11-00
Unavailable
2
TUBE, OUTER (LEFT)
3HT-23126-10-00
Unavailable
4
INNER TUBE COMP.1
3HT-23110-10-00
Unavailable
6
CYLINDER COMP., FRONT FORK
3HT-23170-10-00
Unavailable
7
SPINDLE, TAPER
5JX-23173-00-00
Unavailable
8
SPRING, FRONT FORK
3HT-23141-10-00
Unavailable
9
WASHER, SPRING UPPER
1JN-23149-00-00
Unavailable
11
BOLT, CAP
2J4-23111-30-00
Unavailable
16
WASHER, SPRING UPPER
5K5-23149-00-00
Unavailable
17
OIL SEAL
5JX-23145-00-00
Unavailable
18
RING, SNAP
4A1-23156-00-00
Unavailable
19
SEAL, DUST
5JX-23144-00-00
Unavailable
20
HOLDER,AXLE
341-23167-50-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
NUT
3HT-23357-10-00
Unavailable
23
FRONT FORK ASSY (R.H)
3HT-23103-11-00
Unavailable
24
TUBE, OUTER (RIGHT)
3HT-23136-10-00
Unavailable
25
INNER TUBE COMP.1
3HT-23110-10-00
Unavailable
27
CYLINDER COMP., FRONT FORK
3HT-23170-10-00
Unavailable
28
SPINDLE, TAPER
5JX-23173-00-00
Unavailable
29
SPRING, FRONT FORK
3HT-23141-10-00
Unavailable
30
WASHER, SPRING UPPER
1JN-23149-00-00
Unavailable
32
BOLT, CAP
2J4-23111-30-00
Unavailable
37
WASHER, SPRING UPPER
5K5-23149-00-00
Unavailable
38
OIL SEAL
5JX-23145-00-00
Unavailable
39
RING, SNAP
4A1-23156-00-00
Unavailable
40
SEAL, DUST
5JX-23144-00-00
Unavailable
41
UNDER BRACKET COMP.
3HT-23340-10-00
Unavailable
42
SEAL, DUST
164-23462-00-00
Unavailable
43
BOLT, FLANGE(4FM)
95814-08035-00
Unavailable
44
BOOT
1JN-23191-00-00
Unavailable
45
BAND
1JN-23192-00-00
Unavailable
46
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
47
COVER, UPPER 1
2J2-23121-04-00
Unavailable
48
COVER, HEADLIGHT
3HT-23131-00-00
Unavailable
49
STAY, HEADLIGHT
3HT-23174-00-00
Unavailable
50
DAMPER 1
3HT-2317J-01-00
Unavailable
51
GROMMET (431)
90480-14052-00
Unavailable
52
COLLAR (8H6)
90387-07573-00
Unavailable
53
WASHER, PLATE
90201-06380-00
Unavailable
54
BOLT, FLANGE
95817-06016-00
Unavailable
55
BOLT, FLANGE
95817-06012-00
Unavailable
56
COVER, LOWER 1
4KM-23123-01-00
Unavailable
