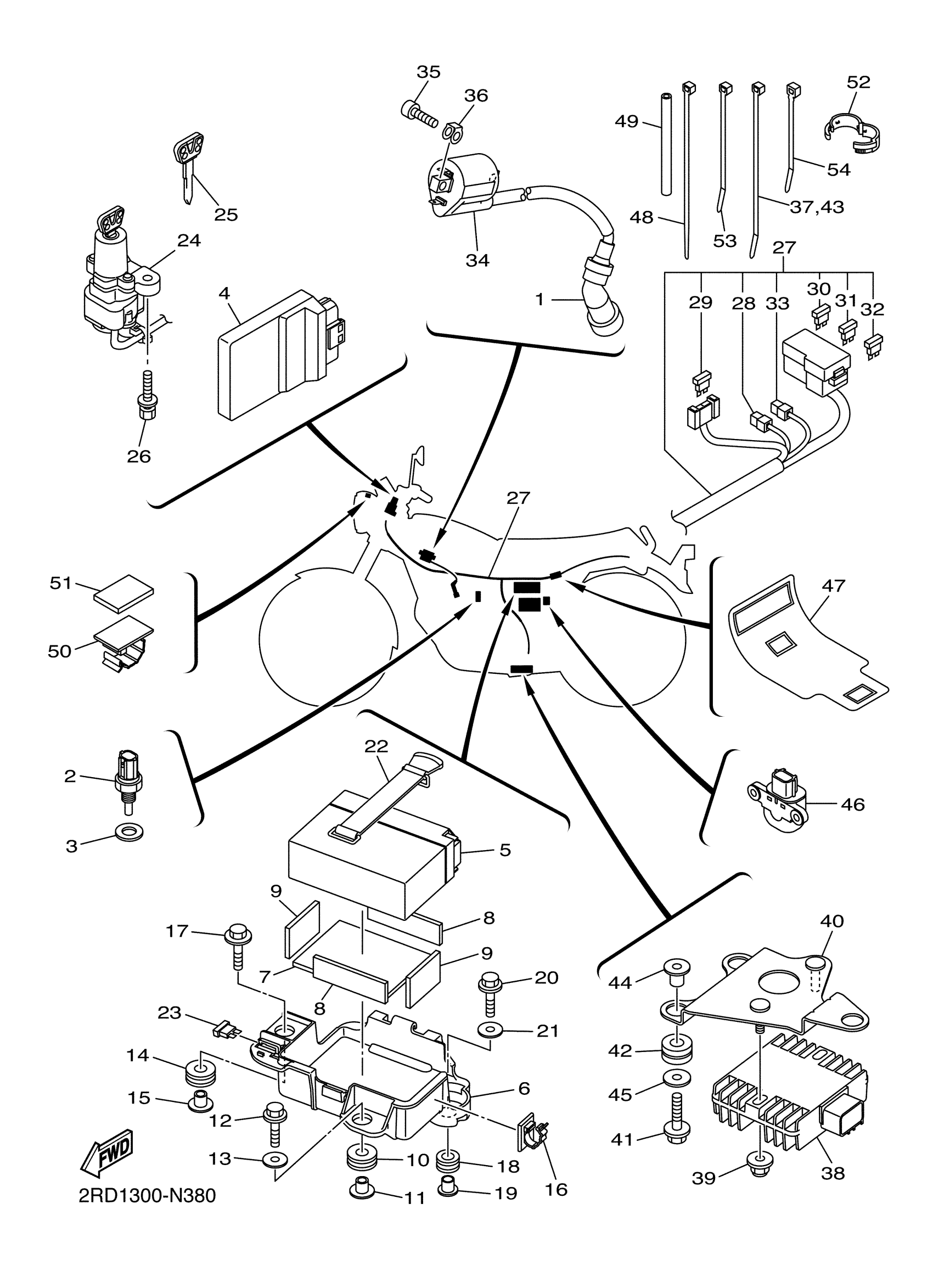

Yamaha SR400GCB (SR400 CA) 2RDA 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

3NS-82370-00-00

$37.99

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

WASHER PLATE 341839090000

90201-10128-00

$4.82

4

ENGINE CONTROL UNIT ASSY

2RD-8591A-01-00

$534.99

5

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

Unavailable

6

BOX, BATTERY 1

3HT-8212B-00-00

Unavailable

7

DAMPER, PLATE

90520-04005-00

Unavailable

8

DAMPER, MUFFLER 2

7NJ-14757-00-00

$2.29

9

DAMPER

5TG-84553-00-00

Unavailable

10

GROMMET

90480-16004-00

$1.01

11

COLLAR(36Y)

90387-067K8-00

$7.49

12

BOLT, FLANGE

90105-06169-00

Unavailable

13

WASHER, PLATE

90201-06380-00

$0.60

14

GROMMET

90480-16004-00

$1.01

15

COLLAR(36Y)

90387-067K8-00

$7.49

16

CLAMP(4FM)

90464-13185-00

Unavailable

17

BOLT, WITH WASHER

90119-06138-00

Unavailable

18

GROMMET

90480-14003-00

Unavailable

19

COLLAR(3LN)

90387-085W0-00

Unavailable

20

BOLT, FLANGE

90105-06169-00

Unavailable

21

WASHER, PLATE

90201-06380-00

$0.60

22

BAND,BATTERY

7H3-82131-00-00

Unavailable

23

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

24

MAIN SWITCH STEERI

2RD-82501-10-00

Unavailable

25

BLANK KEY

4BH-82511-09-00

Unavailable

26

BOLT

90109-08196-00

Unavailable

27

WIRE HARNESS ASSY

2RD-82590-10-00

Unavailable

28

DIODE ASSY

3XV-81980-00-00

Unavailable

29

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

30

FUSE (15A)

67F-82151-50-00

Unavailable

31

. FUSE (10A)

67F-82151-40-00

Unavailable

32

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

33

DIODE ASSY

3WP-81980-00-00

Unavailable

34

IGNITION COIL ASSY

3D8-82310-11-00

Unavailable

35

. BOLT

91380-06020-00

Unavailable

36

DAMPER, IGNITION COIL

4BR-82317-00-00

Unavailable

37

BAND

1UA-82591-00-00

Unavailable

38

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

Unavailable

39

NUT,SELF-LOCKING

95607-06200-00

Unavailable

40

STAY, RECTIFIER

3HT-8711E-10-00

Unavailable

41

BOLT, FLANGE

95817-06025-00

Unavailable

42

GROMET (3X3)

90480-14229-00

Unavailable

43

BAND

1UA-82591-00-00

Unavailable

44

COLLAR

90387-06158-00

Unavailable

45

WASHER, PLATE

90201-06095-00

Unavailable

46

SENSOR, LEAN ANGLE

3HT-82576-00-00

Unavailable

47

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

48

BAND

1UA-82591-00-00

Unavailable

49

HOSE (L200)

90445-07176-00

Unavailable

50

CLAMP

90464-17002-00

Unavailable

51

SEAL 1

5S7-28428-00-00

Unavailable

52

CLAMP

90464-16001-00

Unavailable

53

CLAMP(3XW)

90464-35132-00

Unavailable

54

CLAMP

90465-10098-00

Unavailable
