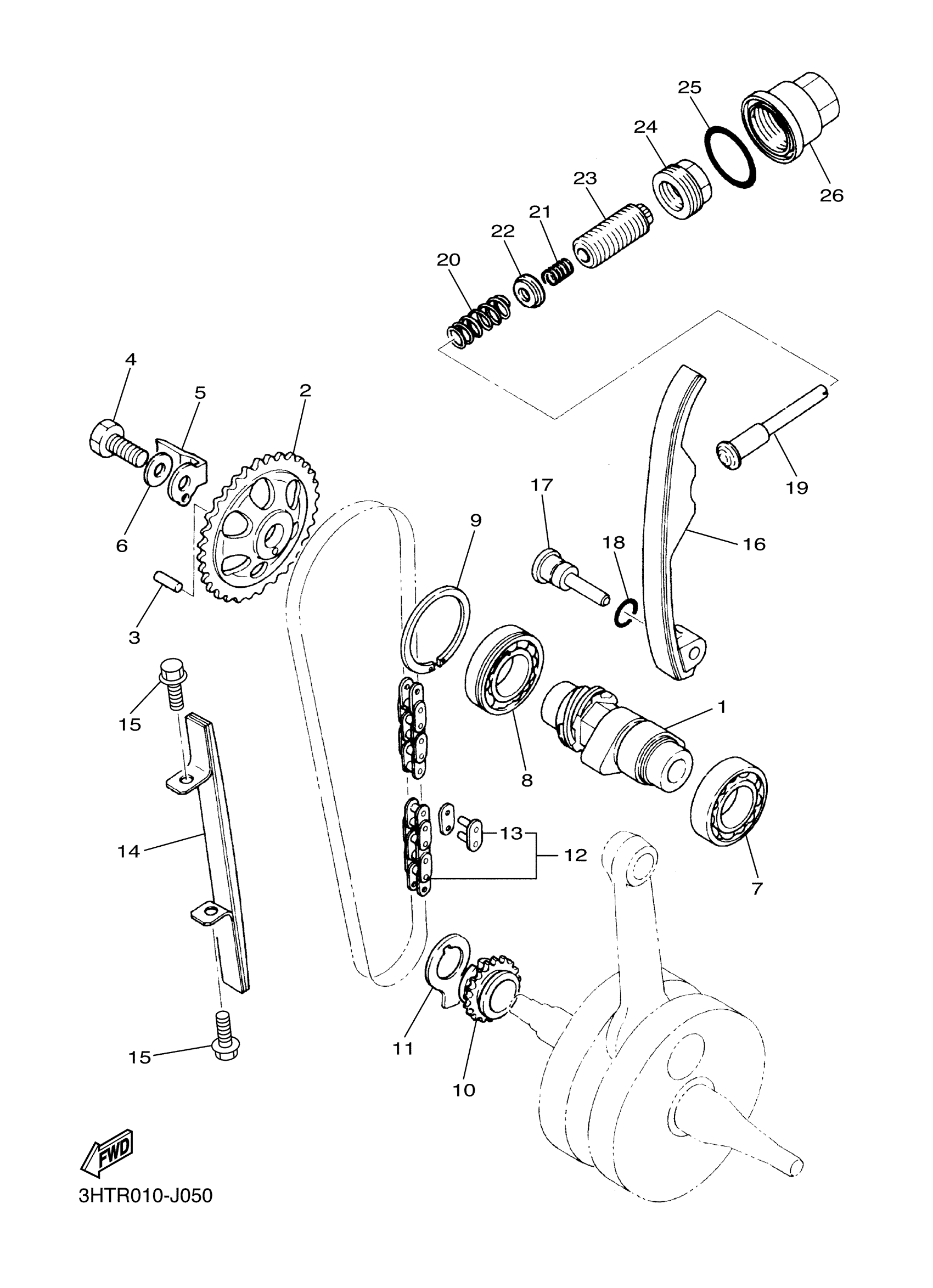

Yamaha SR400GCB (SR400 CA) 2RDA 2016 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5F0-12171-02-00

$137.99

2

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

$93.99

3

PIN, DOWEL (409)

93604-16092-00

$3.18

4

BOLT (583)

90101-10303-00

$9.49

5

PLATE

3HT-12279-00-00

Unavailable

6

WASHER, PLATE (3L6)

90201-10774-00

$9.49

7

BEARING(1FF)

93306-00519-00

$36.99

8

BEARING(1FF)

93306-00519-00

$36.99

9

CIRCLIP (583 CAM SHAFT)

93440-47044-00

$12.49

10

SPROCKET, CAM CHAIN DRIVE

583-11549-00-00

Unavailable

11

PLATE, CAM CHAIN SPROCKET

583-11533-00-00

$6.99

12

CHAIN, CAM SHAFT (583)

94500-02106-00

$68.99

13

JOINT, CHAIN (583)

94600-02001-00

$7.99

14

GUIDE, STOPPER 1

583-12231-01-00

Unavailable

15

BOLT, FLANGE

95022-06016-00

$3.62

16

GUIDE, STOPPER 2

341-12241-04-00

Unavailable

17

SHAFT, CHAIN TENSIONER

583-12247-00-00

Unavailable

18

O-RING (256)

93210-12152-00

Unavailable

19

ROD, CHAIN TENSIONER

583-12217-00-00

Unavailable

20

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

21

SPRING COMPRETION (34F)

90501-23790-00

Unavailable

22

DAMPER, CHAIN TENSIONER ROD

2H0-12232-00-00

Unavailable

23

SCREW (34F)

90149-18191-00

Unavailable

24

NUT (583 CHAIN TENSIONER)

90179-18199-00

Unavailable

25

O-RING (341)

93210-32172-00

Unavailable

26

CASE, CHAIN TENSIONER

1JN-12212-00-00

Unavailable
