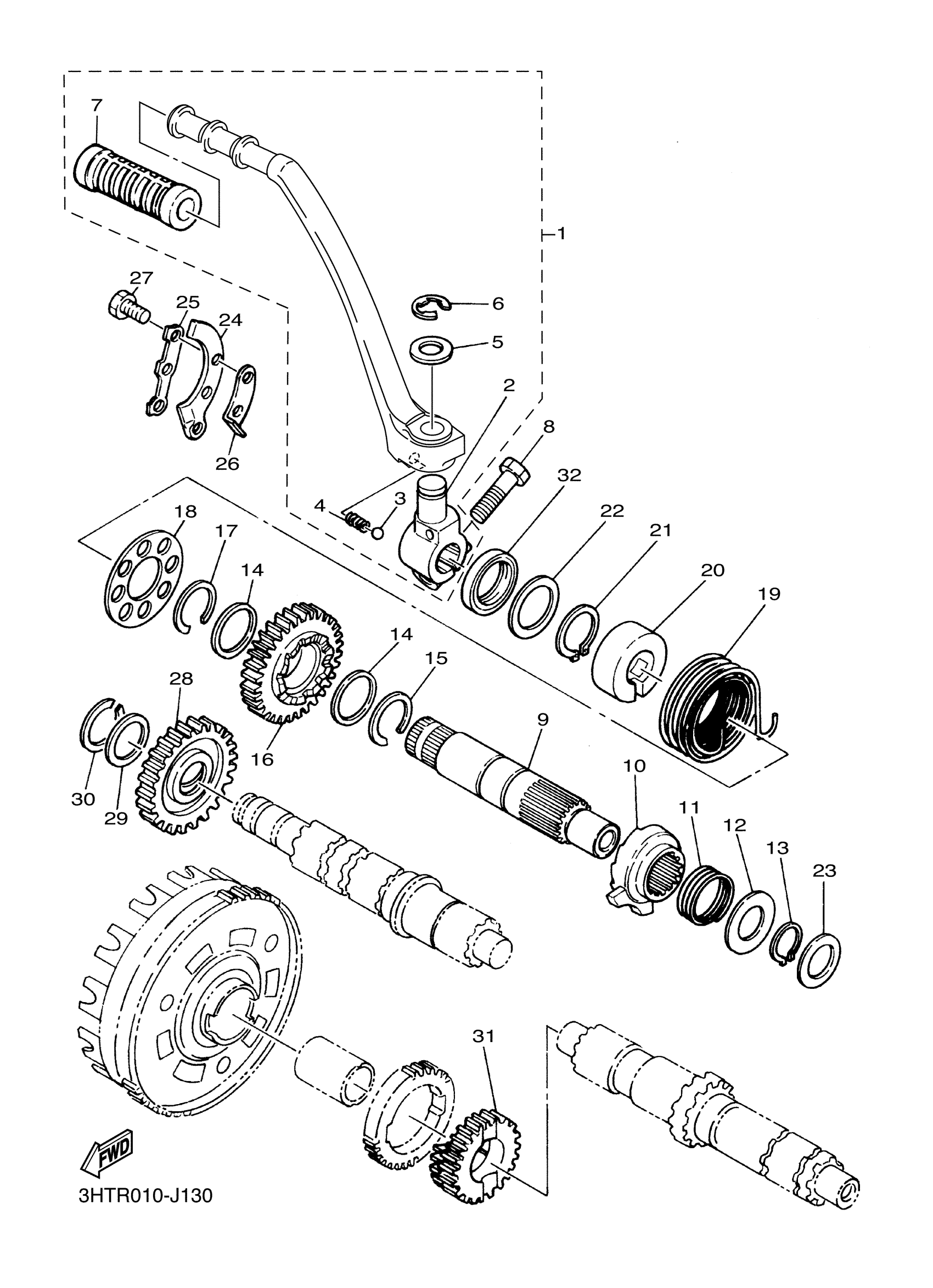

Yamaha SR400FGY (SR400) 2RD2 2015 STARTER Diagram

#

Description
Price

1

KICK CRANK ASSY

3HT-15610-R0-00

Unavailable

2

BOSS, KICK CRANK

583-15621-00-00

$89.99

3

BALL (12R)

93507-32031-00

$4.73

4

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

5

WASHER PLATE 278156130000

90201-15234-00

$8.49

6

CIRCLIP

99006-10600-00

$9.49

7

COVER, KICK CRANK

1T1-15618-00-00

$6.99

8

BOLT

97024-08030-00

$1.11

9

AXLE, KICK

583-15661-00-00

Unavailable

10

WHEEL, RACHET

583-15671-00-00

Unavailable

11

SPRING COMPRESSION363156750000

90501-23143-00

Unavailable

12

COVER, SPRING

363-15676-00-00

$5.49

13

CIRCLIP(1EY)

99009-19400-00

$8.49

14

WASHER, PLATE(59W)

90201-253K0-00

$8.49

15

CIRCLIP

93440-25020-00

$9.49

16

GEAR, KICK

583-15641-00-00

Unavailable

17

CIRCLIP (4L0)

93440-25084-00

Unavailable

18

COVER, SPRING

583-15676-00-00

Unavailable

19

SPRING, TORSION (583 KICK)

90508-32280-00

Unavailable

20

SPACER

90560-25154-00

Unavailable

21

CIRCLIP(JF7)

99009-25400-00

Unavailable

22

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

23

WASHER PLATE 168171160000

90201-20278-00

Unavailable

24

GUIDE, RACHET WHEEL

583-15674-00-00

Unavailable

25

WASHER, LOCK

363-15686-00-00

Unavailable

26

STOPPER

434-15668-00-00

Unavailable

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

GEAR, KICK IDLE

583-15651-00-00

Unavailable

29

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

30

CIRCLIP(1EY)

99009-17400-00

Unavailable

31

GEAR, KICK PINION

3HT-15631-00-00

Unavailable

32

OIL SEAL (25X35X7-256)

93102-25064-00

Unavailable
