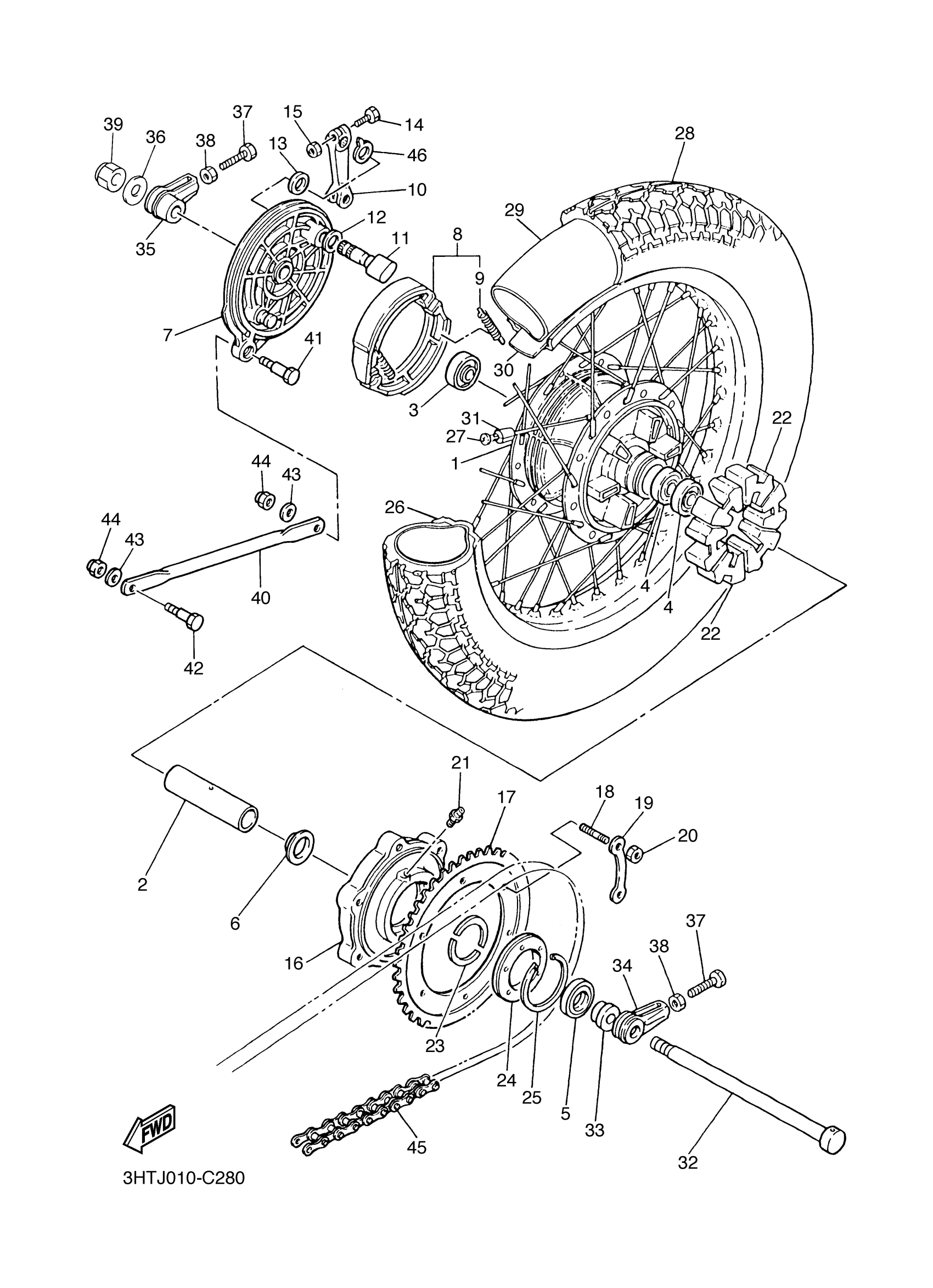

Yamaha SR400FGY (SR400) 2RD2 2015 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR (2J4)

1E6-25311-00-38

Unavailable

2

SPACER

90560-17311-00

Unavailable

3

BEARING

93306-20348-00

$40.99

4

BEARING

93306-20348-00

$40.99

5

OIL SEAL (25X40X8-248)

93102-25061-00

$13.49

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

PLATE, BRAKE

1E6-25321-12-38

Unavailable

8

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

9

SPRING, TENSION 2462533300

90507-20002-00

$8.49

10

LEVER, CAM SHAFT

2J4-25355-00-00

Unavailable

11

CAMSHAFT

4L0-25351-00-00

Unavailable

12

SHIM, CAM SHAFT

148-25353-00-00

$6.99

13

SEAL, CAM SHAFT

148-25359-00-00

$4.78

14

BOLT, HEXAGON (538)

90101-06278-00

$2.17

15

NUT(6TA)

95317-06600-00

$3.55

16

CLUTCH HUB

1E6-25366-00-35

Unavailable

17

SPROCKET, DRIVEN (56T)

3HT-25456-20-00

Unavailable

18

BOLT, STUD (483)

90116-08218-00

Unavailable

19

WASHER

2XJ-25412-00-00

Unavailable

20

NUT (583)

90170-08193-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

DAMPER, CLUTCH

2J2-25364-00-00

Unavailable

23

STOPPER, HUB

1E6-25318-01-00

Unavailable

24

SEAL, HUB DUST

1E6-25319-01-00

Unavailable

25

CIRCLIP (1E6)

93450-78080-00

Unavailable

26

RIM (2.15-18)(48U)

94421-18401-00

Unavailable

27

SPOKE SET, REAR

48U-25304-10-00

Unavailable

28

TIRE (110/90-18M/C 61S BT45R)

94111-18020-00

Unavailable

29

TUBE

94211-18003-00

Unavailable

30

BAND, RIM (2J4)

94340-18086-00

Unavailable

31

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

32

AXLE, WHEEL

150-25381-02-00

Unavailable

33

COLLAR (1E6)

90387-17530-00

Unavailable

34

PULLER, CHAIN 1

48U-25388-00-00

Unavailable

35

PULLER, CHAIN 2

48U-25389-01-00

Unavailable

36

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

37

BOLT

90101-08060-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

NUT, U

95604-16100-00

Unavailable

40

BAR, TENSION

3H0-25371-00-00

Unavailable

41

BOLT

90109-085G1-00

Unavailable

42

BOLT

90109-08003-00

Unavailable

43

WASHER, PLAIN

92903-08200-00

Unavailable

44

NUT, U

95617-08100-00

Unavailable

45

CHAIN

94582-34130-00

Unavailable

46

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable
