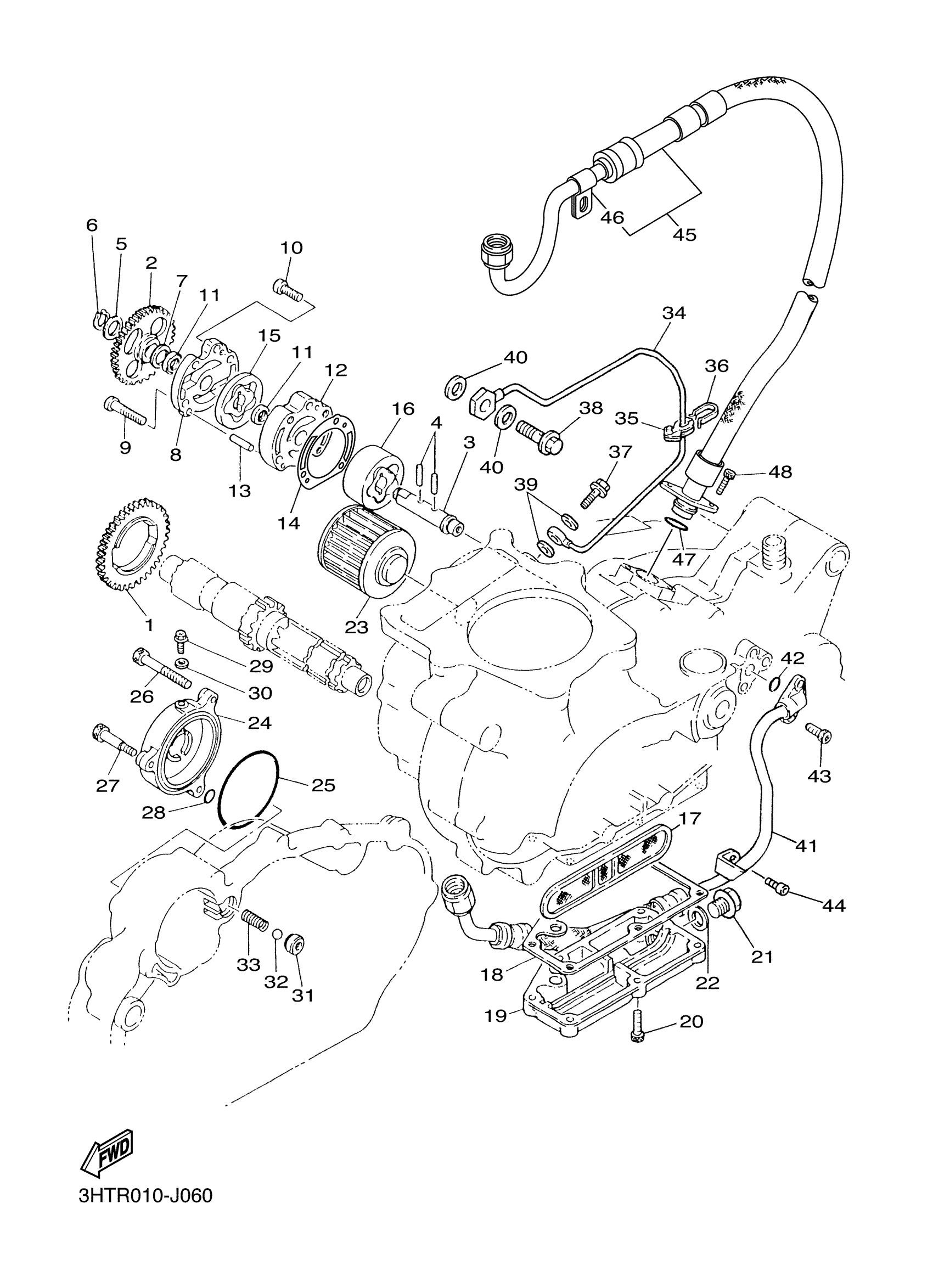

Yamaha SR400FGY (SR400) 2RD2 2015 OIL PUMP Diagram
#
1
GEAR, DRIVE
583-13324-00-00
Unavailable
2
GEAR, DRIVEN
583-13325-00-00
Unavailable
3
SHAFT, PUMP
583-13314-01-00
Unavailable
5
WASHER, PLAIN(735)
90201-10119-00
Unavailable
8
COVER, PUMP
583-13316-02-00
Unavailable
12
HOUSING, ROTOR
583-13336-02-00
Unavailable
15
ROTOR 1 ASSY
583-13310-01-00
Unavailable
16
ROTOR 2 ASSY
583-13320-00-00
Unavailable
17
STRAINER, OIL
583-13411-00-00
Unavailable
18
GASKET, STRAINER COVER
3HT-13414-00-00
Unavailable
19
COVER, STRAINER
583-13417-01-00
Unavailable
20
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
21
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
22
GASKET
214-11198-01-00
Unavailable
23
ELEMENT ASSY, OIL CLEANER
4X7-13440-90-00
Unavailable
24
COVER, ELEMENT
2J2-13447-00-00
Unavailable
25
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
26
BOLT, SOCKET
91314-06060-00
Unavailable
27
BOLT (2H0)
90109-06511-00
Unavailable
28
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
29
SCREW
90149-05018-00
Unavailable
30
GASKET
90430-05126-00
Unavailable
31
SEAT, CHECK BALL
583-13113-00-00
Unavailable
32
BALL
93503-08007-00
Unavailable
33
SPRING (583 OIL CLEANER)
90501-05378-00
Unavailable
34
PIPE, DELIVERY 1
33Y-13161-01-00
Unavailable
35
CLAMP
4X7-15485-01-00
Unavailable
36
CLIP (4X7)
90468-05113-00
Unavailable
37
BOLT, UNION
90401-08006-00
Unavailable
38
BOLT, UNION(2Y0)
90401-14097-00
Unavailable
39
GASKET
90430-08119-00
Unavailable
40
GASKET 256131670000
90430-14043-00
Unavailable
41
HOSE, OIL 1
3GW-13464-01-00
Unavailable
42
O-RING (371)
93210-10197-00
Unavailable
43
BOLT, SOCKET
91314-06016-00
Unavailable
44
BOLT,SOCKET
91317-06012-00
Unavailable
45
HOSE, OIL 2
3HT-13465-R3-00
Unavailable
46
. CLAMP
90461-10042-00
Unavailable
47
O-RING (341)
93210-15171-00
Unavailable
48
BOLT, SOCKET
91314-06016-00
Unavailable
