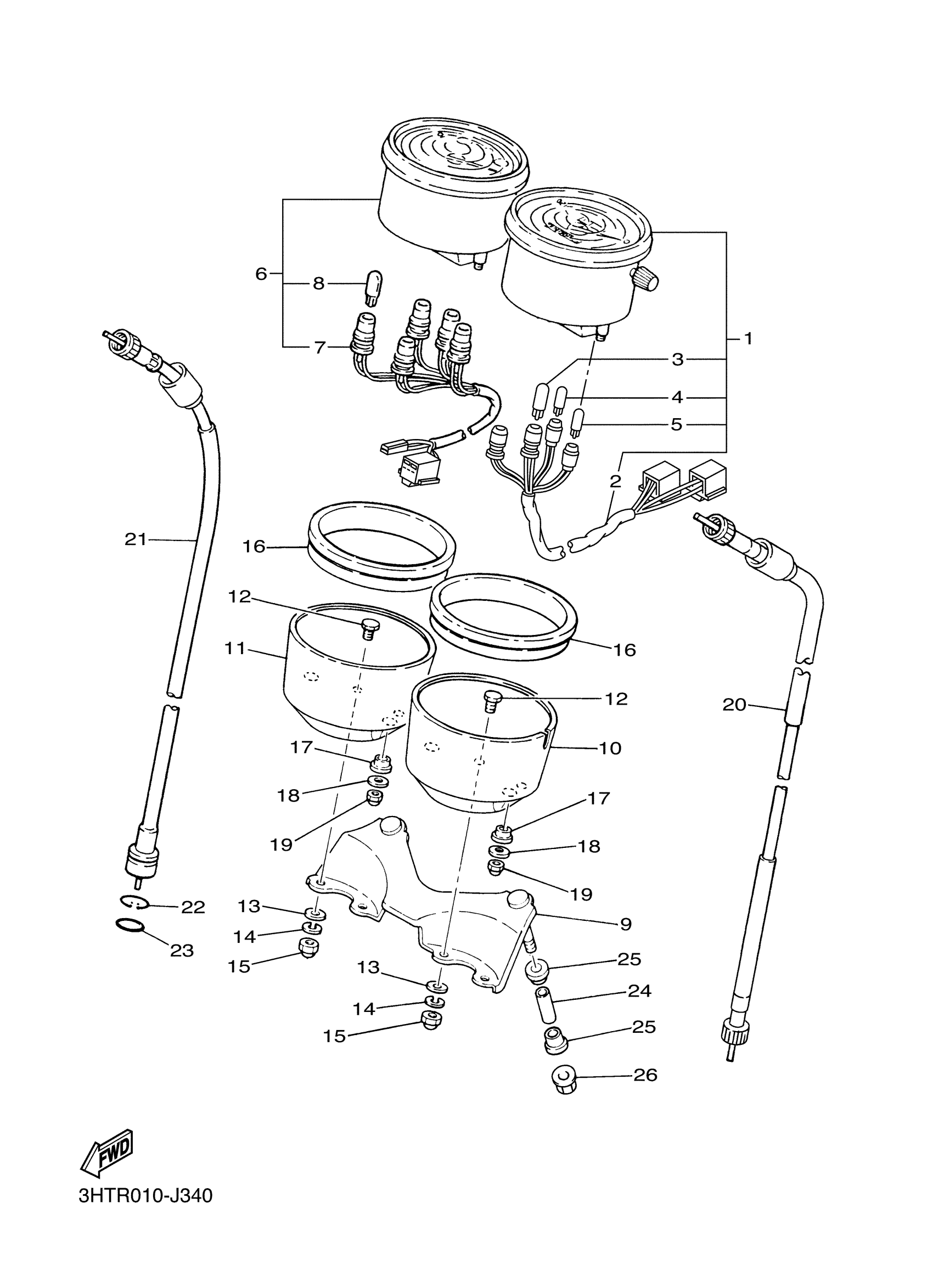

Yamaha SR400FGY (SR400) 2RD2 2015 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSY
2RD-83570-11-00
Unavailable
2
SOCKET CORD ASSY
3HT-83520-50-00
Unavailable
6
TACHOMETER ASSY
2RD-83540-20-00
Unavailable
7
SOCKET CORD ASSY
3HT-83509-50-00
Unavailable
9
BRACKET, METER
3HT-83519-00-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
16
DAMPER
3H3-83513-00-00
Unavailable
17
DAMPER, METER COVER FITTING
584-83523-00-00
Unavailable
18
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
19
NUT (CROWN)
95303-05800-00
Unavailable
20
SPEEDOMETER CABLE ASSY
3HT-83550-01-00
Unavailable
21
TACHOMETER CABLE ASSY
2J2-83560-10-00
Unavailable
22
RING, STOP
102-25137-00-00
Unavailable
23
O-RING (26H)
93210-14579-00
Unavailable
24
COLLAR (877)
90387-06249-00
Unavailable
25
DAMPER
1JK-83541-00-00
Unavailable
26
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
