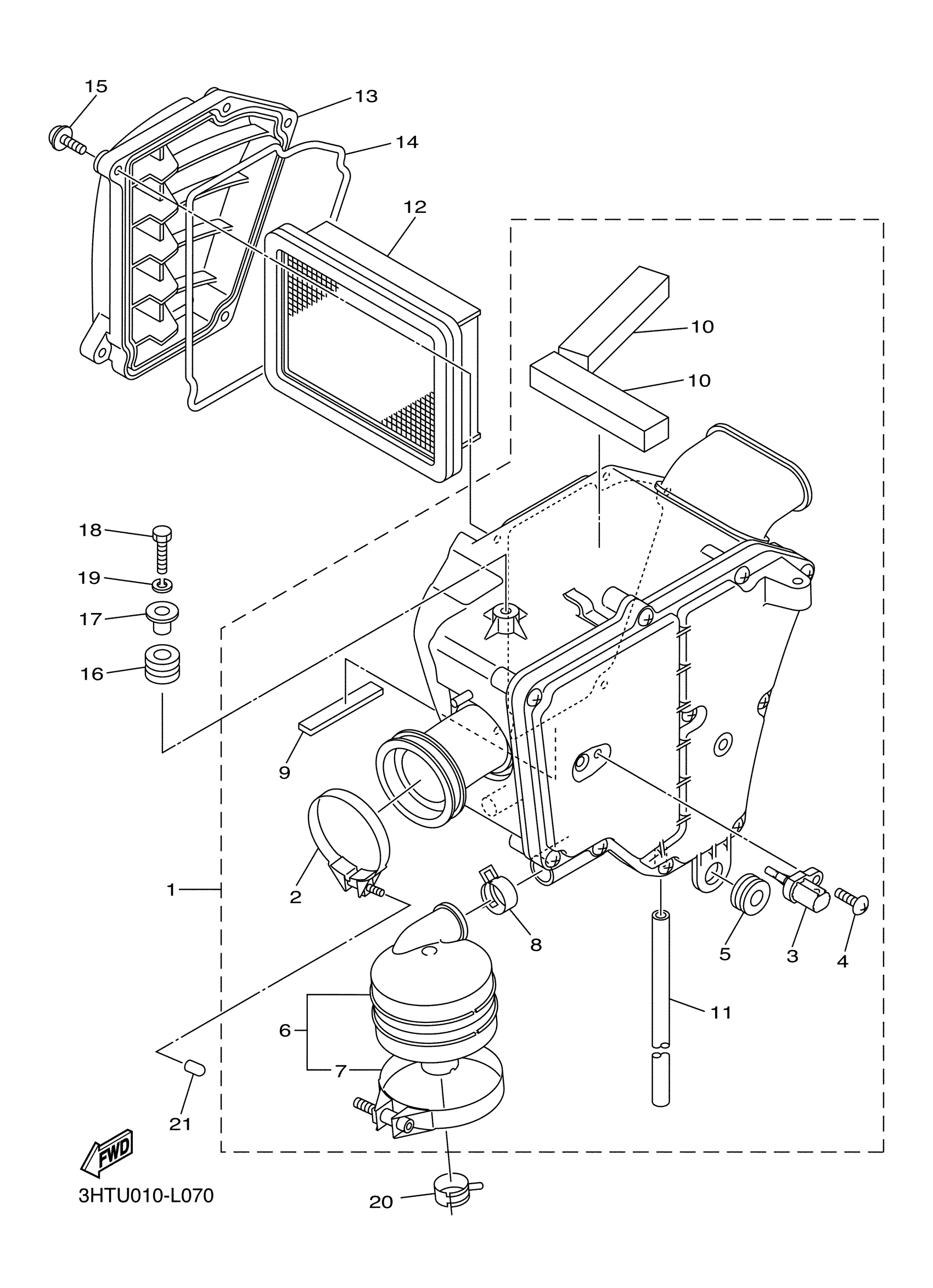

Yamaha SR400FGY (SR400) 2RD2 2015 INTAKE Diagram

#

Description
Price

1

AIR CLEANER CASE ASSY

3HT-14401-R0-00

Unavailable

2

HOSE CLAMP ASSY

90450-55003-00

$5.60

3

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

4

SCREW, BIND(3XC)

98904-05012-00

$1.71

5

GROMMET (16R)

90480-14329-00

$8.49

6

BREATHER ASSY

3HT-15370-R0-00

Unavailable

7

HOSE CLAMP ASSY

90450-73002-00

$10.49

8

CLIP(MG5)

90467-20154-00

$1.43

9

DAMPER 1

3HT-14425-R0-00

Unavailable

10

DAMPER 2

3HT-14426-R0-00

Unavailable

11

HOSE (L450)

90445-10144-00

$7.49

12

ELEMENT, AIR CLEANER

4B5-14451-00-00

$36.99

13

COVER, CLEANER CASE 1

3HT-1441A-R1-00

$31.99

14

SEAL

3HT-14462-R0-00

Unavailable

15

SCREW, BIND

98902-05020-00

$1.71

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

COLLAR 437216330000

90387-07391-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

CLIP(MG5)

90467-20154-00

$1.43

21

CAP

895-14169-00-00

Unavailable
