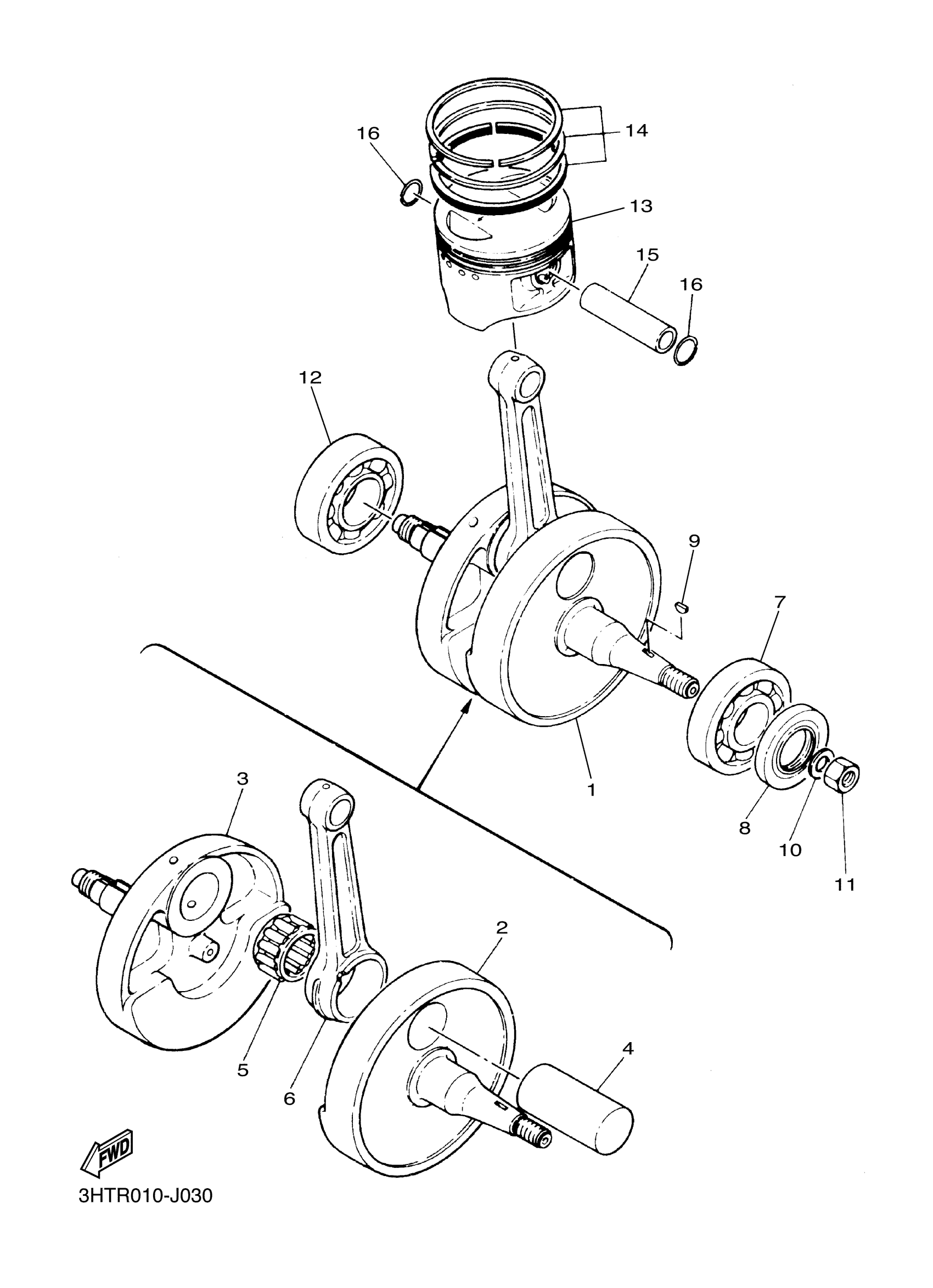

Yamaha SR400FGY (SR400) 2RD2 2015 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

2H6-11400-01-00

Unavailable

CRANK (L.H)

2H6-11412-00-00

Unavailable

CRANK 2

2H6-11422-01-00

Unavailable

PIN, CRANK 1

583-11681-01-00

$63.99

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

$76.99

ROD, CONNECTING

2H6-11651-00-00

Unavailable

BEARING(3KW)

93306-30630-00

$73.99

OIL SEAL (30X60X6-583)

93102-30145-00

$13.99

KEY, WOODRUFF

90280-05001-00

$12.49

WASHER, PLATE (583)

90201-12593-00

$9.49

NUT(55K)

90170-12347-00

$10.49

BEARING (3GV)

93306-30702-00

$74.99

PISTON (STD)

2H6-11631-01-96

Unavailable

PISTON RING SET

583-11610-02-00

$73.99

PIN, PISTON

2J2-11633-01-00

Unavailable

CIRCLIP 341116340000

93450-22027-00

Unavailable
