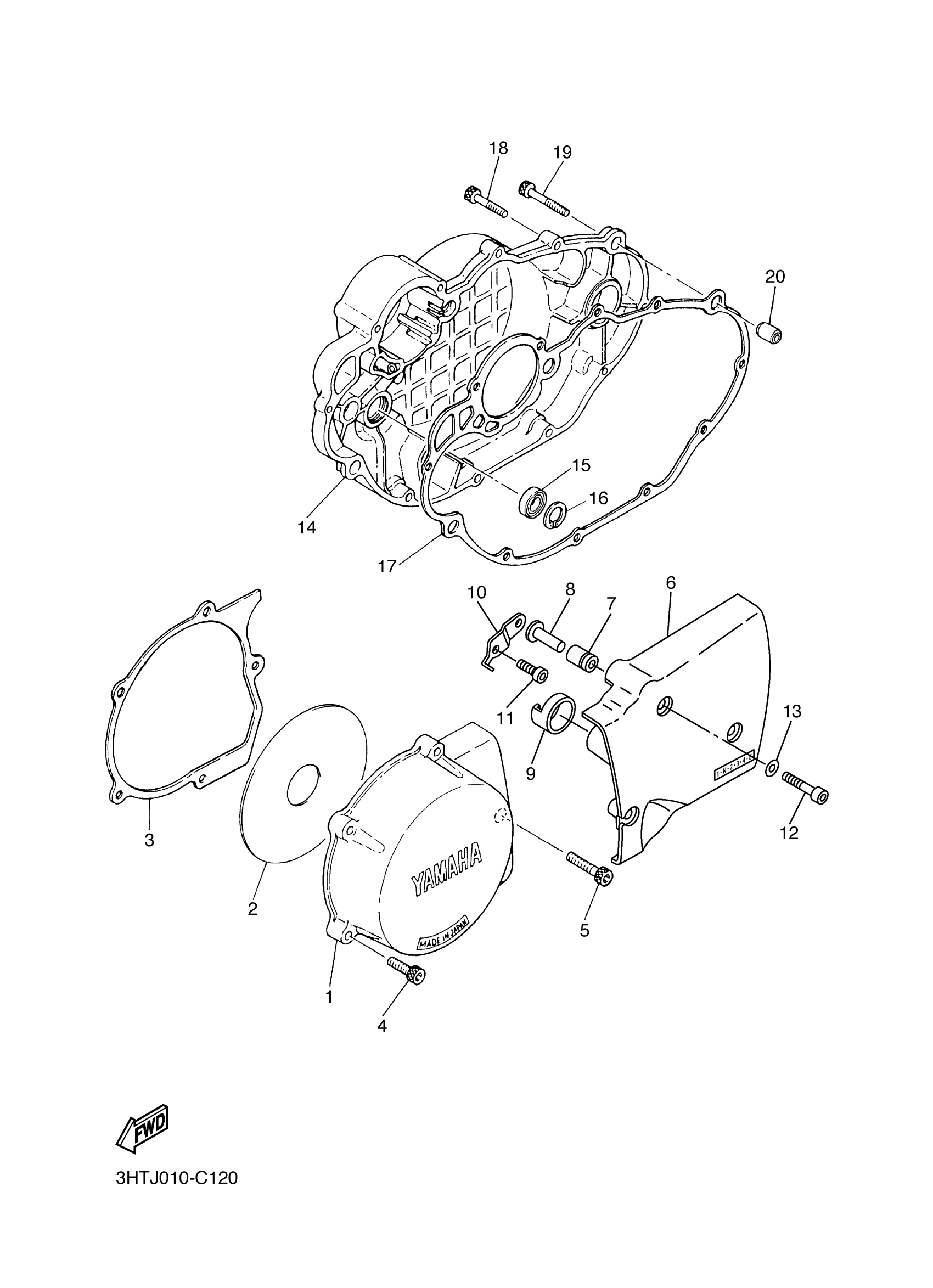

Yamaha SR400FGY (SR400) 2RD2 2015 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3GW-15411-00-00

Unavailable

2

DAMPER, ENGINE MOUNT 2

3HT-15326-00-00

Unavailable

3

GASKET, CRANKCASE COVER 1

3GW-15451-00-00

$9.99

4

BOLT,SOCKET HEAD

91314-06025-00

$8.49

5

BOLT, SOCKET

91314-06035-00

$8.49

6

COVER, CRANKCASE 2

3HT-15421-10-00

Unavailable

7

GROMMET

3HT-15486-01-00

Unavailable

8

COLLAR(3GM)

90387-0609L-00

Unavailable

9

SEAL

3HT-15663-00-00

Unavailable

10

STAY 1

3HT-15544-00-00

Unavailable

11

BOLT,SOCKET

91317-06012-00

$8.49

12

BOLT, SOCKET

91314-06035-00

$8.49

13

WASHER, PLATE

90201-06049-00

Unavailable

14

COVER, CRANKCASE (R.H)

2J2-W1542-00-00

Unavailable

15

OIL SEAL (14X25X5.5-583)

93101-14089-00

$12.49

16

CIRCLIP

99009-25500-00

Unavailable

17

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

Unavailable

18

BOLT, SOCKET

91314-06030-00

Unavailable

19

BOLT, SOCKET

91314-06040-00

Unavailable

20

PIN, DOWEL(J38)

91812-16001-00

Unavailable
