1975 Yamaha SR292 Track Drive Diagram

← All diagrams

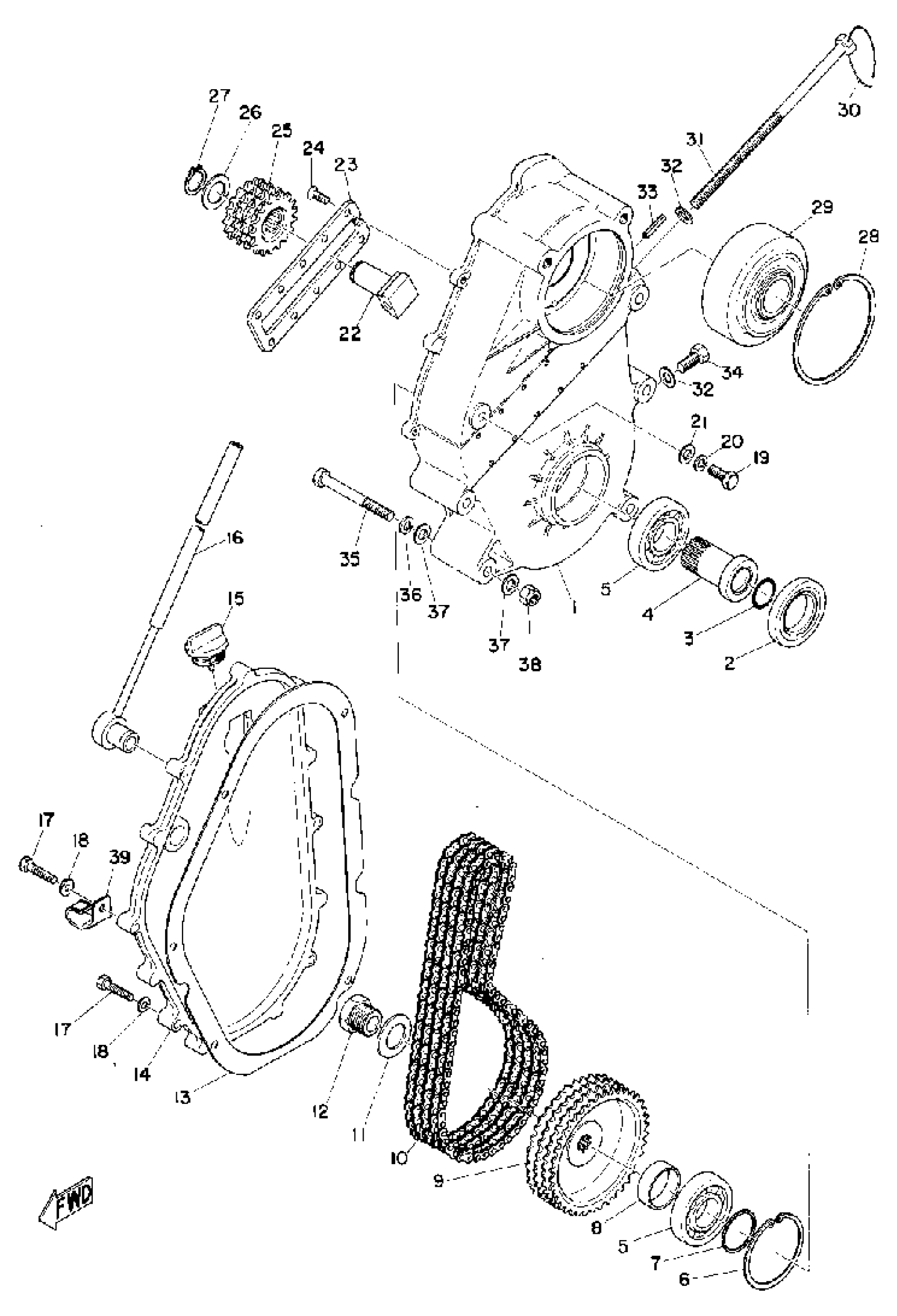

Find the part on the Track Drive diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(856-47541-00-00)

1
Out of stock

2

OIL SEAL, SD-TYPE

(93102-40101-00)

1
Out of stock

3

O-RING (437)

93210-24235-00

1

$5.72

In stock

4

JOURNAL 1

(835-47571-00-00)

1
Out of stock

5

BEARING (B6007)

93306-00701-00

1
Out of stock

6

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

(90387-35207-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-00-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-10-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-20-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-30-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-40-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-50-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-60-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-70-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(856-47587-80-00)

1
Out of stock

10

CHAIN 856

(94860-35070-00)

1
Out of stock

10

CHAIN 856

(94860-35072-00)

1
Out of stock

10

CHAIN 856

(94860-35074-00)

1
Out of stock

10

CHAIN 856

(94860-35076-00)

1
Out of stock

10

CHAIN

(94860-35078-00)

1
Out of stock

10

CHAIN 856

(94860-35080-00)

1
Out of stock

11

SPRING, BELLEVILLE

821-47582-00-00

1
Out of stock

12

BOLT (802-47553-00)

90109-24202-00

1
Out of stock

13

GASKET

856-47544-00-00

1
Out of stock

14

CAP, HOUSING

(856-47543-00-00)

1
Out of stock

15

CAP 2

857-47559-00-00

1
Out of stock

16

BREATHER

(857-47586-00-00)

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

TENSIONER

(856-47611-00-00)

1
Out of stock

23

HOLDER

(856-47613-00-00)

1
Out of stock

24

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

25

WHEEL

(856-47612-00-00)

1
Out of stock

26

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

27

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

28

CIRCLIP

(93421-00033-00)

1
Out of stock

29

BEARING

(93306-00604-00)

1
Out of stock

30

WIRE

(90580-10001-00)

1
Out of stock

31

BOLT, HEAD W/HOLE

(90103-08011-00)

1
Out of stock

32

WASHER (821)

90210-08002-00

—

$5.68

In stock

33

PIN, SPRING

(91609-30024-00)

1
Out of stock

34

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

35

BOLT,HEXAGON

97027-08080-00

—

$3.37

In stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

37

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

38

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

39

CLAMP (706)

90465-06100-00

—
Out of stock
