1975 Yamaha SR292 Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

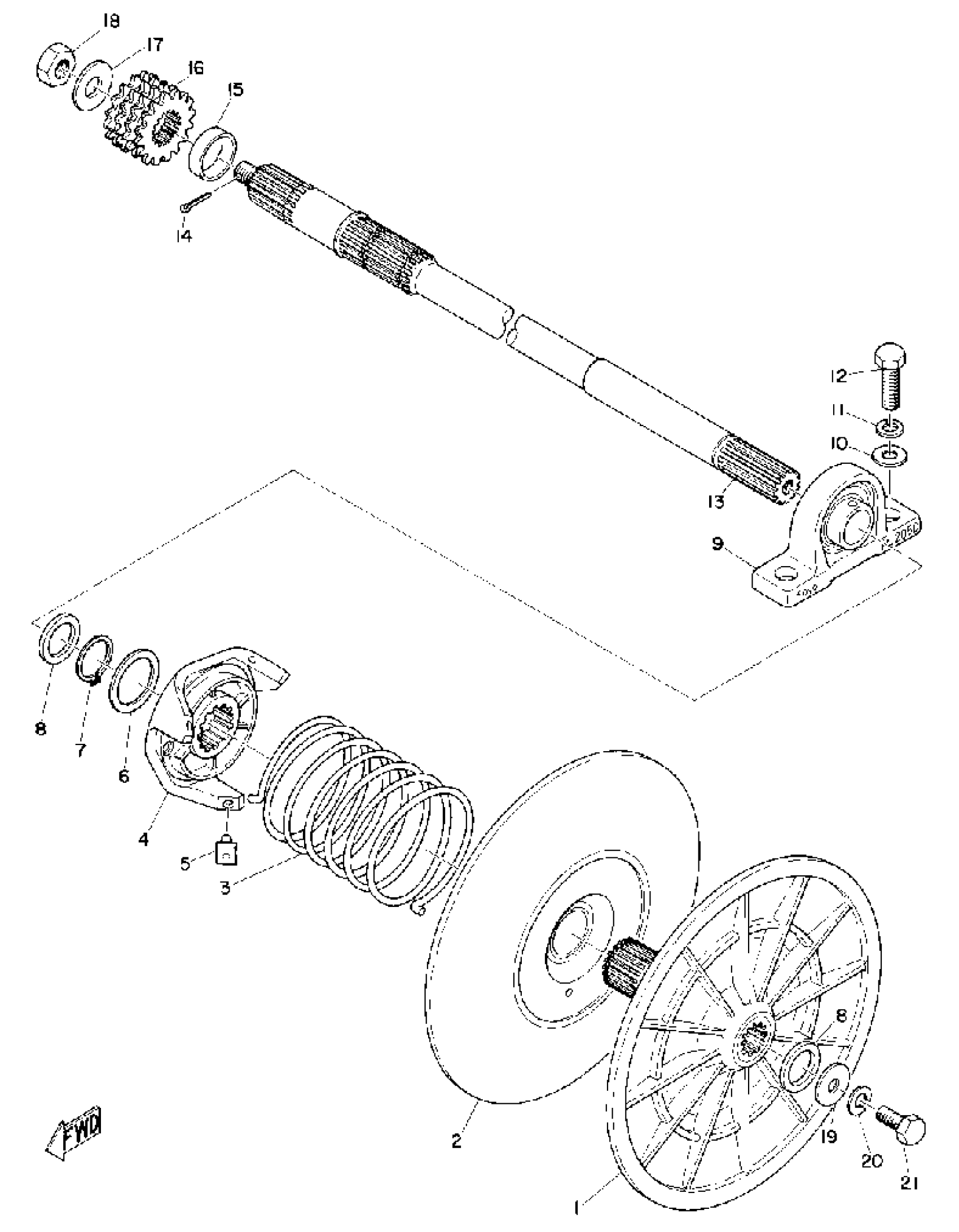

1975 Yamaha SR292 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHV

(856-17660-00-00)

1
Out of stock

2

SEC SLIDING SHEAVE

(856-17670-00-00)

1
Out of stock

3

SPRING, TORSION

(90508-50082-00)

1
Out of stock

3

SPRING, TORSION (856-17683-00)

90508-50210-00

1
Out of stock

4

SEAT, SEC SPRING

(856-17684-00-00)

1
Out of stock

5

SHOE, RAMP

801-17688-10-00

1

$4.15

In stock

6

SHIM (856-17687-00)

90564-34003-00

1
Out of stock

7

CIRCLIP(86F)

93440-34170-00

1

$6.86

In stock

8

COLLAR, DISTANCE 1

(856-17685-00-10)

1
Out of stock

8

COLLAR, DISTANCE 1

856-17685-00-20

1
Out of stock

8

COLLAR, DISTANCE 1

(856-17685-00-50)

1
Out of stock

9

BEARING HSNG ASSEMBLY

(856-47630-00-00)

1
Out of stock

10

1

$3.00

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

BOLT(N02)

97070-10035-00

1

$11.38

In stock

13

SHAFT, SECONDARY

(856-17681-01-00)

1
Out of stock

14

PIN, COTTER

91490-30030-00

—

$7.15

In stock

15

COLLAR

(90387-30002-00)

1
Out of stock

16

SPRKT, CHAIN DR 15T

(856-17682-50-00)

1
Out of stock

16

SPRKT, CHAIN DR 16T

(856-17682-60-00)

1
Out of stock

16

SPRKT, CHAIN DR 18T

(856-17682-80-00)

1
Out of stock

16

SPRKT, CHAIN DR 19T

(856-17682-90-00)

1
Out of stock

16

SPROCKET, CHAIN DR

(856-17693-00-00)

1
Out of stock

16

SPROCKET, CHAIN DR

(856-17693-10-00)

1
Out of stock

17

WASHER, PLATE

90201-14319-00

1
Out of stock

18

NUT(6TC)

95337-14600-00

—

$10.25

In stock

19

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

20

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

21

BOLT(6TD)

97017-10025-00

—

$6.82

In stock
