Description

Price

1

CDI MAGNETO ASSEMBLY

(856-85500-10-00)

Unavailable

1

COIL, CHARGE

(856-85541-10-00)

Unavailable

2

. SPACER

647-81318-10-00

Unavailable

3

SCREW, PAN

98507-05035-00

$8.49

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

COIL PULSER

(856-85543-10-00)

Unavailable

6

SCREW, PAN HEAD

110-81346-21-00

$5.49

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

9

LEAD WIRE ASSEMBLY

(856-85515-10-00)

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

CLAMP, LEAD

(363-85528-10-00)

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

ROTOR ASSEMBLY

(856-85550-10-00)

Unavailable

15

SCREW, PAN

98507-06014-00

Unavailable

16

NUT

90170-16425-00

Unavailable

17

WASHER(JN5)

92907-16100-00

Unavailable

18

WASHER, PLATE (32N)

90201-163G6-00

Unavailable

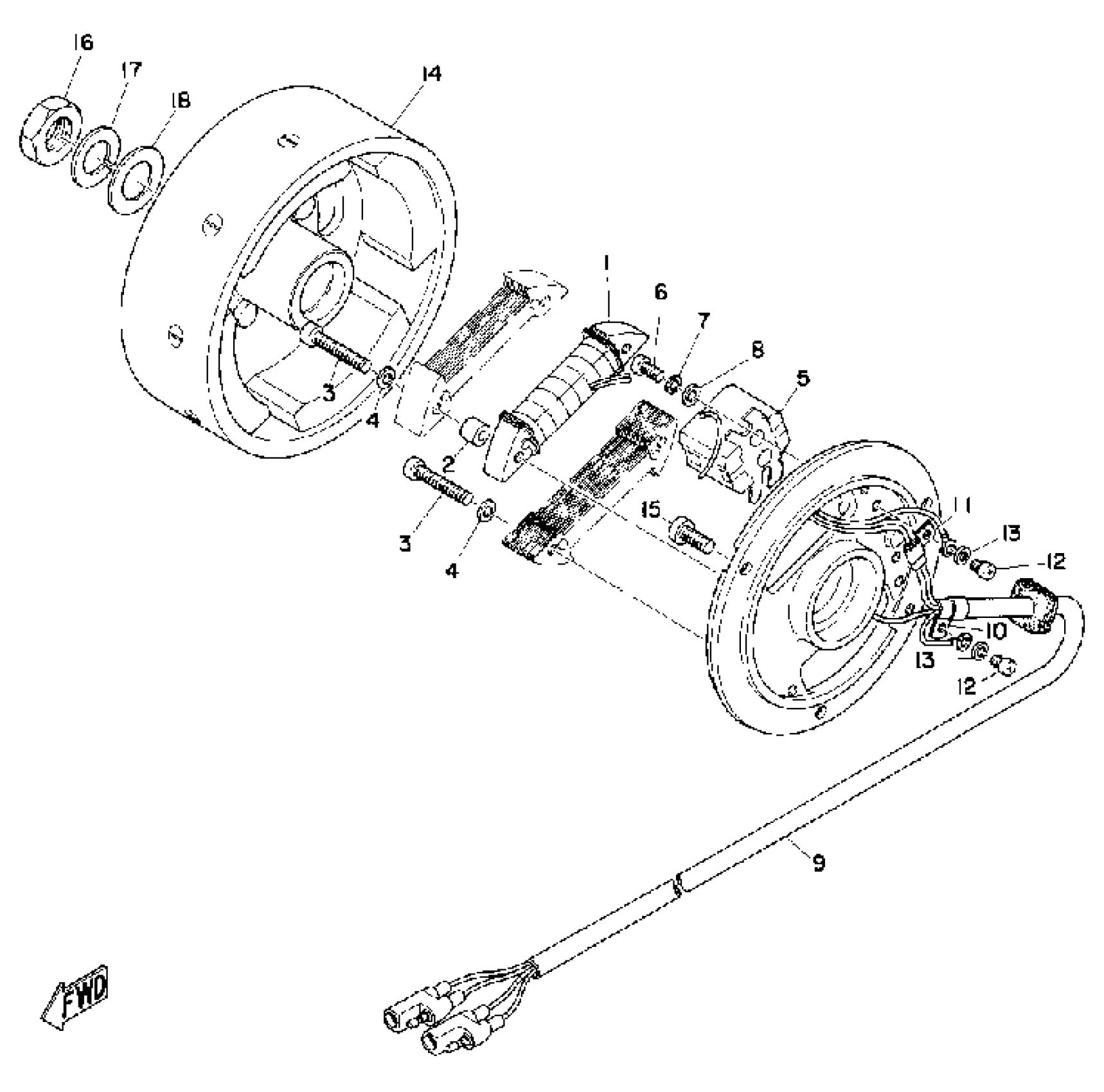

Yamaha SR292 1975 CDI MAGNETO Diagram

CDI MAGNETO ASSEMBLY

COIL, CHARGE

. SPACER

SCREW, PAN

YBS67-5 WASHER, SPRING

COIL PULSER

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

YBS66-4 WASHER, PLAIN

LEAD WIRE ASSEMBLY

. CLAMP

CLAMP, LEAD

SCREW, PAN HEAD(3XP)

YBS67-4 WASHER, SPRING

ROTOR ASSEMBLY

SCREW, PAN

NUT

WASHER(JN5)

WASHER, PLATE (32N)
