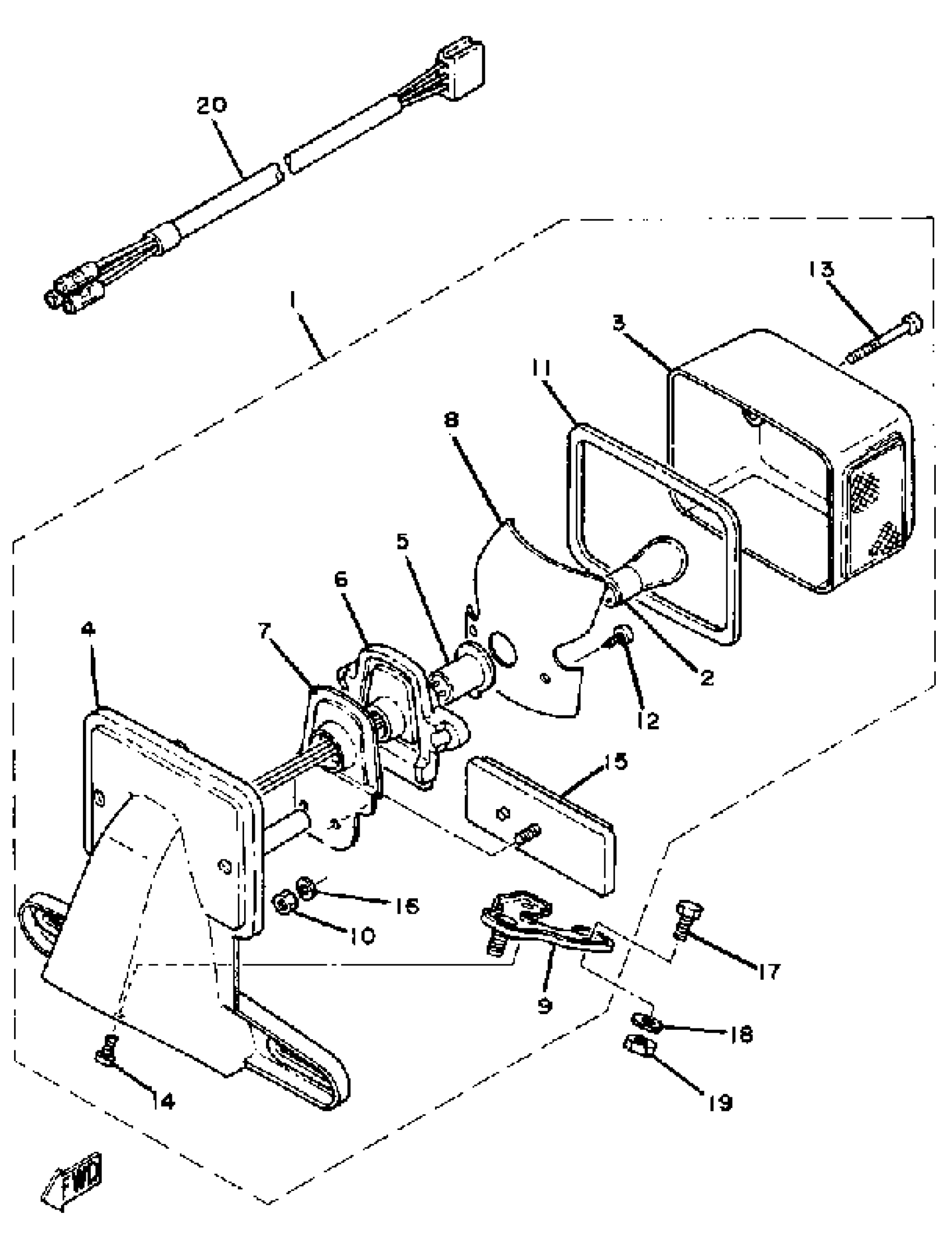

Yamaha SR250TH (SR250TH) 1981 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

3Y6-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

4

BRACKET, LICENCE

3Y6-84751-00-00

Unavailable

5

. SOCKET CORD ASSEMBLY

3Y1-84536-00-00

Unavailable

6

DAMPER

(3Y1-83527-00-00)

Unavailable

7

HOLDER, BASE SEAT

(3Y6-84713-00-00)

Unavailable

8

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

Unavailable

9

BOLT, FITTING

(3Y6-84752-00-00)

Unavailable

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

SEAL

1VJ-14462-00-00

$18.49

12

SCREW, TAPPING

97780-40116-00

Unavailable

13

SCREW, LENS FITTING

3Y1-84524-00-00

$7.99

14

SCREW, BIND

98980-04008-00

Unavailable

15

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

CORD, TAILLIGHT

(3Y6-84717-00-00)

Unavailable
