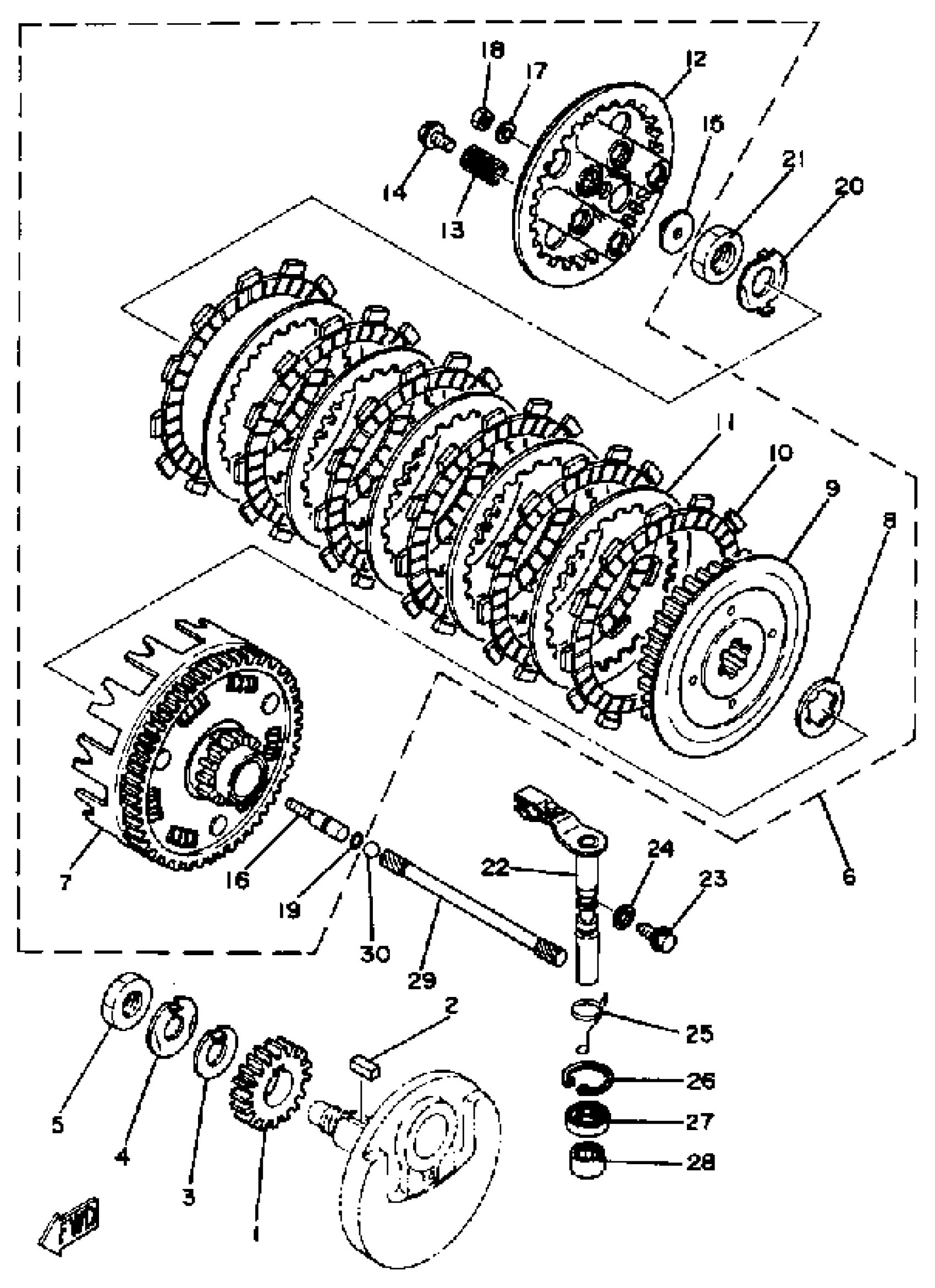

Yamaha SR250TH (SR250TH) 1981 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

(3Y6-16111-02-00)

Unavailable

2

KEY, STRAIGHT (3Y6)

90282-07041-00

Unavailable

3

WASHER, LOCK (3Y1)

90215-16156-00

$7.49

4

WASHER, LOCK (30X)

90215-16222-00

$9.49

5

NUT(24V)

90170-16343-00

$14.99

6

CLUTCH ASSEMBLY

(3Y6-16300-01-00)

Unavailable

7

PRI DRVN GEAR

(3Y6-16150-01-00)

Unavailable

8

. PLATE, THRUST 1

3Y1-16154-00-00

Unavailable

9

BOSS, CLUTCH

3Y1-16371-00-00

Unavailable

10

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

11

PLATE, CLUTCH 2

360-16325-10-00

$35.99

12

PLATE, PRESSURE 1

3Y1-16351-00-00

$45.99

13

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

14

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

15

PLATE, PUSH

1W1-16358-01-00

$23.99

16

ROD, PUSH 1

3Y1-16356-01-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

O-RING (26H)

93210-06632-00

Unavailable

20

WASHER, LOCK (3Y1)

90215-20159-00

Unavailable

21

NUT (34L)

90170-20327-00

Unavailable

22

PUSH LEVER ASSY

3Y1-16380-01-00

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

25

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

26

CIRCLIP (3Y1)

93420-28055-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

ROD, PUSH 2

3Y6-16357-00-00

Unavailable

30

BALL (498)

93511-32027-00

Unavailable
