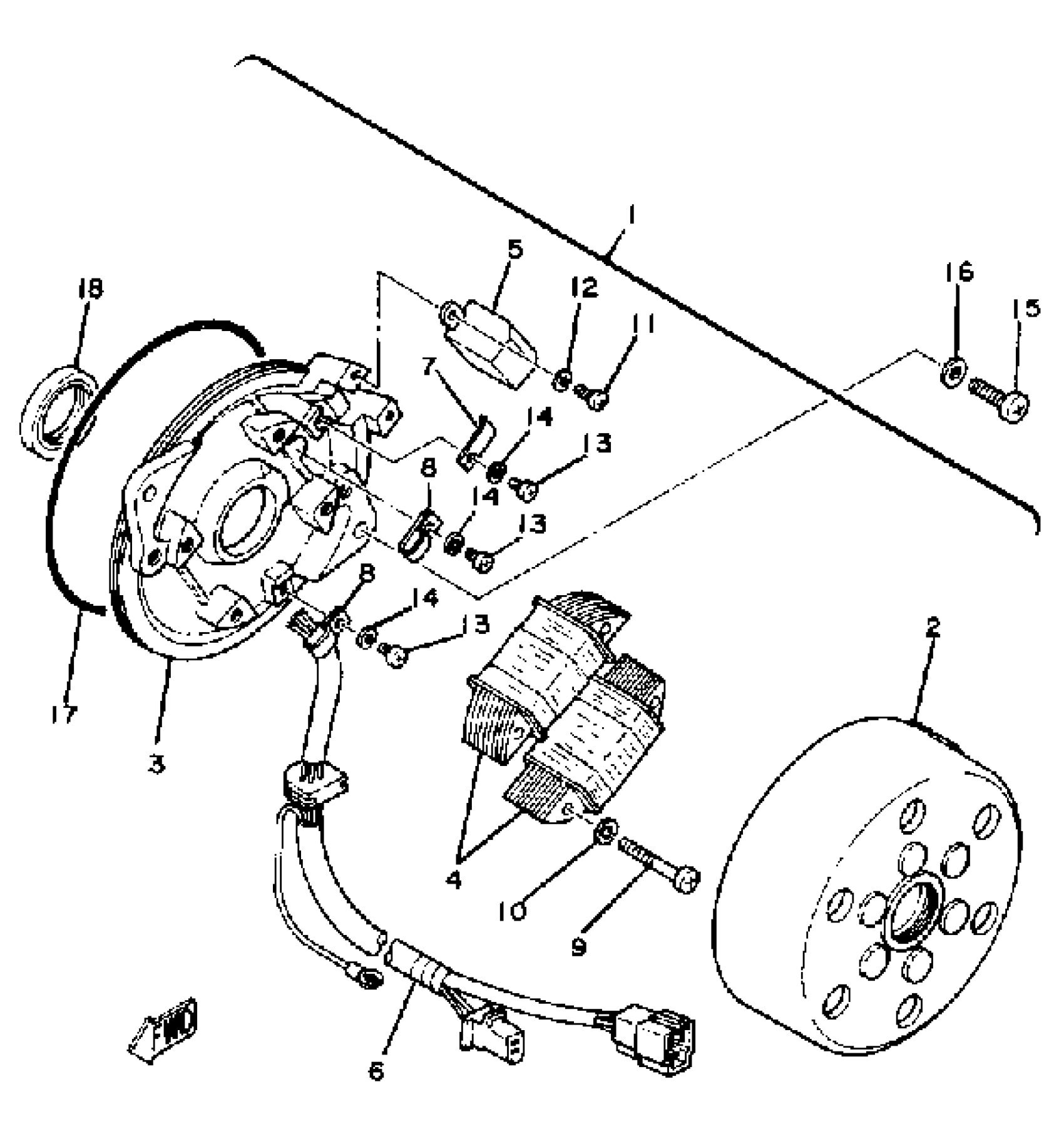

Yamaha SR250TH (SR250TH) 1981 AC GENERATOR Diagram

#

Description
Price

1

AC MAGNET GEN ASSEMBLY

(3Y6-81400-10-00)

Unavailable

2

ROTOR ASSEMBLY

(3Y6-81450-10-00)

Unavailable

3

BASE ASSEMBLY

(3Y6-81409-10-00)

Unavailable

4

. COIL, LIGHTING

3Y6-81413-10-00

Unavailable

5

. COIL, PULSER

3Y6-81416-10-00

Unavailable

6

LEAD WIRE ASSEMBLY

(3Y6-81415-10-00)

Unavailable

7

CLAMP, LEAD 1

(3Y6-81443-10-00)

Unavailable

8

CLAMP, LEAD 2

(3Y6-81444-10-00)

Unavailable

9

SCREW, PAN

98507-05035-00

$8.49

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW PAN HEAD

98580-06020-00

$8.49

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

O-RING (3Y2)

93211-19413-00

Unavailable

18

OIL SEAL (3Y1)

93102-25226-00

Unavailable
