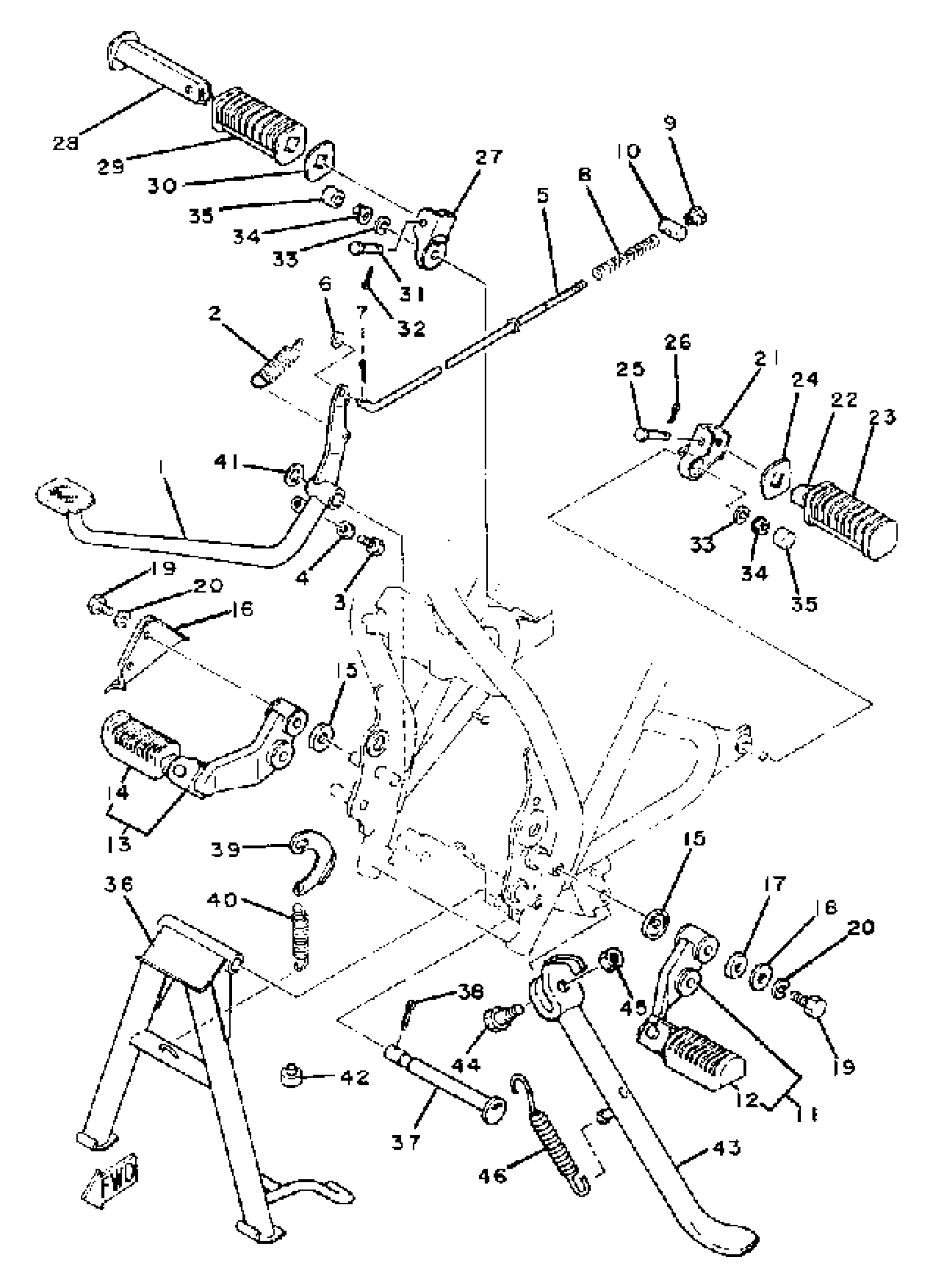

Yamaha SR250J (SR250J) 1982 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3Y6-27211-00-93

Unavailable

2

SPRING TENSION 137272160000

90506-23045-00

$2.82

3

SCREW 341272170000

90153-06008-00

$7.49

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

ROD, BRAKE

3Y6-27231-00-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PIN, COTTER

91490-20025-00

$1.99

8

SPRING, (180-27236-00)

90501-10245-00

$8.49

9

NUT (25K)

90179-06411-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

FRONT FOOTREST ASSY (L.H)

3Y6-27410-00-R4

$83.99

12

COVER, FOOTREST

4L0-27423-00-00

$49.99

13

FRONT FOOTREST ASSY (R.H)

3Y6-27420-00-R4

Unavailable

14

COVER, FOOTREST

4L0-27423-00-00

$49.99

15

WASHER, PLATE (1L9)

90209-12157-00

Unavailable

16

PROTECTOR

(3Y6-27491-00-00)

Unavailable

17

WASHER, PLATE (3Y6)

90201-083A6-00

Unavailable

18

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

19

BOLT, HEXAGON

97013-08016-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

BRACKET 1

3Y6-27432-00-00

Unavailable

22

FOOTREST, REAR 1

447-27431-00-00

Unavailable

23

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

24

WASHER 447274370000

90209-18070-00

Unavailable

25

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

26

PIN, COTTER

91490-16020-00

Unavailable

27

BRACKET 2

3Y6-27442-00-00

Unavailable

28

FOOTREST, REAR 2

447-27441-00-00

Unavailable

29

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

30

WASHER 447274370000

90209-18070-00

Unavailable

31

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

34

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

35

CAP, TOOL BOX

262-21399-00-00

Unavailable

36

STAND, MAIN

3Y6-27111-01-R4

Unavailable

37

SHAFT, MAIN STAND

3Y6-27112-00-00

Unavailable

38

PIN, COTTER

91490-30030-00

Unavailable

39

LINK, MAIN STAND

3Y6-27115-00-00

Unavailable

40

SPRING TENSION 174271160000

90506-32056-00

Unavailable

41

WASHER (3XVC)

90201-153A1-00

Unavailable

42

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

43

STAND, SIDE

5V0-27311-00-R4

Unavailable

44

BOLT

90109-10635-00

Unavailable

45

NUT, U

90185-10037-00

Unavailable

46

SPRING (460)

90507-29009-00

Unavailable
