1982 Yamaha SR250J (SR250J) Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1982 Yamaha SR250J (SR250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

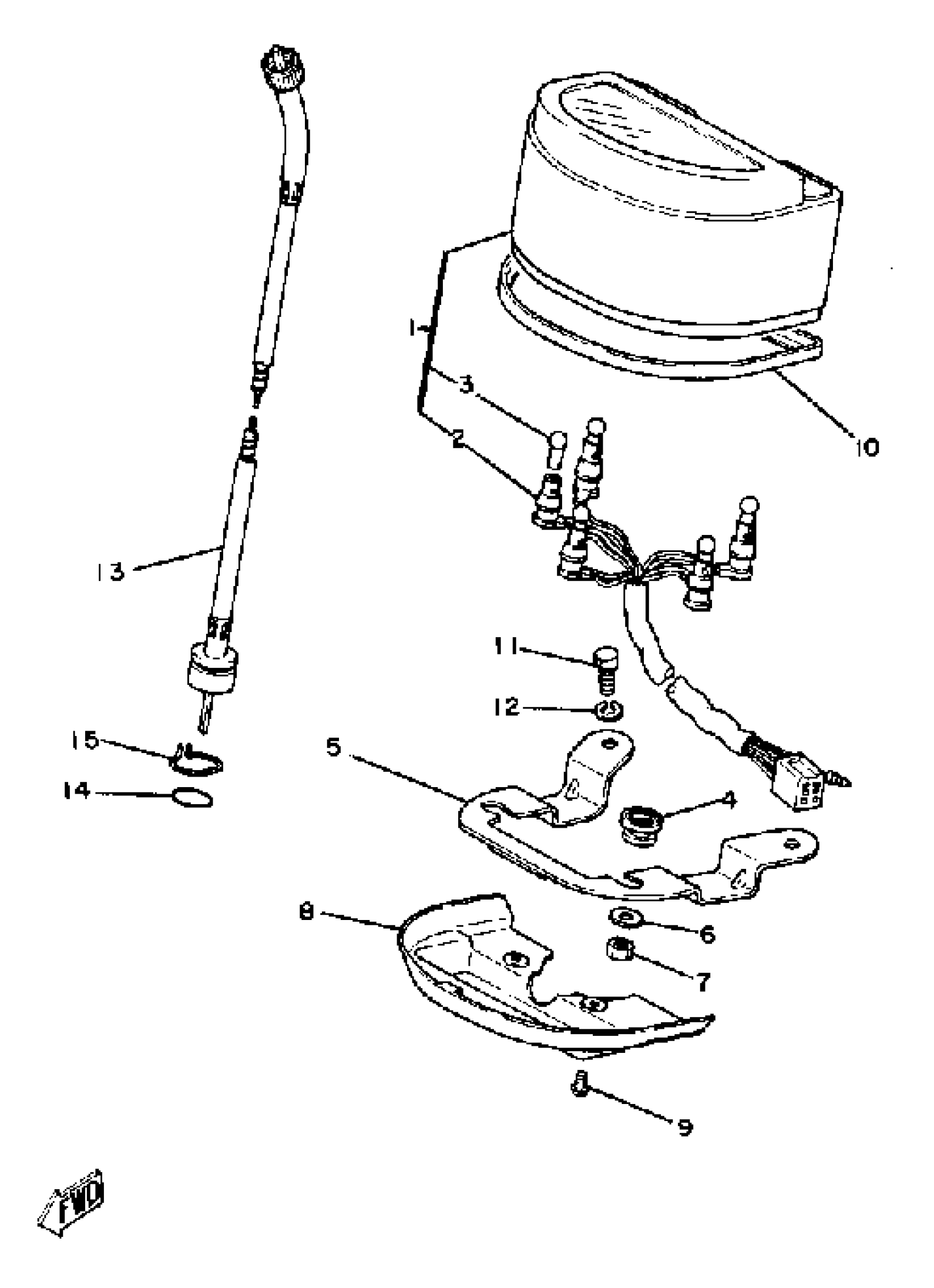

1982 Yamaha SR250J (SR250J) Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

8Y6-83510-A0-00

1
Out of stock

2

SOCKET CORD ASSEMBLY

(3Y6-83509-00-00)

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

DAMPER

(3Y6-83513-00-00)

1
Out of stock

5

BRACKET, METER

(3Y6-83519-00-00)

1
Out of stock

6

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

CASE, SPDMTR LOWER

(3Y6-83572-00-00)

1
Out of stock

9

SCREW, TAPPING

(3Y6-83549-00-00)

1
Out of stock

10

RING, SPEED METER

(3Y6-83512-00-00)

1
Out of stock

11

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

SPEEDOMETER CABLE ASSY

3Y6-83550-01-00

—

$17.94

In stock

14

O-RING (26H)

93210-14579-00

1

$5.69

In stock

15

RING, STOP

102-25137-00-00

1
Out of stock
