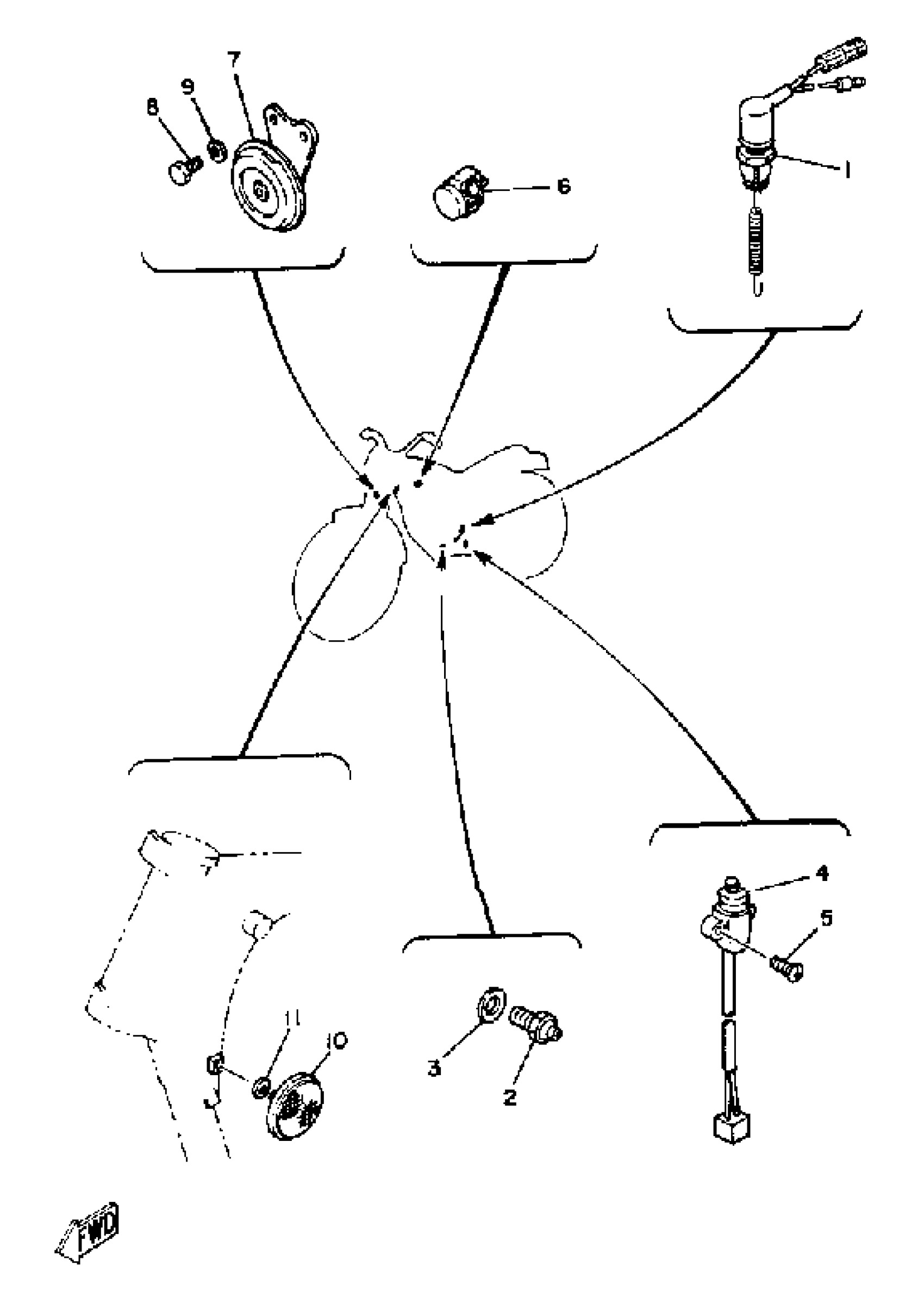

Yamaha SR250J (SR250J) 1982 ELECTRICAL 2 Diagram

#

Description
Price

1

STOP SWITCH ASSY

2F1-82530-03-00

Unavailable

2

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$31.28

3

GASKET (5R6)

90430-10171-00

$2.52

4

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

5

SCREW, FLAT

98707-05016-00

$5.23

6

FLASHER RELAY ASSY

3Y6-83350-71-00

Unavailable

7

HORN

3Y6-83371-00-00

$39.26

8

BOLT(3JP)

97017-06010-00

$2.44

9

WASHER, SPRING

92995-06100-00

$2.95

10

REFLECTOR, FRONT 1

355-85111-01-00

$26.93

11

WASHER, PLATE(3AJ)

90202-05191-00

$5.77
