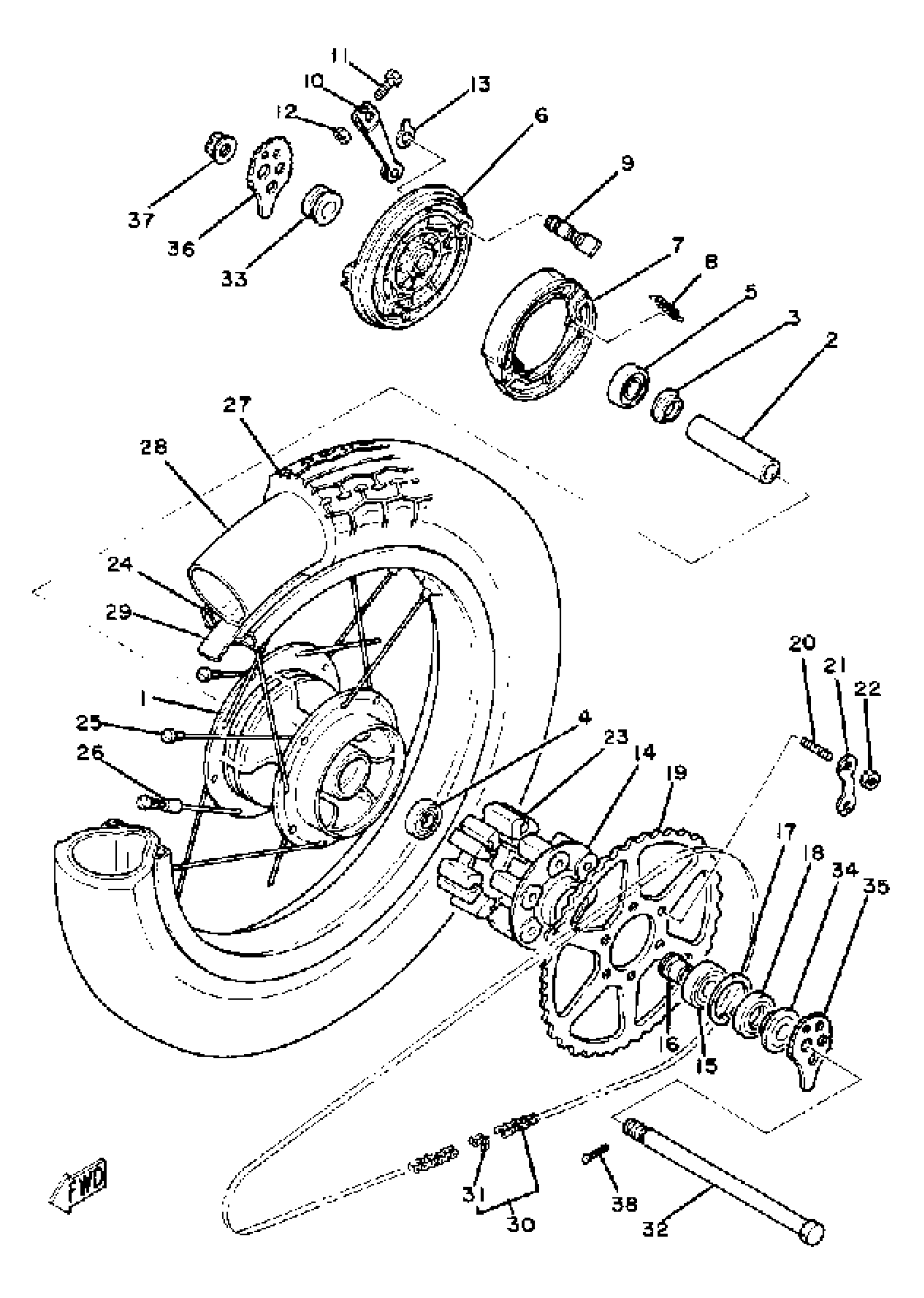

Yamaha SR250J (SR250J) 1982 REAR WHEEL Diagram

HUB, REAR

3Y6-25311-00-38

Unavailable

SPACER

90560-17311-00

Unavailable

FLANGE, SPACER

146-25315-00-00

$7.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

PLATE, BRAKE SHOE

3Y6-25321-01-00

Unavailable

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

4GL-25351-00-00

$68.99

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95380-06600-00

Unavailable

PLATE

3Y6-2533A-01-00

$5.49

CLUTCH, HUB

3Y1-25366-00-98

Unavailable

BEARING(1YW)

93306-20461-00

$39.99

COLLAR, WHEEL

3Y1-25377-00-00

Unavailable

CIRCLIP(48Y)

99009-47500-00

Unavailable

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

SPROCKET, DRIVN 46T

3Y1-25446-10-00

Unavailable

BOLT, STUD (483)

90116-08218-00

Unavailable

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

NUT (3Y2)

90170-08258-00

Unavailable

DAMPER

3Y1-25364-00-00

Unavailable

RIM (16X2.15-1.5)

94421-16002-00

Unavailable

SPOKE SET, REAR

3Y6-25304-00-00

Unavailable

UNAVAILABLE IN PRICE BOOK

156-25398-00-

Unavailable

120/90-16 63P Y955

(94112-16430-00)

Unavailable

TUBE(3Y9)

94212-16295-00

Unavailable

BAND, RIM

94330-16058-00

Unavailable

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

Unavailable

JOINT, CHAIN

94681-68001-00

Unavailable

AXLE,WHEEL

150-25381-01-00

Unavailable

COLLAR(3SX)

90387-170X9-00

Unavailable

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

PULLER, CHAIN 2

3Y1-25389-00-00

Unavailable

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
